BiLevel-based DOE on the Sobieski SSBJ test case

from __future__ import annotations

from copy import deepcopy
from os import name as os_name

from gemseo import configure_logger
from gemseo import create_discipline
from gemseo import create_scenario
from gemseo import execute_post
from gemseo.problems.mdo.sobieski.core.design_space import SobieskiDesignSpace

configure_logger()

<RootLogger root (INFO)>

Instantiate the disciplines

First, we instantiate the four disciplines of the use case: SobieskiPropulsion, SobieskiAerodynamics, SobieskiMission and SobieskiStructure.

propu, aero, mission, struct = create_discipline([
    "SobieskiPropulsion",
    "SobieskiAerodynamics",
    "SobieskiMission",
    "SobieskiStructure",
])

Build, execute and post-process the scenario

Then, we build the scenario which links the disciplines with the formulation and the optimization algorithm. Here, we use the BiLevel formulation. We tell the scenario to minimize -y_4 instead of minimizing y_4 (range), which is the default option.

We need to define the design space.

design_space = SobieskiDesignSpace()

Then, we build a sub-scenario for each strongly coupled disciplines.

Build a sub-scenario for Propulsion

This sub-scenario will minimize SFC.

sc_prop = create_scenario(
    propu,
    "y_34",
    design_space.filter("x_3", copy=True),
    name="PropulsionScenario",
    formulation_name="DisciplinaryOpt",
)

Build a sub-scenario for Aerodynamics

This sub-scenario will minimize L/D.

sc_aero = create_scenario(
    aero,
    "y_24",
    design_space.filter("x_2", copy=True),
    name="AerodynamicsScenario",
    maximize_objective=True,
    formulation_name="DisciplinaryOpt",
)

Build a sub-scenario for Structure

This sub-scenario will maximize log(aircraft total weight / (aircraft total weight - fuel weight)).

sc_str = create_scenario(
    struct,
    "y_11",
    deepcopy(design_space).filter("x_1"),
    name="StructureScenario",
    maximize_objective=True,
    formulation_name="DisciplinaryOpt",
)

Build a scenario for Mission

This scenario is based on the three previous sub-scenarios and on the Mission and aims to maximize the range (Breguet).

sub_disciplines = [sc_prop, sc_aero, sc_str, mission]
system_scenario = create_scenario(
    sub_disciplines,
    "y_4",
    design_space.filter("x_shared", copy=True),
    parallel_scenarios=False,
    reset_x0_before_opt=True,
    scenario_type="DOE",
    formulation_name="BiLevel",
    save_opt_history="True",
    naming="UUID",
)

WARNING - 11:48:20: Unsupported feature 'minItems' in JSONGrammar 'SobieskiMission_discipline_output' for property 'y_4' in conversion to SimpleGrammar.
WARNING - 11:48:20: Unsupported feature 'maxItems' in JSONGrammar 'SobieskiMission_discipline_output' for property 'y_4' in conversion to SimpleGrammar.

Note

Setting reset_x0_before_opt=True is mandatory when doing a DOE in parallel. If we want reproducible results, don't reuse previous xopt.

Tip

When running BiLevel scenarios, it is interesting to access the optimization history of the sub-scenarios for each system iteration. By default, the setting keep_opt_history is set to True. This allows you to store in memory the databases of the sub-scenarios (see the last section of this example for more details). In some cases, storing the databases in memory can take up too much space and cause performance issues. In these cases, set keep_opt_history=False and save the databases to the disk using save_opt_history=True. If your sub-scenarios are running in parallel, and you are saving the optimization histories to the disk, set the naming setting to "UUID", which is multiprocessing-safe. The setting keep_opt_history will not work if the sub-scenarios are running in parallel because the databases are not copied from the sub-processes to the main process. In this case you shall always save the optimization history to the disk.

system_scenario.formulation.mda1.warm_start = False
system_scenario.formulation.mda2.warm_start = False

Note

This is mandatory when doing a DOE in parallel if we want always exactly the same results, don't warm start mda1 to have exactly the same process whatever the execution order and process dispatch.

for sub_sc in sub_disciplines[0:3]:
    sub_sc.set_algorithm(algo_name="L-BFGS-B", max_iter=20)

Visualize the XDSM

Generate the XDSM on the fly:

• log_workflow_status=True will log the status of the workflow in the console,

• save_html (default True) will generate a self-contained HTML file, that can be automatically opened using show_html=True.

system_scenario.xdsmize(save_html=False, pdf_build=False)

Multiprocessing

It is possible to run a DOE in parallel using multiprocessing, in order to do this, we specify the number of processes to be used for the computation of the samples.

Warning

The multiprocessing option has some limitations on Windows. Due to problems with sphinx, we disable it in this example. The features MemoryFullCache and HDF5Cache are not available for multiprocessing on Windows. As an alternative, we recommend the method DOEScenario.set_optimization_history_backup().

n_processes = 1 if os_name == "nt" else 4
system_scenario.execute(algo_name="PYDOE_LHS", n_samples=30, n_processes=n_processes)

system_scenario.print_execution_metrics()

INFO - 11:48:20: *** Start DOEScenario execution ***
INFO - 11:48:20: DOEScenario
INFO - 11:48:20:    Disciplines: AerodynamicsScenario PropulsionScenario SobieskiMission StructureScenario
INFO - 11:48:20:    MDO formulation: BiLevel
INFO - 11:48:20: Optimization problem:
INFO - 11:48:20:    minimize y_4(x_shared)
INFO - 11:48:20:    with respect to x_shared
INFO - 11:48:20:    over the design space:
INFO - 11:48:20:       +-------------+-------------+-------+-------------+-------+
INFO - 11:48:20:       | Name        | Lower bound | Value | Upper bound | Type  |
INFO - 11:48:20:       +-------------+-------------+-------+-------------+-------+
INFO - 11:48:20:       | x_shared[0] |     0.01    |  0.05 |     0.09    | float |
INFO - 11:48:20:       | x_shared[1] |    30000    | 45000 |    60000    | float |
INFO - 11:48:20:       | x_shared[2] |     1.4     |  1.6  |     1.8     | float |
INFO - 11:48:20:       | x_shared[3] |     2.5     |  5.5  |     8.5     | float |
INFO - 11:48:20:       | x_shared[4] |      40     |   55  |      70     | float |
INFO - 11:48:20:       | x_shared[5] |     500     |  1000 |     1500    | float |
INFO - 11:48:20:       +-------------+-------------+-------+-------------+-------+
INFO - 11:48:20: Solving optimization problem with algorithm PYDOE_LHS:
INFO - 11:48:20: Running DOE in parallel on n_processes = 4
INFO - 11:48:21:      3%|▎         | 1/30 [00:00<00:12,  2.26 it/sec, obj=247]
INFO - 11:48:21:      7%|▋         | 2/30 [00:00<00:08,  3.37 it/sec, obj=388]
INFO - 11:48:21:     10%|█         | 3/30 [00:00<00:05,  5.04 it/sec, obj=485]
INFO - 11:48:21:     13%|█▎        | 4/30 [00:00<00:04,  6.01 it/sec, obj=350]
INFO - 11:48:21:     17%|█▋        | 5/30 [00:00<00:04,  5.28 it/sec, obj=621]
INFO - 11:48:22:     20%|██        | 6/30 [00:01<00:04,  5.70 it/sec, obj=458]
INFO - 11:48:22:     23%|██▎       | 7/30 [00:01<00:03,  5.96 it/sec, obj=495]
INFO - 11:48:22:     27%|██▋       | 8/30 [00:01<00:03,  6.36 it/sec, obj=549]
INFO - 11:48:22:     30%|███       | 9/30 [00:01<00:03,  6.37 it/sec, obj=367]
INFO - 11:48:22:     33%|███▎      | 10/30 [00:01<00:03,  6.32 it/sec, obj=892]
INFO - 11:48:22:     37%|███▋      | 11/30 [00:01<00:03,  6.32 it/sec, obj=918]
INFO - 11:48:22:     40%|████      | 12/30 [00:01<00:02,  6.76 it/sec, obj=1.27e+3]
INFO - 11:48:22:     43%|████▎     | 13/30 [00:02<00:02,  6.48 it/sec, obj=354]
INFO - 11:48:23:     47%|████▋     | 14/30 [00:02<00:02,  6.56 it/sec, obj=415]
INFO - 11:48:23:     50%|█████     | 15/30 [00:02<00:02,  6.78 it/sec, obj=1.2e+3]
INFO - 11:48:23:     53%|█████▎    | 16/30 [00:02<00:01,  7.11 it/sec, obj=337]
INFO - 11:48:23:     57%|█████▋    | 17/30 [00:02<00:01,  6.94 it/sec, obj=2.27e+3]
INFO - 11:48:23:     60%|██████    | 18/30 [00:02<00:01,  6.80 it/sec, obj=394]
INFO - 11:48:23:     63%|██████▎   | 19/30 [00:02<00:01,  6.92 it/sec, obj=380]
INFO - 11:48:23:     67%|██████▋   | 20/30 [00:02<00:01,  7.00 it/sec, obj=829]
INFO - 11:48:23:     70%|███████   | 21/30 [00:02<00:01,  7.28 it/sec, obj=832]
INFO - 11:48:24:     73%|███████▎  | 22/30 [00:03<00:01,  7.14 it/sec, obj=1.04e+3]
INFO - 11:48:24:     77%|███████▋  | 23/30 [00:03<00:00,  7.15 it/sec, obj=1.21e+3]
INFO - 11:48:24:     80%|████████  | 24/30 [00:03<00:00,  7.04 it/sec, obj=640]
INFO - 11:48:24:     83%|████████▎ | 25/30 [00:03<00:00,  7.22 it/sec, obj=1.19e+3]
INFO - 11:48:24:     87%|████████▋ | 26/30 [00:03<00:00,  7.20 it/sec, obj=470]
INFO - 11:48:24:     90%|█████████ | 27/30 [00:03<00:00,  7.07 it/sec, obj=484]
INFO - 11:48:24:     93%|█████████▎| 28/30 [00:03<00:00,  7.25 it/sec, obj=293]
INFO - 11:48:24:     97%|█████████▋| 29/30 [00:03<00:00,  7.48 it/sec, obj=647]
INFO - 11:48:24:    100%|██████████| 30/30 [00:03<00:00,  7.61 it/sec, obj=952]
INFO - 11:48:24: Optimization result:
INFO - 11:48:24:    Optimizer info:
INFO - 11:48:24:       Status: None
INFO - 11:48:24:       Message: None
INFO - 11:48:24:       Number of calls to the objective function by the optimizer: 30
INFO - 11:48:24:    Solution:
INFO - 11:48:24:       Objective: 246.89549262432172
INFO - 11:48:24:       Design space:
INFO - 11:48:24:          +-------------+-------------+---------------------+-------------+-------+
INFO - 11:48:24:          | Name        | Lower bound |        Value        | Upper bound | Type  |
INFO - 11:48:24:          +-------------+-------------+---------------------+-------------+-------+
INFO - 11:48:24:          | x_shared[0] |     0.01    | 0.01316336056367379 |     0.09    | float |
INFO - 11:48:24:          | x_shared[1] |    30000    |  39053.36254511708  |    60000    | float |
INFO - 11:48:24:          | x_shared[2] |     1.4     |  1.759600266521177  |     1.8     | float |
INFO - 11:48:24:          | x_shared[3] |     2.5     |  8.352983911532561  |     8.5     | float |
INFO - 11:48:24:          | x_shared[4] |      40     |  66.23984775914758  |      70     | float |
INFO - 11:48:24:          | x_shared[5] |     500     |  1232.319858277323  |     1500    | float |
INFO - 11:48:24:          +-------------+-------------+---------------------+-------------+-------+
INFO - 11:48:24: *** End DOEScenario execution (time: 0:00:03.994622) ***
INFO - 11:48:24: Scenario Execution Statistics
INFO - 11:48:24:    Discipline: PropulsionScenario
INFO - 11:48:24:       Executions number: 30
INFO - 11:48:24:       Execution time: 0.7348465480026789 s
INFO - 11:48:24:       Linearizations number: 0
INFO - 11:48:24:    Discipline: AerodynamicsScenario
INFO - 11:48:24:       Executions number: 30
INFO - 11:48:24:       Execution time: 0.8858232950005913 s
INFO - 11:48:24:       Linearizations number: 0
INFO - 11:48:24:    Discipline: StructureScenario
INFO - 11:48:24:       Executions number: 30
INFO - 11:48:24:       Execution time: 5.724348909996479 s
INFO - 11:48:24:       Linearizations number: 0
INFO - 11:48:24:    Discipline: SobieskiMission
INFO - 11:48:24:       Executions number: 30
INFO - 11:48:24:       Execution time: 0.0007436809974024072 s
INFO - 11:48:24:       Linearizations number: 0
INFO - 11:48:24:    Total number of executions calls: 120
INFO - 11:48:24:    Total number of linearizations: 0

Warning

On Windows, the progress bar may show duplicated instances during the initialization of each subprocess. In some cases it may also print the conclusion of an iteration ahead of another one that was concluded first. This is a consequence of the pickling process and does not affect the computations of the scenario.

Exporting the problem data.

After the execution of the scenario, you may want to export your data to use it elsewhere. The method Scenario.to_dataset() will allow you to export your results to a Dataset, the basic GEMSEO class to store data.

dataset = system_scenario.to_dataset("a_name_for_my_dataset")

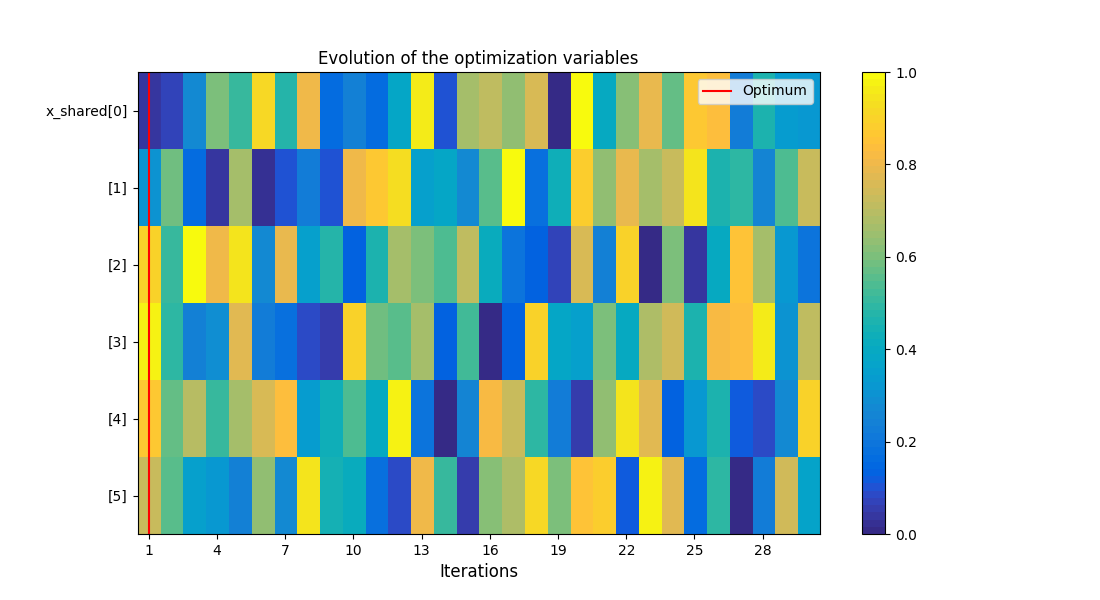

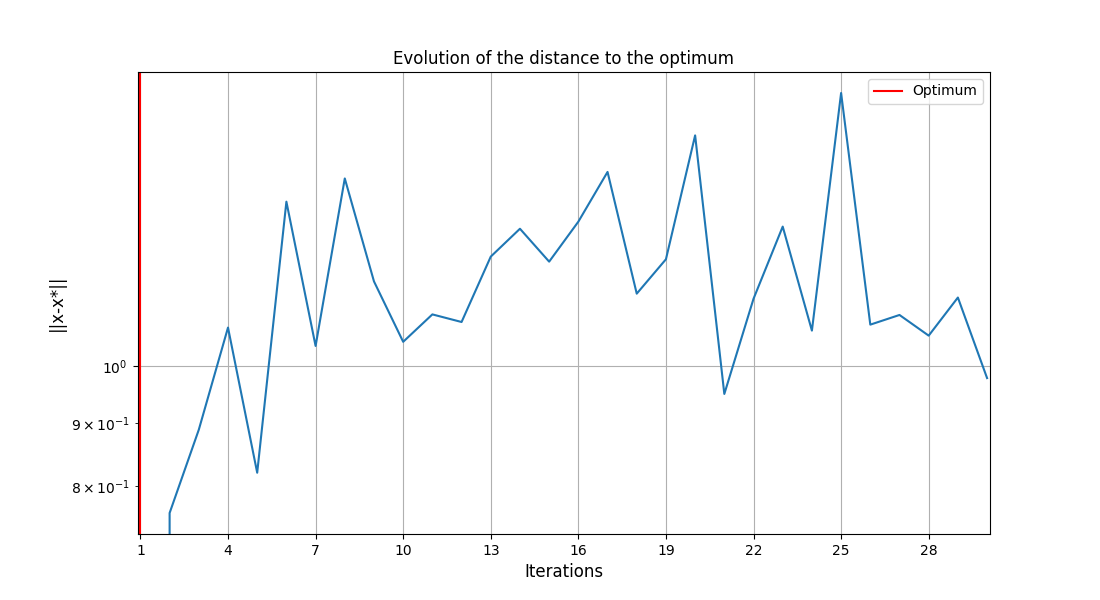

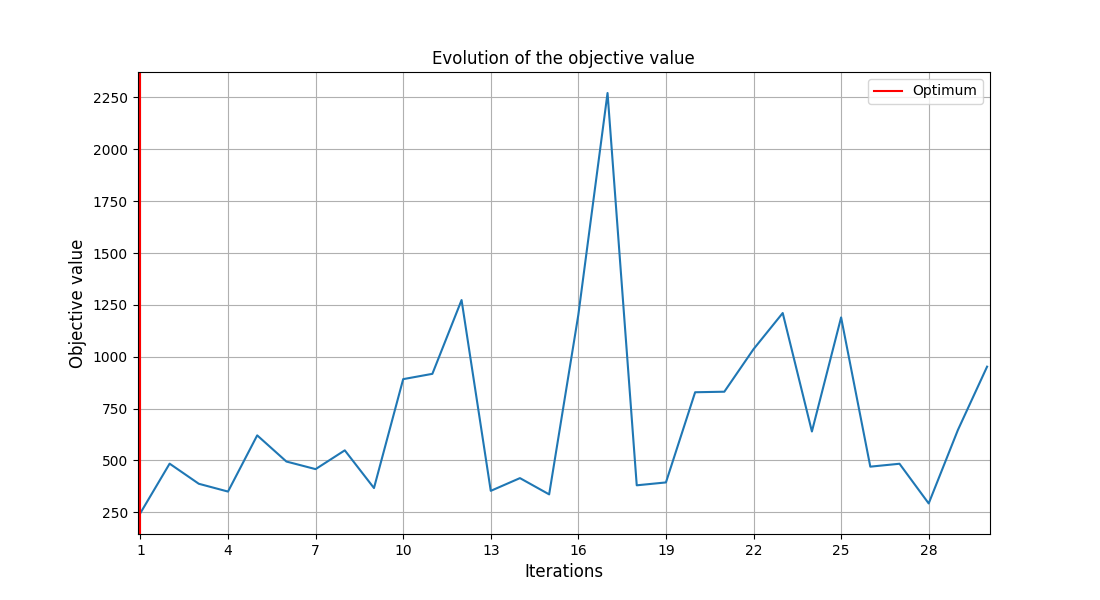

Plot the optimization history view

system_scenario.post_process(post_name="OptHistoryView", save=False, show=True)

•
•
•

<gemseo.post.opt_history_view.OptHistoryView object at 0x7048fb5b74d0>

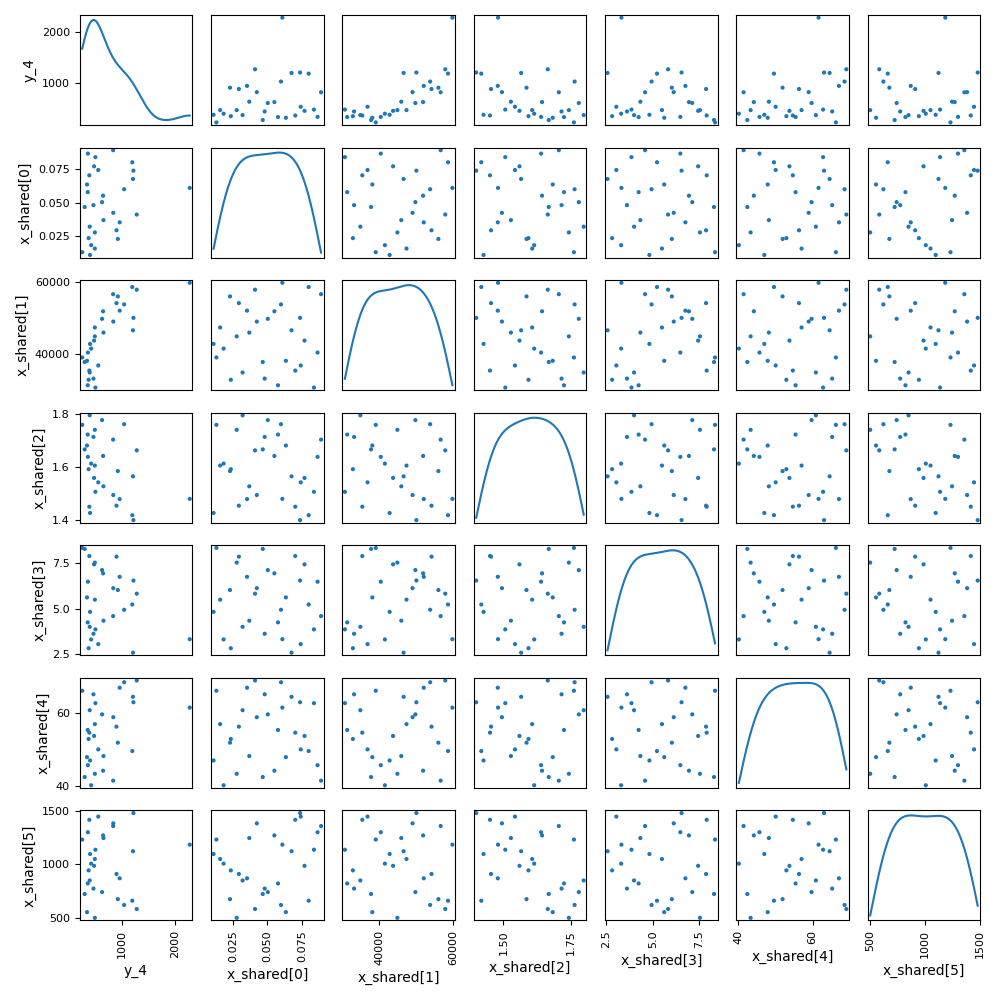

Plot the scatter matrix

system_scenario.post_process(
    post_name="ScatterPlotMatrix",
    variable_names=["y_4", "x_shared"],
    save=False,
    show=True,
)

<gemseo.post.scatter_plot_matrix.ScatterPlotMatrix object at 0x7048fb041520>

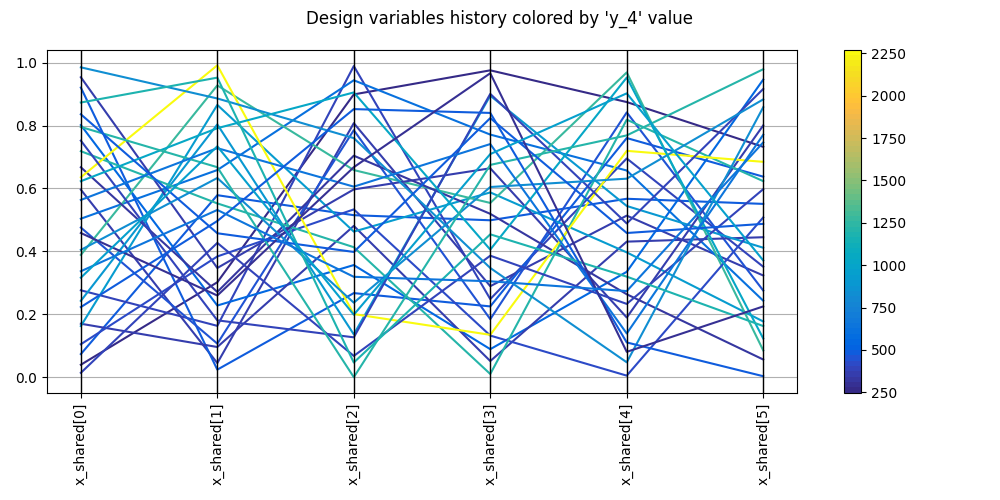

Plot parallel coordinates

system_scenario.post_process(post_name="ParallelCoordinates", save=False, show=True)

•
•

<gemseo.post.parallel_coordinates.ParallelCoordinates object at 0x7048fb576450>

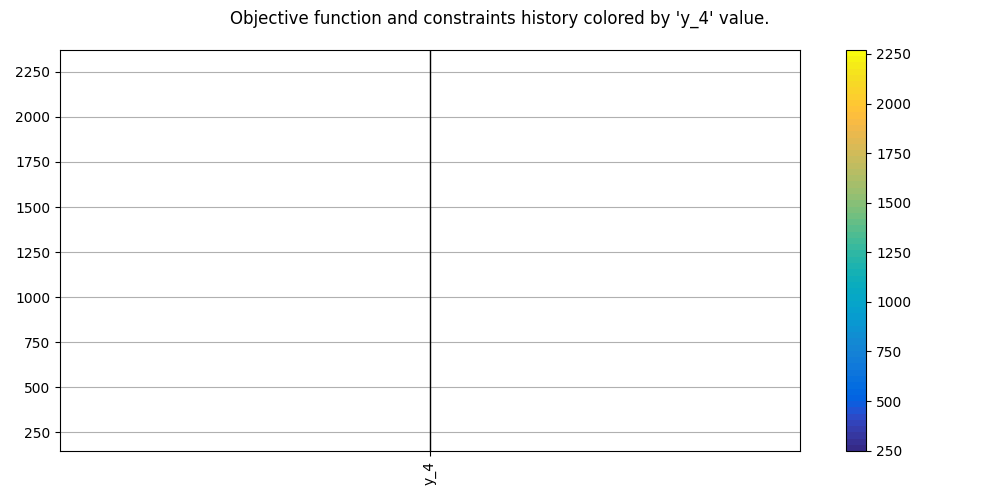

Plot correlations

system_scenario.post_process(post_name="Correlations", save=False, show=True)

    INFO - 11:48:27: Detected 0 correlations > 0.95

<gemseo.post.correlations.Correlations object at 0x7049203be3c0>

Plot the structure optimization histories of the 2 first iterations

The code below will not work if you ran the system scenario with n_processes > 1. Indeed, parallel execution of sub-scenarios prevents us to save the databases from each sub-process to the main process. If you ran the system scenario with many processes, you can still save the databases to the disk with save_opt_history=True and naming="UUID". Refer to the formulation settings for more information.

struct_databases = system_scenario.formulation.scenario_adapters[2].databases
for database in struct_databases[:2]:
    opt_problem = deepcopy(sc_str.formulation.optimization_problem)
    opt_problem.database = database
    execute_post(opt_problem, post_name="OptHistoryView", save=False, show=True)
