Solve a 2D L-shape topology optimization problem#
from __future__ import annotations
from gemseo import configure_logger
from gemseo import create_scenario
from gemseo.problems.topology_optimization.topopt_initialize import (
initialize_design_space_and_discipline_to,
)
configure_logger()
<RootLogger root (INFO)>
Setup the topology optimization problem#
Define the target volume fraction:
volume_fraction = 0.3
Define the problem type:
problem_name = "L-Shape"
Define the number of elements in the x- and y- directions:
n_x = 25
n_y = 25
Define the full material Young's modulus and Poisson's ratio:
e0 = 1
nu = 0.3
Define the penalty of the SIMP approach:
penalty = 3
Define the minimum member size in the solution:
min_member_size = 1.5
Instantiate the DesignSpace and the disciplines:
design_space, disciplines = initialize_design_space_and_discipline_to(
problem=problem_name,
n_x=n_x,
n_y=n_y,
e0=e0,
nu=nu,
penalty=penalty,
min_member_size=min_member_size,
vf0=volume_fraction,
)
Solve the topology optimization problem#
Generate an MDOScenario:
scenario = create_scenario(
disciplines,
"compliance",
design_space,
formulation_name="DisciplinaryOpt",
)
Add the volume fraction constraint to the scenario:
scenario.add_constraint(
"volume fraction", constraint_type="ineq", value=volume_fraction
)
Generate the XDSM
scenario.xdsmize(save_html=False, pdf_build=False)
Execute the scenario

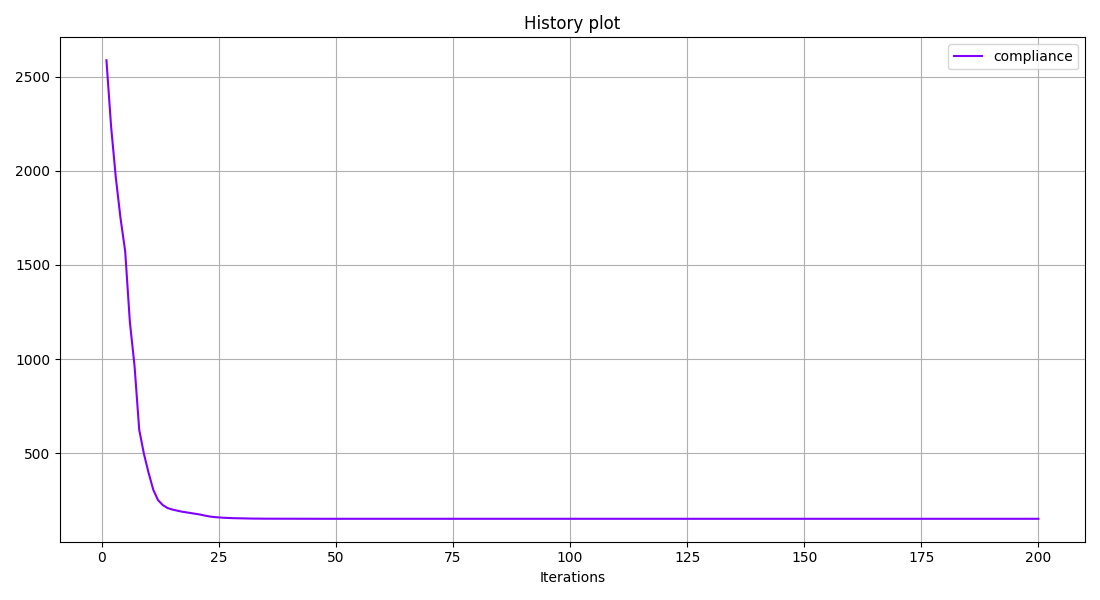

scenario.execute(algo_name="NLOPT_MMA", max_iter=200)
INFO - 11:41:51: *** Start MDOScenario execution ***
INFO - 11:41:51: MDOScenario
INFO - 11:41:51: Disciplines: DensityFilter FiniteElementAnalysis MaterialModelInterpolation VolumeFraction
INFO - 11:41:51: MDO formulation: DisciplinaryOpt
INFO - 11:41:51: Optimization problem:
INFO - 11:41:51: minimize compliance(x)
INFO - 11:41:51: with respect to x
INFO - 11:41:51: subject to constraints:
INFO - 11:41:51: volume fraction(x) <= 0.3
INFO - 11:41:51: Solving optimization problem with algorithm NLOPT_MMA:
INFO - 11:41:51: 1%| | 2/200 [00:00<00:04, 45.19 it/sec, obj=2.23e+3]
INFO - 11:41:51: 2%|▏ | 3/200 [00:00<00:03, 52.65 it/sec, obj=1.96e+3]
INFO - 11:41:51: 2%|▏ | 4/200 [00:00<00:03, 57.72 it/sec, obj=1.75e+3]
INFO - 11:41:51: 2%|▎ | 5/200 [00:00<00:03, 60.89 it/sec, obj=1.57e+3]
INFO - 11:41:51: 3%|▎ | 6/200 [00:00<00:03, 63.13 it/sec, obj=1.2e+3]
INFO - 11:41:51: 4%|▎ | 7/200 [00:00<00:02, 64.80 it/sec, obj=963]
INFO - 11:41:51: 4%|▍ | 8/200 [00:00<00:02, 66.16 it/sec, obj=624]
INFO - 11:41:51: 4%|▍ | 9/200 [00:00<00:02, 67.39 it/sec, obj=497]
INFO - 11:41:51: 5%|▌ | 10/200 [00:00<00:02, 68.43 it/sec, obj=395]
INFO - 11:41:51: 6%|▌ | 11/200 [00:00<00:02, 69.37 it/sec, obj=306]
INFO - 11:41:51: 6%|▌ | 12/200 [00:00<00:02, 70.27 it/sec, obj=251]
INFO - 11:41:51: 6%|▋ | 13/200 [00:00<00:02, 70.98 it/sec, obj=225]
INFO - 11:41:51: 7%|▋ | 14/200 [00:00<00:02, 71.77 it/sec, obj=209]
INFO - 11:41:51: 8%|▊ | 15/200 [00:00<00:02, 72.55 it/sec, obj=201]
INFO - 11:41:51: 8%|▊ | 16/200 [00:00<00:02, 73.21 it/sec, obj=195]
INFO - 11:41:51: 8%|▊ | 17/200 [00:00<00:02, 73.75 it/sec, obj=190]
INFO - 11:41:51: 9%|▉ | 18/200 [00:00<00:02, 74.33 it/sec, obj=186]
INFO - 11:41:51: 10%|▉ | 19/200 [00:00<00:02, 74.79 it/sec, obj=182]
INFO - 11:41:51: 10%|█ | 20/200 [00:00<00:02, 75.23 it/sec, obj=178]
INFO - 11:41:51: 10%|█ | 21/200 [00:00<00:02, 75.64 it/sec, obj=174]
INFO - 11:41:51: 11%|█ | 22/200 [00:00<00:02, 75.87 it/sec, obj=169]
INFO - 11:41:51: 12%|█▏ | 23/200 [00:00<00:02, 76.28 it/sec, obj=164]
INFO - 11:41:51: 12%|█▏ | 24/200 [00:00<00:02, 76.74 it/sec, obj=161]
INFO - 11:41:51: 12%|█▎ | 25/200 [00:00<00:02, 77.12 it/sec, obj=159]
INFO - 11:41:51: 13%|█▎ | 26/200 [00:00<00:02, 77.55 it/sec, obj=157]
INFO - 11:41:51: 14%|█▎ | 27/200 [00:00<00:02, 77.92 it/sec, obj=156]
INFO - 11:41:51: 14%|█▍ | 28/200 [00:00<00:02, 78.27 it/sec, obj=155]
INFO - 11:41:51: 14%|█▍ | 29/200 [00:00<00:02, 78.56 it/sec, obj=154]
INFO - 11:41:51: 15%|█▌ | 30/200 [00:00<00:02, 78.87 it/sec, obj=154]
INFO - 11:41:51: 16%|█▌ | 31/200 [00:00<00:02, 79.19 it/sec, obj=153]
INFO - 11:41:51: 16%|█▌ | 32/200 [00:00<00:02, 79.47 it/sec, obj=153]
INFO - 11:41:51: 16%|█▋ | 33/200 [00:00<00:02, 79.81 it/sec, obj=152]
INFO - 11:41:51: 17%|█▋ | 34/200 [00:00<00:02, 79.99 it/sec, obj=152]
INFO - 11:41:51: 18%|█▊ | 35/200 [00:00<00:02, 80.21 it/sec, obj=152]
INFO - 11:41:51: 18%|█▊ | 36/200 [00:00<00:02, 80.45 it/sec, obj=152]
INFO - 11:41:51: 18%|█▊ | 37/200 [00:00<00:02, 80.69 it/sec, obj=152]
INFO - 11:41:51: 19%|█▉ | 38/200 [00:00<00:02, 80.92 it/sec, obj=152]
INFO - 11:41:51: 20%|█▉ | 39/200 [00:00<00:01, 81.10 it/sec, obj=152]
INFO - 11:41:51: 20%|██ | 40/200 [00:00<00:01, 81.29 it/sec, obj=152]
INFO - 11:41:51: 20%|██ | 41/200 [00:00<00:01, 81.47 it/sec, obj=152]
INFO - 11:41:51: 21%|██ | 42/200 [00:00<00:01, 81.68 it/sec, obj=152]
INFO - 11:41:51: 22%|██▏ | 43/200 [00:00<00:01, 81.81 it/sec, obj=152]
INFO - 11:41:51: 22%|██▏ | 44/200 [00:00<00:01, 81.96 it/sec, obj=152]
INFO - 11:41:51: 22%|██▎ | 45/200 [00:00<00:01, 82.15 it/sec, obj=152]
INFO - 11:41:51: 23%|██▎ | 46/200 [00:00<00:01, 82.28 it/sec, obj=152]
INFO - 11:41:51: 24%|██▎ | 47/200 [00:00<00:01, 82.48 it/sec, obj=152]
INFO - 11:41:51: 24%|██▍ | 48/200 [00:00<00:01, 82.70 it/sec, obj=152]
INFO - 11:41:51: 24%|██▍ | 49/200 [00:00<00:01, 82.91 it/sec, obj=152]
INFO - 11:41:51: 25%|██▌ | 50/200 [00:00<00:01, 83.05 it/sec, obj=152]
INFO - 11:41:51: 26%|██▌ | 51/200 [00:00<00:01, 83.19 it/sec, obj=152]
INFO - 11:41:51: 26%|██▌ | 52/200 [00:00<00:01, 83.28 it/sec, obj=152]
INFO - 11:41:51: 26%|██▋ | 53/200 [00:00<00:01, 83.30 it/sec, obj=152]
INFO - 11:41:51: 27%|██▋ | 54/200 [00:00<00:01, 83.34 it/sec, obj=152]
INFO - 11:41:51: 28%|██▊ | 55/200 [00:00<00:01, 83.34 it/sec, obj=152]
INFO - 11:41:51: 28%|██▊ | 56/200 [00:00<00:01, 83.43 it/sec, obj=152]
INFO - 11:41:51: 28%|██▊ | 57/200 [00:00<00:01, 83.45 it/sec, obj=152]
INFO - 11:41:51: 29%|██▉ | 58/200 [00:00<00:01, 83.51 it/sec, obj=152]
INFO - 11:41:52: 30%|██▉ | 59/200 [00:00<00:01, 83.56 it/sec, obj=152]
INFO - 11:41:52: 30%|███ | 60/200 [00:00<00:01, 83.63 it/sec, obj=152]
INFO - 11:41:52: 30%|███ | 61/200 [00:00<00:01, 83.68 it/sec, obj=152]
INFO - 11:41:52: 31%|███ | 62/200 [00:00<00:01, 83.77 it/sec, obj=152]
INFO - 11:41:52: 32%|███▏ | 63/200 [00:00<00:01, 83.86 it/sec, obj=152]
INFO - 11:41:52: 32%|███▏ | 64/200 [00:00<00:01, 83.95 it/sec, obj=152]
INFO - 11:41:52: 32%|███▎ | 65/200 [00:00<00:01, 84.04 it/sec, obj=152]
INFO - 11:41:52: 33%|███▎ | 66/200 [00:00<00:01, 84.15 it/sec, obj=152]
INFO - 11:41:52: 34%|███▎ | 67/200 [00:00<00:01, 84.25 it/sec, obj=152]
INFO - 11:41:52: 34%|███▍ | 68/200 [00:00<00:01, 84.27 it/sec, obj=152]
INFO - 11:41:52: 34%|███▍ | 69/200 [00:00<00:01, 84.33 it/sec, obj=152]
INFO - 11:41:52: 35%|███▌ | 70/200 [00:00<00:01, 84.41 it/sec, obj=152]
INFO - 11:41:52: 36%|███▌ | 71/200 [00:00<00:01, 84.50 it/sec, obj=152]
INFO - 11:41:52: 36%|███▌ | 72/200 [00:00<00:01, 84.57 it/sec, obj=152]
INFO - 11:41:52: 36%|███▋ | 73/200 [00:00<00:01, 84.66 it/sec, obj=152]
INFO - 11:41:52: 37%|███▋ | 74/200 [00:00<00:01, 84.73 it/sec, obj=152]
INFO - 11:41:52: 38%|███▊ | 75/200 [00:00<00:01, 84.86 it/sec, obj=152]
INFO - 11:41:52: 38%|███▊ | 76/200 [00:00<00:01, 84.93 it/sec, obj=152]
INFO - 11:41:52: 38%|███▊ | 77/200 [00:00<00:01, 85.05 it/sec, obj=152]
INFO - 11:41:52: 39%|███▉ | 78/200 [00:00<00:01, 85.10 it/sec, obj=152]
INFO - 11:41:52: 40%|███▉ | 79/200 [00:00<00:01, 85.21 it/sec, obj=152]
INFO - 11:41:52: 40%|████ | 80/200 [00:00<00:01, 85.28 it/sec, obj=152]
INFO - 11:41:52: 40%|████ | 81/200 [00:00<00:01, 85.40 it/sec, obj=152]
INFO - 11:41:52: 41%|████ | 82/200 [00:00<00:01, 85.50 it/sec, obj=152]
INFO - 11:41:52: 42%|████▏ | 83/200 [00:00<00:01, 85.56 it/sec, obj=152]
INFO - 11:41:52: 42%|████▏ | 84/200 [00:00<00:01, 85.59 it/sec, obj=152]
INFO - 11:41:52: 42%|████▎ | 85/200 [00:00<00:01, 85.67 it/sec, obj=152]
INFO - 11:41:52: 43%|████▎ | 86/200 [00:01<00:01, 85.73 it/sec, obj=152]
INFO - 11:41:52: 44%|████▎ | 87/200 [00:01<00:01, 85.82 it/sec, obj=152]
INFO - 11:41:52: 44%|████▍ | 88/200 [00:01<00:01, 85.91 it/sec, obj=152]
INFO - 11:41:52: 44%|████▍ | 89/200 [00:01<00:01, 86.01 it/sec, obj=152]
INFO - 11:41:52: 45%|████▌ | 90/200 [00:01<00:01, 86.09 it/sec, obj=152]
INFO - 11:41:52: 46%|████▌ | 91/200 [00:01<00:01, 86.11 it/sec, obj=152]
INFO - 11:41:52: 46%|████▌ | 92/200 [00:01<00:01, 86.18 it/sec, obj=152]
INFO - 11:41:52: 46%|████▋ | 93/200 [00:01<00:01, 86.23 it/sec, obj=152]
INFO - 11:41:52: 47%|████▋ | 94/200 [00:01<00:01, 86.29 it/sec, obj=152]
INFO - 11:41:52: 48%|████▊ | 95/200 [00:01<00:01, 86.37 it/sec, obj=152]
INFO - 11:41:52: 48%|████▊ | 96/200 [00:01<00:01, 86.39 it/sec, obj=152]
INFO - 11:41:52: 48%|████▊ | 97/200 [00:01<00:01, 86.44 it/sec, obj=152]
INFO - 11:41:52: 49%|████▉ | 98/200 [00:01<00:01, 86.47 it/sec, obj=152]
INFO - 11:41:52: 50%|████▉ | 99/200 [00:01<00:01, 86.53 it/sec, obj=152]
INFO - 11:41:52: 50%|█████ | 100/200 [00:01<00:01, 86.59 it/sec, obj=152]
INFO - 11:41:52: 50%|█████ | 101/200 [00:01<00:01, 86.62 it/sec, obj=152]
INFO - 11:41:52: 51%|█████ | 102/200 [00:01<00:01, 86.68 it/sec, obj=152]
INFO - 11:41:52: 52%|█████▏ | 103/200 [00:01<00:01, 86.74 it/sec, obj=152]
INFO - 11:41:52: 52%|█████▏ | 104/200 [00:01<00:01, 86.79 it/sec, obj=152]
INFO - 11:41:52: 52%|█████▎ | 105/200 [00:01<00:01, 86.80 it/sec, obj=152]
INFO - 11:41:52: 53%|█████▎ | 106/200 [00:01<00:01, 86.84 it/sec, obj=152]
INFO - 11:41:52: 54%|█████▎ | 107/200 [00:01<00:01, 86.89 it/sec, obj=152]
INFO - 11:41:52: 54%|█████▍ | 108/200 [00:01<00:01, 86.93 it/sec, obj=152]
INFO - 11:41:52: 55%|█████▍ | 109/200 [00:01<00:01, 86.99 it/sec, obj=152]
INFO - 11:41:52: 55%|█████▌ | 110/200 [00:01<00:01, 87.06 it/sec, obj=152]
INFO - 11:41:52: 56%|█████▌ | 111/200 [00:01<00:01, 87.12 it/sec, obj=152]
INFO - 11:41:52: 56%|█████▌ | 112/200 [00:01<00:01, 87.18 it/sec, obj=152]
INFO - 11:41:52: 56%|█████▋ | 113/200 [00:01<00:00, 87.20 it/sec, obj=152]
INFO - 11:41:52: 57%|█████▋ | 114/200 [00:01<00:00, 87.25 it/sec, obj=152]
INFO - 11:41:52: 57%|█████▊ | 115/200 [00:01<00:00, 87.31 it/sec, obj=152]
INFO - 11:41:52: 58%|█████▊ | 116/200 [00:01<00:00, 87.38 it/sec, obj=152]
INFO - 11:41:52: 58%|█████▊ | 117/200 [00:01<00:00, 87.44 it/sec, obj=152]
INFO - 11:41:52: 59%|█████▉ | 118/200 [00:01<00:00, 87.50 it/sec, obj=152]
INFO - 11:41:52: 60%|█████▉ | 119/200 [00:01<00:00, 87.57 it/sec, obj=152]
INFO - 11:41:52: 60%|██████ | 120/200 [00:01<00:00, 87.63 it/sec, obj=152]
INFO - 11:41:52: 60%|██████ | 121/200 [00:01<00:00, 87.69 it/sec, obj=152]
INFO - 11:41:52: 61%|██████ | 122/200 [00:01<00:00, 87.75 it/sec, obj=152]
INFO - 11:41:52: 62%|██████▏ | 123/200 [00:01<00:00, 87.79 it/sec, obj=152]
INFO - 11:41:52: 62%|██████▏ | 124/200 [00:01<00:00, 87.85 it/sec, obj=152]
INFO - 11:41:52: 62%|██████▎ | 125/200 [00:01<00:00, 87.88 it/sec, obj=152]
INFO - 11:41:52: 63%|██████▎ | 126/200 [00:01<00:00, 87.93 it/sec, obj=152]
INFO - 11:41:52: 64%|██████▎ | 127/200 [00:01<00:00, 87.98 it/sec, obj=152]
INFO - 11:41:52: 64%|██████▍ | 128/200 [00:01<00:00, 88.03 it/sec, obj=152]
INFO - 11:41:52: 64%|██████▍ | 129/200 [00:01<00:00, 88.08 it/sec, obj=152]
INFO - 11:41:52: 65%|██████▌ | 130/200 [00:01<00:00, 88.13 it/sec, obj=152]
INFO - 11:41:52: 66%|██████▌ | 131/200 [00:01<00:00, 88.17 it/sec, obj=152]
INFO - 11:41:52: 66%|██████▌ | 132/200 [00:01<00:00, 88.19 it/sec, obj=152]
INFO - 11:41:52: 66%|██████▋ | 133/200 [00:01<00:00, 88.24 it/sec, obj=152]
INFO - 11:41:52: 67%|██████▋ | 134/200 [00:01<00:00, 88.30 it/sec, obj=152]
INFO - 11:41:52: 68%|██████▊ | 135/200 [00:01<00:00, 88.35 it/sec, obj=152]
INFO - 11:41:52: 68%|██████▊ | 136/200 [00:01<00:00, 88.40 it/sec, obj=152]
INFO - 11:41:52: 68%|██████▊ | 137/200 [00:01<00:00, 88.44 it/sec, obj=152]
INFO - 11:41:52: 69%|██████▉ | 138/200 [00:01<00:00, 88.49 it/sec, obj=152]
INFO - 11:41:52: 70%|██████▉ | 139/200 [00:01<00:00, 88.54 it/sec, obj=152]
INFO - 11:41:52: 70%|███████ | 140/200 [00:01<00:00, 88.58 it/sec, obj=152]
INFO - 11:41:52: 70%|███████ | 141/200 [00:01<00:00, 88.62 it/sec, obj=152]
INFO - 11:41:52: 71%|███████ | 142/200 [00:01<00:00, 88.65 it/sec, obj=152]
INFO - 11:41:52: 72%|███████▏ | 143/200 [00:01<00:00, 88.68 it/sec, obj=152]
INFO - 11:41:52: 72%|███████▏ | 144/200 [00:01<00:00, 88.72 it/sec, obj=152]
INFO - 11:41:52: 72%|███████▎ | 145/200 [00:01<00:00, 88.73 it/sec, obj=152]
INFO - 11:41:52: 73%|███████▎ | 146/200 [00:01<00:00, 88.77 it/sec, obj=152]
INFO - 11:41:52: 74%|███████▎ | 147/200 [00:01<00:00, 88.81 it/sec, obj=152]
INFO - 11:41:52: 74%|███████▍ | 148/200 [00:01<00:00, 88.85 it/sec, obj=152]
INFO - 11:41:52: 74%|███████▍ | 149/200 [00:01<00:00, 88.90 it/sec, obj=152]
INFO - 11:41:52: 75%|███████▌ | 150/200 [00:01<00:00, 88.93 it/sec, obj=152]
INFO - 11:41:52: 76%|███████▌ | 151/200 [00:01<00:00, 88.97 it/sec, obj=152]
INFO - 11:41:53: 76%|███████▌ | 152/200 [00:01<00:00, 89.00 it/sec, obj=152]
INFO - 11:41:53: 76%|███████▋ | 153/200 [00:01<00:00, 89.03 it/sec, obj=152]
INFO - 11:41:53: 77%|███████▋ | 154/200 [00:01<00:00, 89.07 it/sec, obj=152]
INFO - 11:41:53: 78%|███████▊ | 155/200 [00:01<00:00, 89.10 it/sec, obj=152]
INFO - 11:41:53: 78%|███████▊ | 156/200 [00:01<00:00, 89.14 it/sec, obj=152]
INFO - 11:41:53: 78%|███████▊ | 157/200 [00:01<00:00, 89.17 it/sec, obj=152]
INFO - 11:41:53: 79%|███████▉ | 158/200 [00:01<00:00, 89.20 it/sec, obj=152]
INFO - 11:41:53: 80%|███████▉ | 159/200 [00:01<00:00, 89.24 it/sec, obj=152]
INFO - 11:41:53: 80%|████████ | 160/200 [00:01<00:00, 89.27 it/sec, obj=152]
INFO - 11:41:53: 80%|████████ | 161/200 [00:01<00:00, 89.29 it/sec, obj=152]
INFO - 11:41:53: 81%|████████ | 162/200 [00:01<00:00, 89.33 it/sec, obj=152]
INFO - 11:41:53: 82%|████████▏ | 163/200 [00:01<00:00, 89.35 it/sec, obj=152]
INFO - 11:41:53: 82%|████████▏ | 164/200 [00:01<00:00, 89.36 it/sec, obj=152]
INFO - 11:41:53: 82%|████████▎ | 165/200 [00:01<00:00, 89.38 it/sec, obj=152]
INFO - 11:41:53: 83%|████████▎ | 166/200 [00:01<00:00, 89.41 it/sec, obj=152]
INFO - 11:41:53: 84%|████████▎ | 167/200 [00:01<00:00, 89.44 it/sec, obj=152]
INFO - 11:41:53: 84%|████████▍ | 168/200 [00:01<00:00, 89.47 it/sec, obj=152]
INFO - 11:41:53: 84%|████████▍ | 169/200 [00:01<00:00, 89.50 it/sec, obj=152]
INFO - 11:41:53: 85%|████████▌ | 170/200 [00:01<00:00, 89.53 it/sec, obj=152]
INFO - 11:41:53: 86%|████████▌ | 171/200 [00:01<00:00, 89.56 it/sec, obj=152]
INFO - 11:41:53: 86%|████████▌ | 172/200 [00:01<00:00, 89.59 it/sec, obj=152]
INFO - 11:41:53: 86%|████████▋ | 173/200 [00:01<00:00, 89.62 it/sec, obj=152]
INFO - 11:41:53: 87%|████████▋ | 174/200 [00:01<00:00, 89.64 it/sec, obj=152]
INFO - 11:41:53: 88%|████████▊ | 175/200 [00:01<00:00, 89.63 it/sec, obj=152]
INFO - 11:41:53: 88%|████████▊ | 176/200 [00:01<00:00, 89.66 it/sec, obj=152]
INFO - 11:41:53: 88%|████████▊ | 177/200 [00:01<00:00, 89.69 it/sec, obj=152]
INFO - 11:41:53: 89%|████████▉ | 178/200 [00:01<00:00, 89.70 it/sec, obj=152]
INFO - 11:41:53: 90%|████████▉ | 179/200 [00:01<00:00, 89.71 it/sec, obj=152]
INFO - 11:41:53: 90%|█████████ | 180/200 [00:02<00:00, 89.73 it/sec, obj=152]
INFO - 11:41:53: 90%|█████████ | 181/200 [00:02<00:00, 89.73 it/sec, obj=152]
INFO - 11:41:53: 91%|█████████ | 182/200 [00:02<00:00, 89.75 it/sec, obj=152]
INFO - 11:41:53: 92%|█████████▏| 183/200 [00:02<00:00, 89.77 it/sec, obj=152]
INFO - 11:41:53: 92%|█████████▏| 184/200 [00:02<00:00, 89.79 it/sec, obj=152]
INFO - 11:41:53: 92%|█████████▎| 185/200 [00:02<00:00, 89.81 it/sec, obj=152]
INFO - 11:41:53: 93%|█████████▎| 186/200 [00:02<00:00, 89.83 it/sec, obj=152]
INFO - 11:41:53: 94%|█████████▎| 187/200 [00:02<00:00, 89.83 it/sec, obj=152]
INFO - 11:41:53: 94%|█████████▍| 188/200 [00:02<00:00, 89.84 it/sec, obj=152]
INFO - 11:41:53: 94%|█████████▍| 189/200 [00:02<00:00, 89.85 it/sec, obj=152]
INFO - 11:41:53: 95%|█████████▌| 190/200 [00:02<00:00, 89.85 it/sec, obj=152]
INFO - 11:41:53: 96%|█████████▌| 191/200 [00:02<00:00, 89.85 it/sec, obj=152]
INFO - 11:41:53: 96%|█████████▌| 192/200 [00:02<00:00, 89.85 it/sec, obj=152]
INFO - 11:41:53: 96%|█████████▋| 193/200 [00:02<00:00, 89.86 it/sec, obj=152]
INFO - 11:41:53: 97%|█████████▋| 194/200 [00:02<00:00, 89.88 it/sec, obj=152]
INFO - 11:41:53: 98%|█████████▊| 195/200 [00:02<00:00, 89.90 it/sec, obj=152]
INFO - 11:41:53: 98%|█████████▊| 196/200 [00:02<00:00, 89.92 it/sec, obj=152]
INFO - 11:41:53: 98%|█████████▊| 197/200 [00:02<00:00, 89.95 it/sec, obj=152]
INFO - 11:41:53: 99%|█████████▉| 198/200 [00:02<00:00, 89.97 it/sec, obj=152]
INFO - 11:41:53: 100%|█████████▉| 199/200 [00:02<00:00, 89.99 it/sec, obj=152]
INFO - 11:41:53: 100%|██████████| 200/200 [00:02<00:00, 90.31 it/sec, obj=152]
INFO - 11:41:53: Optimization result:
INFO - 11:41:53: Optimizer info:
INFO - 11:41:53: Status: None
INFO - 11:41:53: Message: Maximum number of iterations reached. GEMSEO stopped the driver.
INFO - 11:41:53: Number of calls to the objective function by the optimizer: 201
INFO - 11:41:53: Solution:
INFO - 11:41:53: The solution is feasible.
INFO - 11:41:53: Objective: 151.62879172825782
INFO - 11:41:53: Standardized constraints:
INFO - 11:41:53: [volume fraction-0.3] = 1.0267592836510353e-06
INFO - 11:41:53: *** End MDOScenario execution (time: 0:00:02.218276) ***
Results#
Post-process the optimization history:
scenario.post_process(
post_name="BasicHistory", variable_names=["compliance"], show=True, save=False
)
<gemseo.post.basic_history.BasicHistory object at 0x704928fc2c90>
Plot the solution
scenario.post_process(post_name="TopologyView", n_x=n_x, n_y=n_y, show=True, save=False)
<gemseo.post.topology_view.TopologyView object at 0x704928d79ee0>
Total running time of the script: (0 minutes 2.722 seconds)
