How to deal with scenarios#

1. How is a scenario defined?#

1.a. What is a scenario?#

A scenario is an interface that:

creates an optimization or sampling problem,
from a set of disciplines and a multidisciplinary formulation based on a design space and on an objective name,
executes it from an optimization or sampling algorithm with mandatory arguments and options and
post-process it.

1.b. How does a scenario is implemented in GEMSEO?#

Programmatically speaking, scenarios are implemented in GEMSEO through the BaseScenario abstract class inheriting from the Discipline class and derived classes:

The MDOScenario class inheriting from BaseScenario is dedicated to optimization processes.
The DOEScenario class inheriting from BaseScenario is dedicated to trade-off studies and sampling processes.

A BaseScenario is defined by four main elements:

the disciplines attribute: the list of Discipline,
the formulation attribute: the multidisciplinary formulation based on DesignSpace,
the optimization_result attribute: the optimization results,
the post_factory attribute: the post-processing set of methods.

1.c. What are the API functions in GEMSEO?#

After the instantiation of the different Discipline, an instance of this scenario can be created from the create_scenario() API function whose arguments are:

disciplines: the list of instantiated Discipline,
objective_name: the objective name (str)
design_space: the instantiated DesignSpace,
name=None: the optional name of the scenario (str),
scenario_type='MDO': the optional type of scenario ('MDO' or 'DOE'),
maximize_objective=False: the choice between maximizing or minimizing the objective function (bool),
formulation_settings_model: the formulation settings as a Pydantic model (BaseFormulationSettings)
**formulation_settings: settings passed to the multidisciplinary formulation, in case no formulation_settings_model is specified. In this case the formulation_name (str) is mandatory.

The types of scenarios already implemented in GEMSEO can be obtained by means of the get_available_scenario_types() API function:

from gemseo import get_available_scenario_types

get_available_scenario_types():

which results in:

["MDO", "DOE"]

2. How to create a scenario?#

We can easily create an MDOScenario or a DOEScenario from the create_scenario() API function.

2.a. Instantiate the disciplines#

For that, we first instantiate the different Discipline, e.g.

from gemseo import create_discipline

disciplines = create_discipline(['Sellar1', 'Sellar2', 'SellarSystem'])

2.b. Define the design space#

Then, we define the design space, either by instantiating a DesignSpace,

from gemseo.problems.mdo.sellar.sellar_design_space import SellarDesignSpace

design_space = SellarDesignSpace()

or by means of the file path of the design space:

design_space = 'path_to_sellar_design_space.csv'

2.c. Define the objective function#

The objective function should be an output taken among the output list of the different Discipline, e.g.

objective_name = 'obj'

2.d. Define the multidisciplinary formulation and its settings#

From the design space and the objective name, the BaseScenario automatically builds an multidisciplinary formulation corresponding to a multidisciplinary formulation name specified by the user, e.g.

formulation_settings_model = MDF_Settings()

or:

formulation_name = 'MDF'

The list of the different available formulations can be obtained by means of the get_available_formulations() API function:

from gemseo import get_available_formulations

get_available_formulations()

which yields:

['BiLevel', 'IDF', 'MDF', 'DisciplinaryOpt']

Note

argument=value formulation options can also be passed to the create_scenario() API function. Available options for the different formulations are presented in MDO formulations.

2.e. Choose the type of scenario#

Just before the BaseScenario instantiation, the type of scenario must be chosen, e.g.

scenario_type = 'MDO'

Remind that the different types of scenario can be obtained by means of the get_available_scenario_types() API function:

from gemseo import get_available_scenario_types

get_available_scenario_types()

which yields:

['MDO', 'DOE']

2.f. Instantiate the scenario#

From these different elements, we can instantiate the BaseScenario by means of the create_scenario() API function:

from gemseo import create_scenario

scenario = create_scenario(
    disciplines=disciplines,
    objective_name=objective_name,
    design_space=design_space,
    scenario_type=scenario_type,
    formulation_settings_model=formulation_settings_model,
)

or:

scenario = create_scenario(
    disciplines=disciplines,
    objective_name=objective_name,
    design_space=design_space,
    scenario_type=scenario_type,
    formulation_name=formulation_name,
)

2.g. Get the names of design variables#

We can use the BaseScenario.get_optim_variable_names() method of the BaseScenario to access formulation design variables names in a convenient way:

print(scenario.get_optim_variable_names)

which yields:

['x_local', 'x_shared']

2.g. Get the design space#

The design space can be accessed using the BaseScenario.design_space property of the BaseScenario:

print(scenario.design_space)

which yields:

+----------+-------------+--------+-------------+-------+
| name     | lower_bound | value  | upper_bound | type  |
+----------+-------------+--------+-------------+-------+
| x_local  |      0      | (1+0j) |      10     | float |
| x_shared |     -10     | (4+0j) |      10     | float |
| x_shared |      0      | (3+0j) |      10     | float |
+----------+-------------+--------+-------------+-------+

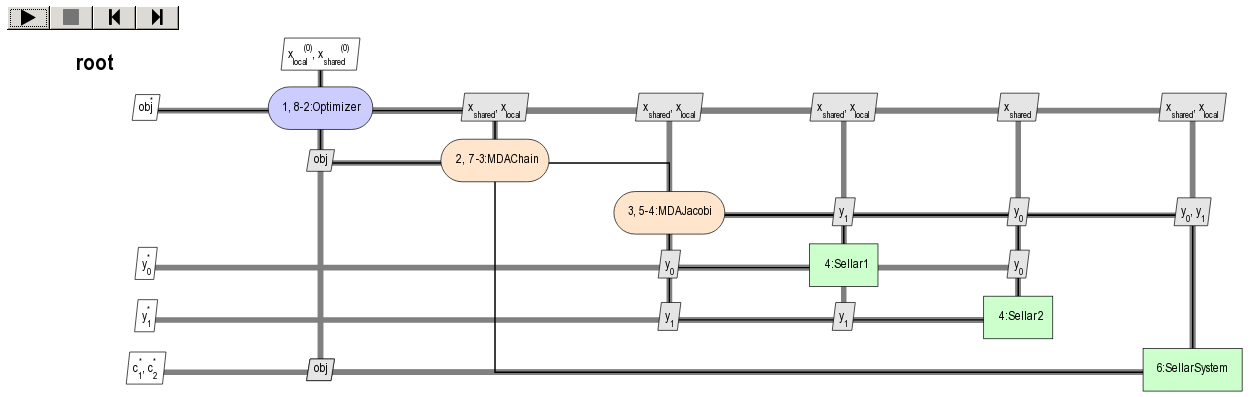

2.h. Visualize the scenario before execute it (XDSM graph)#

The simplest way to visualize how the BaseScenario manages the workflow and dataflow before to execute it is to log them in the console or in a file using GEMSEO's logger.

The method BaseScenario.xdsmize() of the BaseScenario can be used to this aim (monitor=True).

If save_html (default True), will generate a self contained HTML file, that can be automatically open using the option show_html=True. If save_json is True, it will generate a XDSMjs input file XDSM visualization. It will log the status of the workflow if log_workflow_status=True:

scenario.xdsmize(monitor=True, log_workflow_status=True, show_html=False)

which yields:

INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(PENDING), [{MDAJacobi(None), (Sellar1(None), Sellar2(None), ), }, SellarSystem(None), ], }, }
INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(RUNNING), [{MDAJacobi(PENDING), (Sellar1(None), Sellar2(None), ), }, SellarSystem(None), ], }, }
INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(RUNNING), [{MDAJacobi(RUNNING), (Sellar1(PENDING), Sellar2(PENDING), ), }, SellarSystem(None), ], }, }
INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(RUNNING), [{MDAJacobi(RUNNING), (Sellar1(RUNNING), Sellar2(RUNNING), ), }, SellarSystem(None), ], }, }
INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(RUNNING), [{MDAJacobi(RUNNING), (Sellar1(DONE), Sellar2(RUNNING), ), }, SellarSystem(None), ], }, }
INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(RUNNING), [{MDAJacobi(RUNNING), (Sellar1(PENDING), Sellar2(PENDING), ), }, SellarSystem(None), ], }, }
INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(RUNNING), [{MDAJacobi(RUNNING), (Sellar1(PENDING), Sellar2(PENDING), ), }, SellarSystem(None), ], }, }
INFO - 13:21:18 : {MDOScenario(RUNNING), {MDAChain(RUNNING), [{MDAJacobi(RUNNING), (Sellar1(RUNNING), Sellar2(RUNNING), ), }, SellarSystem(None), ], }, }
...

and

Moreover, you can save the XDSM into a PDF file by setting the argument save_pdf of the BaseScenario.xdsmize() method to True and leaving the argument pdf_build to True (if pdf_build is False, only the TikZ and LaTeX files will be generated and it will be up to you to compile the LaTeX file):

scenario.xdsmize(save_pdf=True)

eventually specifying the output directory directory_path='SOME_PATH'.

3. How to execute a scenario?#

When the BaseScenario is created, we can execute it to solve the optimization problem, e.g.

scenario.execute(algo_name="SLSQP", max_iter=100) # MDO case

or sampling the problem, e.g.

doe_scenario = create_scenario(
    disciplines=disciplines,
    formulation=formulation,
    objective_name=objective_name,
    design_space=design_space,
    scenario_type="DOE",
)
doe_scenario.execute(algo_name="PYDOE_LHS", n_samples=100) # DOE case

Note

MDOScenario.execute() and DOEScenario.execute() use an algorithm name (algo_name) as well as settings, passed either as a Pydantic model (settings_model) or as keyword arguments (see BaseScenario.get_available_driver_names() for a complete list of algorithm names). In particular, MDOScenario requires the mandatory setting parameter max_iter corresponding to the maximum number of iterations of the optimization algorithm and MDOScenario the mandatory setting parameter n_samples or other setting parameters to deduce it.

4. How to get the optimum solution?#

Once the BaseScenario is executed, the optimum results can be found in the execution log.

It is also possible to extract them by invoking the BaseScenario.get_optimum() method of the BaseScenario class. It returns a dictionary containing the optimum results for the scenario under consideration:

opt_results = scenario.get_optimum()
print("The solution of P is (x*,f(x*)) = ({}, {})".format(
    opt_results.x_opt, opt_results.f_opt
))

which yields:

The solution of P is (x*,f(x*)) = ([  0.00000000e+00   5.81632893e-01   6.38978246e-10], (0.527289923509+0j)).

5. How to log disciplinary and total execution metrics?#

The BaseScenario.print_execution_metrics() method of the BaseScenario class adds disciplinary and total execution metrics in the logs:

scenario.print_execution_metrics()

which yields:

INFO - 12:50:53 : * BaseScenario Executions statistics *
INFO - 12:50:53 : * Discipline: Sellar1
INFO - 12:50:53 : Executions number: 128
INFO - 12:50:53 : Execution time:  0.00471186637878 s
INFO - 12:50:53 : Linearizations number: 9
INFO - 12:50:53 : * Discipline: Sellar2
INFO - 12:50:53 : Executions number: 128
INFO - 12:50:53 : Execution time:  0.0041139125824 s
INFO - 12:50:53 : Linearizations number: 9
INFO - 12:50:53 : * Discipline: SellarSystem
INFO - 12:50:53 : Executions number: 15
INFO - 12:50:53 : Execution time:  0.00153756141663 s
INFO - 12:50:53 : Linearizations number: 9
INFO - 12:50:53 : Total number of executions calls 271
INFO - 12:50:53 : Total number of linearizations 27

6. How to visualize the scenario execution and results?#

GEMSEO provides many post-processing tools which can be called either by means of the BaseScenario.post_process() method of the BaseScenario class or by means of the execute_post() API function. BaseScenario.post_process() method of the BaseScenario class returns the list of available post-processing methods. Find more information about post-processing and visualization here: How to deal with post-processing.
