Solve an ODE: the Van der Pol problem#
from __future__ import annotations
from typing import TYPE_CHECKING
import matplotlib.pyplot as plt
from numpy import array
from numpy import zeros
from gemseo.algos.ode.factory import ODESolverLibraryFactory
from gemseo.algos.ode.ode_problem import ODEProblem
from gemseo.problems.ode.van_der_pol import VanDerPol
if TYPE_CHECKING:
from gemseo.typing import RealArray
This tutorial describes how to solve an ordinary differential equation (ODE) problem with GEMSEO. A first-order ODE is a differential equation that can be written as
\[\frac{ds(t)}{dt} = f(t, s(t))\]
where the right-hand side of the equation \(f(t, s(t))\) is a function of time \(t\) and of a state \(s(t)\) that returns another state \(\frac{ds(t)}{dt}\) (see Hartman, Philip (2002) [1964], Ordinary differential equations, Classics in Applied Mathematics, vol. 38, Philadelphia: Society for Industrial and Applied Mathematics). To solve this equation, initial conditions must be set:
\[s(t_0) = s_0\]
For this example, we consider the Van der Pol equation as an example of a time-independent problem.
Solving the Van der Pol time-independent problem#
The Van der Pol problem describes the position over time of an oscillator with non-linear damping:
\[\frac{d^2 x(t)}{dt^2} -
\mu (1-x^2(t)) \frac{dx(t)}{dt} + x(t) = 0\]
where \(x(t)\) is the position coordinate at time \(t\), and \(\mu\) is the stiffness parameter.
To solve the Van der Pol problem with GEMSEO, we first need to model this second-order equation as a first-order equation. Let \(y = \frac{dx}{dt}\) and \(s = \begin{pmatrix}x\\y\end{pmatrix}\). Then the Van der Pol problem can be rewritten:
\[\begin{split}\frac{ds(t)}{dt} = f(t, s(t))
= \begin{pmatrix} y(t) \\ \mu (1-x^2(t)) y(t) - x(t) \end{pmatrix}\end{split}\]
Step 1 : Defining the problem#
mu = 5
def evaluate_f(time: float, state: RealArray):
"""Evaluate the right-hand side function :math:`f` of the equation.
Args:
time: Time at which :math:`f` should be evaluated.
state: State for which the :math:`f` should be evaluated.
Returns:
The value of :math:`f` at `time` and `state`.
"""
return array([state[1], mu * state[1] * (1 - state[0] ** 2) - state[0]])
initial_state = array([2, -2 / 3])
initial_time = 0.0
final_time = 50.0
ode_problem = ODEProblem(
func=evaluate_f,
initial_state=initial_state,
times=(initial_time, final_time),
solve_at_algorithm_times=True,
)
By default, the Jacobian of the problem is approximated using the finite difference method. However, it is possible to define an explicit expression of the Jacobian and pass it to the problem. In the case of the Van der Pol problem, this would be:
def evaluate_jac(time: float, state: RealArray):
"""Evaluate the Jacobian of the function :math:`f`.
Args:
time: Time at which the Jacobian should be evaluated.
state: State for which the Jacobian should be evaluated.
Returns:
The value of the Jacobian at `time` and `state`.
"""
jac = zeros((2, 2))
jac[1, 0] = -mu * 2 * state[1] * state[0] - 1
jac[0, 1] = 1
jac[1, 1] = mu * (1 - state[0] * state[0])
return jac
ode_problem_with_jacobian = ODEProblem(
evaluate_f,
initial_state,
(initial_time, final_time),
jac_function_wrt_state=evaluate_jac,
)
Step 2: Solving the ODE problem#
Whether the Jacobian is specified or not, once the problem is defined, the ODE
solver is called on the ODEProblem by using the ODESolversFactory:
ODESolverLibraryFactory().execute(ode_problem, algo_name="RK45")
ODESolverLibraryFactory().execute(ode_problem_with_jacobian, algo_name="RK45")
ODEResult(times=array([0.00000000e+00, 3.74532749e-02, 1.03428167e-01, 1.72202666e-01,
2.49134295e-01, 3.37974639e-01, 4.45392319e-01, 5.81153227e-01,
7.61409032e-01, 1.00893026e+00, 1.31816564e+00, 1.63105754e+00,
1.92924608e+00, 2.24281802e+00, 2.59456065e+00, 2.97621895e+00,
3.39050042e+00, 3.86048412e+00, 4.44478615e+00, 4.69135185e+00,
4.84571211e+00, 5.00007236e+00, 5.07314736e+00, 5.14622236e+00,
5.20628412e+00, 5.26634588e+00, 5.31863072e+00, 5.37091555e+00,
5.42944041e+00, 5.50218147e+00, 5.59077871e+00, 5.70214103e+00,
5.84768592e+00, 6.04941392e+00, 6.35882583e+00, 6.63377208e+00,
6.90871832e+00, 7.18731601e+00, 7.47587710e+00, 7.78663249e+00,
8.12193118e+00, 8.47939066e+00, 8.86396069e+00, 9.28743242e+00,
9.77435635e+00, 1.02491719e+01, 1.05013670e+01, 1.06512736e+01,
1.08011802e+01, 1.08771177e+01, 1.09530552e+01, 1.10132681e+01,
1.10734810e+01, 1.11253580e+01, 1.11772350e+01, 1.12362346e+01,
1.13093179e+01, 1.13984316e+01, 1.15105216e+01, 1.16572100e+01,
1.18608945e+01, 1.21748138e+01, 1.24467397e+01, 1.27186657e+01,
1.29981260e+01, 1.32897352e+01, 1.36018848e+01, 1.39369708e+01,
1.42948273e+01, 1.46805863e+01, 1.51056174e+01, 1.55953182e+01,
1.60614872e+01, 1.63105618e+01, 1.64584845e+01, 1.66064072e+01,
1.66787060e+01, 1.67510048e+01, 1.68130053e+01, 1.68750058e+01,
1.69273591e+01, 1.69797124e+01, 1.70381842e+01, 1.71108942e+01,
1.71994403e+01, 1.73107277e+01, 1.74561489e+01, 1.76576578e+01,
1.79665784e+01, 1.82419129e+01, 1.85172475e+01, 1.87958242e+01,
1.90841554e+01, 1.93948765e+01, 1.97303185e+01, 2.00878750e+01,
2.04725021e+01, 2.08960759e+01, 2.13831962e+01, 2.18573634e+01,
2.21093633e+01, 2.22591224e+01, 2.24088815e+01, 2.24848402e+01,
2.25607989e+01, 2.26209580e+01, 2.26811171e+01, 2.27329936e+01,
2.27848702e+01, 2.28438721e+01, 2.29169574e+01, 2.30060740e+01,
2.31181680e+01, 2.32648621e+01, 2.34685561e+01, 2.37824982e+01,
2.40544125e+01, 2.43263269e+01, 2.46057957e+01, 2.48974259e+01,
2.52095892e+01, 2.55446813e+01, 2.59025480e+01, 2.62883237e+01,
2.67133785e+01, 2.72031227e+01, 2.76691667e+01, 2.79181865e+01,
2.80660802e+01, 2.82139738e+01, 2.82864685e+01, 2.83589632e+01,
2.84208246e+01, 2.84826860e+01, 2.85350130e+01, 2.85873400e+01,
2.86458433e+01, 2.87185763e+01, 2.88071568e+01, 2.89184928e+01,
2.90639904e+01, 2.92656299e+01, 2.95748477e+01, 2.98499848e+01,
3.01251219e+01, 3.04037521e+01, 3.06922812e+01, 3.10030948e+01,
3.13385224e+01, 3.16961024e+01, 3.20808051e+01, 3.25044774e+01,
3.29917723e+01, 3.34653659e+01, 3.37171885e+01, 3.38668170e+01,
3.40164454e+01, 3.40921259e+01, 3.41678063e+01, 3.42281267e+01,
3.42884472e+01, 3.43403581e+01, 3.43922691e+01, 3.44512341e+01,
3.45242937e+01, 3.46133708e+01, 3.47254090e+01, 3.48720149e+01,
3.50755574e+01, 3.53891472e+01, 3.56613041e+01, 3.59334609e+01,
3.62128649e+01, 3.65042628e+01, 3.68163278e+01, 3.71514459e+01,
3.75092906e+01, 3.78949860e+01, 3.83199373e+01, 3.88094972e+01,
3.92760755e+01, 3.95253273e+01, 3.96733450e+01, 3.98213626e+01,
3.98930355e+01, 3.99647084e+01, 4.00271482e+01, 4.00895880e+01,
4.01420268e+01, 4.01944656e+01, 4.02528341e+01, 4.03254689e+01,
4.04139021e+01, 4.05250303e+01, 4.06702014e+01, 4.08712824e+01,
4.11792328e+01, 4.14552096e+01, 4.17311864e+01, 4.20095911e+01,
4.22972773e+01, 4.26076948e+01, 4.29431828e+01, 4.33006627e+01,
4.36850438e+01, 4.41082958e+01, 4.45948478e+01, 4.50709142e+01,
4.53234712e+01, 4.54736619e+01, 4.56238526e+01, 4.56989836e+01,
4.57741146e+01, 4.58349486e+01, 4.58957825e+01, 4.59477578e+01,
4.59997331e+01, 4.60586192e+01, 4.61316207e+01, 4.62206109e+01,
4.63325270e+01, 4.64789422e+01, 4.66821594e+01, 4.69949923e+01,
4.72676485e+01, 4.75403046e+01, 4.78195481e+01, 4.81104158e+01,
4.84222296e+01, 4.87573635e+01, 4.91151157e+01, 4.95005786e+01,
4.99252199e+01, 5.00000000e+01]), state_trajectories=array([], dtype=float64), n_func_evaluations=1730, n_jac_evaluations=0, algorithm_has_converged=True, algorithm_name='RK45', algorithm_settings={'first_step': None, 'max_step': inf, 'rtol': 0.001, 'atol': 1e-06}, algorithm_termination_message='The solver successfully reached the end of the integration interval.', jac_wrt_desvar=array([], dtype=float64), jac_wrt_initial_state=array([], dtype=float64), terminal_event_index=None, final_state=array([[ 1.26847016],
[-0.34017088]]), termination_time=50.0)
By default, the Runge-Kutta method of order 4(5) ("RK45") is used, but other
algorithms can be applied by specifying the option algo_name in
ODESolverLibraryFactory().execute().
See more information on available algorithms in
the SciPy documentation.
Step 3: Examining the results#
The convergence of the algorithm can be known by examining
ODEProblem.algorithm_has_converged and ODEProblem.solver_message.
The solution of the ODEProblem on the user-specified time interval
can be accessed through the vectors ODEProblem.states and
ODEProblem.times_eval.

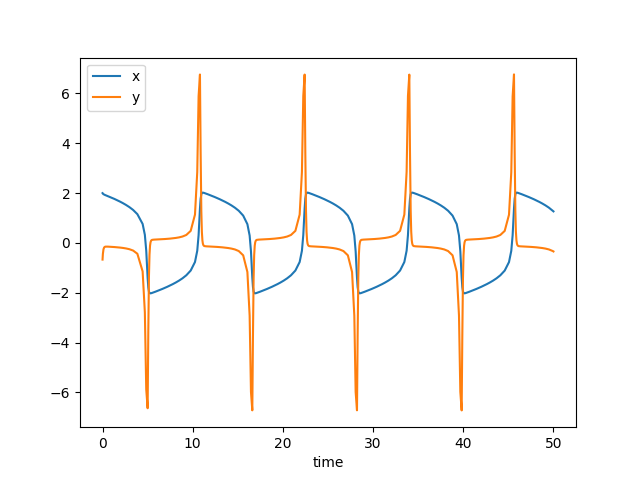

plt.plot(ode_problem.result.times, ode_problem.result.state_trajectories[0], label="x")
plt.plot(ode_problem.result.times, ode_problem.result.state_trajectories[1], label="y")
plt.legend()
plt.xlabel("time")
plt.show()
Shortcut#
The class VanDerPol is available in the package
gemseo.problems.ode, so it just needs to be imported to be used.
ode_problem = VanDerPol()
ODESolverLibraryFactory().execute(ode_problem, algo_name="RK45")
