Polynomial chaos expansion (PCE)

A PCERegressor is a PCE model based on OpenTURNS.

from __future__ import annotations

from matplotlib import pyplot as plt
from numpy import array

from gemseo import create_discipline
from gemseo import create_parameter_space
from gemseo import sample_disciplines
from gemseo.mlearning import create_regression_model

Problem

In this example, we represent the function \(f(x)=(6x-2)^2\sin(12x-4)\) [FSK08] by the AnalyticDiscipline

discipline = create_discipline(
    "AnalyticDiscipline",
    name="f",
    expressions={"y": "(6*x-2)**2*sin(12*x-4)"},
)

and seek to approximate it over the input space

input_space = create_parameter_space()
input_space.add_random_variable("x", "OTUniformDistribution")

To do this, we create a training dataset with 6 equispaced points:

training_dataset = sample_disciplines(
    [discipline], input_space, "y", algo_name="PYDOE_FULLFACT", n_samples=10
)

INFO - 16:19:13: *** Start Sampling execution ***
INFO - 16:19:13: Sampling
INFO - 16:19:13:    Disciplines: f
INFO - 16:19:13:    MDO formulation: MDF
INFO - 16:19:13: Running the algorithm PYDOE_FULLFACT:
INFO - 16:19:13:     10%|█         | 1/10 [00:00<00:00, 586.78 it/sec]
INFO - 16:19:13:     20%|██        | 2/10 [00:00<00:00, 875.55 it/sec]
INFO - 16:19:13:     30%|███       | 3/10 [00:00<00:00, 1067.34 it/sec]
INFO - 16:19:13:     40%|████      | 4/10 [00:00<00:00, 1213.72 it/sec]
INFO - 16:19:13:     50%|█████     | 5/10 [00:00<00:00, 1318.47 it/sec]
INFO - 16:19:13:     60%|██████    | 6/10 [00:00<00:00, 1404.11 it/sec]
INFO - 16:19:13:     70%|███████   | 7/10 [00:00<00:00, 1473.90 it/sec]
INFO - 16:19:13:     80%|████████  | 8/10 [00:00<00:00, 1530.00 it/sec]
INFO - 16:19:13:     90%|█████████ | 9/10 [00:00<00:00, 1585.95 it/sec]
INFO - 16:19:13:    100%|██████████| 10/10 [00:00<00:00, 1588.21 it/sec]
INFO - 16:19:13: *** End Sampling execution ***

Basics

Training

Then, we train an PCE regression model from these samples:

model = create_regression_model("PCERegressor", training_dataset)
model.learn()

WARNING - 16:19:13: Remove input data transformation because PCERegressor does not support transformers.

Prediction

Once it is built, we can predict the output value of \(f\) at a new input point:

input_value = {"x": array([0.65])}
output_value = model.predict(input_value)
output_value

{'y': array([-0.81106394])}

as well as its Jacobian value:

jacobian_value = model.predict_jacobian(input_value)
jacobian_value

{'y': {'x': array([[18.2279622]])}}

Plotting

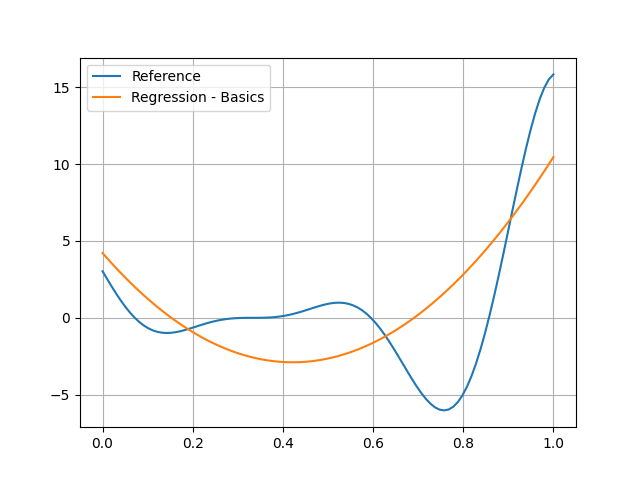

Of course, you can see that the quadratic model is no good at all here:

test_dataset = sample_disciplines(
    [discipline], input_space, "y", algo_name="PYDOE_FULLFACT", n_samples=100
)
input_data = test_dataset.get_view(variable_names=model.input_names).to_numpy()
reference_output_data = test_dataset.get_view(variable_names="y").to_numpy().ravel()
predicted_output_data = model.predict(input_data).ravel()
plt.plot(input_data.ravel(), reference_output_data, label="Reference")
plt.plot(input_data.ravel(), predicted_output_data, label="Regression - Basics")
plt.grid()
plt.legend()
plt.show()

INFO - 16:19:13: *** Start Sampling execution ***
INFO - 16:19:13: Sampling
INFO - 16:19:13:    Disciplines: f
INFO - 16:19:13:    MDO formulation: MDF
INFO - 16:19:13: Running the algorithm PYDOE_FULLFACT:
INFO - 16:19:13:      1%|          | 1/100 [00:00<00:00, 2970.47 it/sec]
INFO - 16:19:13:      2%|▏         | 2/100 [00:00<00:00, 2367.66 it/sec]
INFO - 16:19:13:      3%|▎         | 3/100 [00:00<00:00, 2244.94 it/sec]
INFO - 16:19:13:      4%|▍         | 4/100 [00:00<00:00, 2195.97 it/sec]
INFO - 16:19:13:      5%|▌         | 5/100 [00:00<00:00, 2171.41 it/sec]
INFO - 16:19:13:      6%|▌         | 6/100 [00:00<00:00, 2163.87 it/sec]
INFO - 16:19:13:      7%|▋         | 7/100 [00:00<00:00, 2156.30 it/sec]
INFO - 16:19:13:      8%|▊         | 8/100 [00:00<00:00, 2146.25 it/sec]
INFO - 16:19:13:      9%|▉         | 9/100 [00:00<00:00, 2155.22 it/sec]
INFO - 16:19:13:     10%|█         | 10/100 [00:00<00:00, 2149.49 it/sec]
INFO - 16:19:13:     11%|█         | 11/100 [00:00<00:00, 2152.43 it/sec]
INFO - 16:19:13:     12%|█▏        | 12/100 [00:00<00:00, 2140.68 it/sec]
INFO - 16:19:13:     13%|█▎        | 13/100 [00:00<00:00, 2146.78 it/sec]
INFO - 16:19:13:     14%|█▍        | 14/100 [00:00<00:00, 2134.66 it/sec]
INFO - 16:19:13:     15%|█▌        | 15/100 [00:00<00:00, 2141.26 it/sec]
INFO - 16:19:13:     16%|█▌        | 16/100 [00:00<00:00, 2132.13 it/sec]
INFO - 16:19:13:     17%|█▋        | 17/100 [00:00<00:00, 2134.12 it/sec]
INFO - 16:19:13:     18%|█▊        | 18/100 [00:00<00:00, 2133.78 it/sec]
INFO - 16:19:13:     19%|█▉        | 19/100 [00:00<00:00, 2132.39 it/sec]
INFO - 16:19:13:     20%|██        | 20/100 [00:00<00:00, 2132.50 it/sec]
INFO - 16:19:13:     21%|██        | 21/100 [00:00<00:00, 2135.70 it/sec]
INFO - 16:19:13:     22%|██▏       | 22/100 [00:00<00:00, 2135.10 it/sec]
INFO - 16:19:13:     23%|██▎       | 23/100 [00:00<00:00, 2135.12 it/sec]
INFO - 16:19:13:     24%|██▍       | 24/100 [00:00<00:00, 2135.91 it/sec]
INFO - 16:19:13:     25%|██▌       | 25/100 [00:00<00:00, 2137.29 it/sec]
INFO - 16:19:13:     26%|██▌       | 26/100 [00:00<00:00, 2138.99 it/sec]
INFO - 16:19:13:     27%|██▋       | 27/100 [00:00<00:00, 2138.01 it/sec]
INFO - 16:19:13:     28%|██▊       | 28/100 [00:00<00:00, 2137.85 it/sec]
INFO - 16:19:13:     29%|██▉       | 29/100 [00:00<00:00, 2134.77 it/sec]
INFO - 16:19:13:     30%|███       | 30/100 [00:00<00:00, 2134.83 it/sec]
INFO - 16:19:13:     31%|███       | 31/100 [00:00<00:00, 2133.74 it/sec]
INFO - 16:19:13:     32%|███▏      | 32/100 [00:00<00:00, 2133.25 it/sec]
INFO - 16:19:13:     33%|███▎      | 33/100 [00:00<00:00, 2136.94 it/sec]
INFO - 16:19:13:     34%|███▍      | 34/100 [00:00<00:00, 2131.16 it/sec]
INFO - 16:19:13:     35%|███▌      | 35/100 [00:00<00:00, 2135.03 it/sec]
INFO - 16:19:13:     36%|███▌      | 36/100 [00:00<00:00, 2131.85 it/sec]
INFO - 16:19:13:     37%|███▋      | 37/100 [00:00<00:00, 2135.74 it/sec]
INFO - 16:19:13:     38%|███▊      | 38/100 [00:00<00:00, 2133.71 it/sec]
INFO - 16:19:13:     39%|███▉      | 39/100 [00:00<00:00, 2137.27 it/sec]
INFO - 16:19:13:     40%|████      | 40/100 [00:00<00:00, 2135.67 it/sec]
INFO - 16:19:13:     41%|████      | 41/100 [00:00<00:00, 2139.15 it/sec]
INFO - 16:19:13:     42%|████▏     | 42/100 [00:00<00:00, 2137.28 it/sec]
INFO - 16:19:13:     43%|████▎     | 43/100 [00:00<00:00, 2139.75 it/sec]
INFO - 16:19:13:     44%|████▍     | 44/100 [00:00<00:00, 2136.63 it/sec]
INFO - 16:19:13:     45%|████▌     | 45/100 [00:00<00:00, 2139.20 it/sec]
INFO - 16:19:13:     46%|████▌     | 46/100 [00:00<00:00, 2135.69 it/sec]
INFO - 16:19:13:     47%|████▋     | 47/100 [00:00<00:00, 2137.91 it/sec]
INFO - 16:19:13:     48%|████▊     | 48/100 [00:00<00:00, 2138.04 it/sec]
INFO - 16:19:13:     49%|████▉     | 49/100 [00:00<00:00, 2137.55 it/sec]
INFO - 16:19:13:     50%|█████     | 50/100 [00:00<00:00, 2137.49 it/sec]
INFO - 16:19:13:     51%|█████     | 51/100 [00:00<00:00, 2136.85 it/sec]
INFO - 16:19:13:     52%|█████▏    | 52/100 [00:00<00:00, 2129.84 it/sec]
INFO - 16:19:13:     53%|█████▎    | 53/100 [00:00<00:00, 2128.99 it/sec]
INFO - 16:19:13:     54%|█████▍    | 54/100 [00:00<00:00, 2128.49 it/sec]
INFO - 16:19:13:     55%|█████▌    | 55/100 [00:00<00:00, 2128.75 it/sec]
INFO - 16:19:13:     56%|█████▌    | 56/100 [00:00<00:00, 2128.76 it/sec]
INFO - 16:19:13:     57%|█████▋    | 57/100 [00:00<00:00, 2127.33 it/sec]
INFO - 16:19:13:     58%|█████▊    | 58/100 [00:00<00:00, 2126.59 it/sec]
INFO - 16:19:13:     59%|█████▉    | 59/100 [00:00<00:00, 2125.70 it/sec]
INFO - 16:19:13:     60%|██████    | 60/100 [00:00<00:00, 2125.44 it/sec]
INFO - 16:19:13:     61%|██████    | 61/100 [00:00<00:00, 2121.57 it/sec]
INFO - 16:19:13:     62%|██████▏   | 62/100 [00:00<00:00, 2120.94 it/sec]
INFO - 16:19:13:     63%|██████▎   | 63/100 [00:00<00:00, 2122.03 it/sec]
INFO - 16:19:13:     64%|██████▍   | 64/100 [00:00<00:00, 2122.84 it/sec]
INFO - 16:19:13:     65%|██████▌   | 65/100 [00:00<00:00, 2122.28 it/sec]
INFO - 16:19:13:     66%|██████▌   | 66/100 [00:00<00:00, 2121.18 it/sec]
INFO - 16:19:13:     67%|██████▋   | 67/100 [00:00<00:00, 2118.37 it/sec]
INFO - 16:19:13:     68%|██████▊   | 68/100 [00:00<00:00, 2118.26 it/sec]
INFO - 16:19:13:     69%|██████▉   | 69/100 [00:00<00:00, 2117.84 it/sec]
INFO - 16:19:13:     70%|███████   | 70/100 [00:00<00:00, 2118.00 it/sec]
INFO - 16:19:13:     71%|███████   | 71/100 [00:00<00:00, 2117.91 it/sec]
INFO - 16:19:13:     72%|███████▏  | 72/100 [00:00<00:00, 2118.08 it/sec]
INFO - 16:19:13:     73%|███████▎  | 73/100 [00:00<00:00, 2119.61 it/sec]
INFO - 16:19:13:     74%|███████▍  | 74/100 [00:00<00:00, 2117.58 it/sec]
INFO - 16:19:13:     75%|███████▌  | 75/100 [00:00<00:00, 2119.26 it/sec]
INFO - 16:19:13:     76%|███████▌  | 76/100 [00:00<00:00, 2117.18 it/sec]
INFO - 16:19:13:     77%|███████▋  | 77/100 [00:00<00:00, 2119.03 it/sec]
INFO - 16:19:13:     78%|███████▊  | 78/100 [00:00<00:00, 2118.10 it/sec]
INFO - 16:19:13:     79%|███████▉  | 79/100 [00:00<00:00, 2119.72 it/sec]
INFO - 16:19:13:     80%|████████  | 80/100 [00:00<00:00, 2119.79 it/sec]
INFO - 16:19:13:     81%|████████  | 81/100 [00:00<00:00, 2121.59 it/sec]
INFO - 16:19:13:     82%|████████▏ | 82/100 [00:00<00:00, 2121.18 it/sec]
INFO - 16:19:13:     83%|████████▎ | 83/100 [00:00<00:00, 2120.94 it/sec]
INFO - 16:19:13:     84%|████████▍ | 84/100 [00:00<00:00, 2119.60 it/sec]
INFO - 16:19:13:     85%|████████▌ | 85/100 [00:00<00:00, 2121.10 it/sec]
INFO - 16:19:13:     86%|████████▌ | 86/100 [00:00<00:00, 2119.06 it/sec]
INFO - 16:19:13:     87%|████████▋ | 87/100 [00:00<00:00, 2120.48 it/sec]
INFO - 16:19:13:     88%|████████▊ | 88/100 [00:00<00:00, 2119.08 it/sec]
INFO - 16:19:13:     89%|████████▉ | 89/100 [00:00<00:00, 2120.55 it/sec]
INFO - 16:19:13:     90%|█████████ | 90/100 [00:00<00:00, 2120.79 it/sec]
INFO - 16:19:13:     91%|█████████ | 91/100 [00:00<00:00, 2120.81 it/sec]
INFO - 16:19:13:     92%|█████████▏| 92/100 [00:00<00:00, 2120.93 it/sec]
INFO - 16:19:13:     93%|█████████▎| 93/100 [00:00<00:00, 2121.23 it/sec]
INFO - 16:19:13:     94%|█████████▍| 94/100 [00:00<00:00, 2121.52 it/sec]
INFO - 16:19:13:     95%|█████████▌| 95/100 [00:00<00:00, 2120.69 it/sec]
INFO - 16:19:13:     96%|█████████▌| 96/100 [00:00<00:00, 2121.05 it/sec]
INFO - 16:19:13:     97%|█████████▋| 97/100 [00:00<00:00, 2120.99 it/sec]
INFO - 16:19:13:     98%|█████████▊| 98/100 [00:00<00:00, 2121.08 it/sec]
INFO - 16:19:13:     99%|█████████▉| 99/100 [00:00<00:00, 2121.34 it/sec]
INFO - 16:19:13:    100%|██████████| 100/100 [00:00<00:00, 2103.76 it/sec]
INFO - 16:19:13: *** End Sampling execution ***

Settings

The PCERegressor has many options defined in the PCERegressor_Settings Pydantic model.

Degree

model = create_regression_model("PCERegressor", training_dataset, degree=3)
model.learn()

WARNING - 16:19:13: Remove input data transformation because PCERegressor does not support transformers.

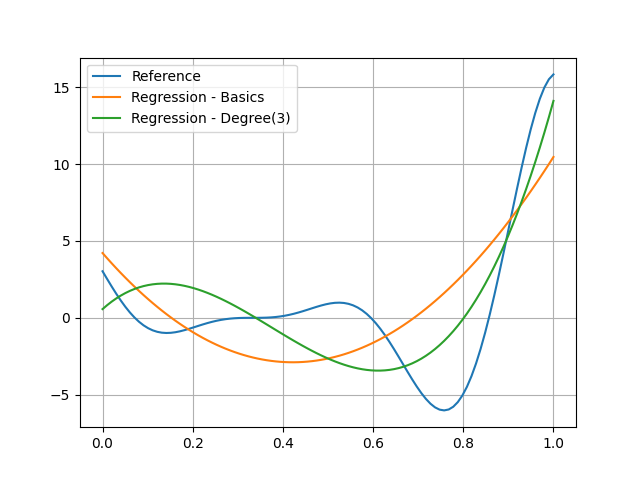

and see that this model seems to be better:

predicted_output_data_ = model.predict(input_data).ravel()
plt.plot(input_data.ravel(), reference_output_data, label="Reference")
plt.plot(input_data.ravel(), predicted_output_data, label="Regression - Basics")
plt.plot(input_data.ravel(), predicted_output_data_, label="Regression - Degree(3)")
plt.grid()
plt.legend()
plt.show()
