Solve a 2D L-shape topology optimization problem#
from __future__ import annotations
from gemseo import create_scenario
from gemseo.problems.topology_optimization.topopt_initialize import (
initialize_design_space_and_discipline_to,
)
Setup the topology optimization problem#
Define the target volume fraction:
volume_fraction = 0.3
Define the problem type:
problem_name = "L-Shape"
Define the number of elements in the x- and y- directions:
n_x = 25
n_y = 25
Define the full material Young's modulus and Poisson's ratio:
e0 = 1
nu = 0.3
Define the penalty of the SIMP approach:
penalty = 3
Define the minimum member size in the solution:
min_member_size = 1.5
Instantiate the DesignSpace and the disciplines:
design_space, disciplines = initialize_design_space_and_discipline_to(
problem=problem_name,
n_x=n_x,
n_y=n_y,
e0=e0,
nu=nu,
penalty=penalty,
min_member_size=min_member_size,
vf0=volume_fraction,
)
Solve the topology optimization problem#
Generate an MDOScenario:
scenario = create_scenario(
disciplines,
"compliance",
design_space,
formulation_name="DisciplinaryOpt",
)
Add the volume fraction constraint to the scenario:
scenario.add_constraint(
"volume fraction", constraint_type="ineq", value=volume_fraction
)
Generate the XDSM
scenario.xdsmize(save_html=False)
Execute the scenario
scenario.execute(algo_name="NLOPT_MMA", max_iter=200)
INFO - 16:13:38: *** Start MDOScenario execution ***
INFO - 16:13:38: MDOScenario
INFO - 16:13:38: Disciplines: DensityFilter FiniteElementAnalysis MaterialModelInterpolation VolumeFraction
INFO - 16:13:38: MDO formulation: DisciplinaryOpt
INFO - 16:13:38: Optimization problem:
INFO - 16:13:38: minimize compliance(x)
INFO - 16:13:38: with respect to x
INFO - 16:13:38: under the inequality constraints
INFO - 16:13:38: volume fraction(x) <= 0.3
INFO - 16:13:38: Solving optimization problem with algorithm NLOPT_MMA:
INFO - 16:13:38: 1%| | 2/200 [00:00<00:03, 59.49 it/sec, feas=True, obj=2.23e+3]
INFO - 16:13:38: 2%|▏ | 3/200 [00:00<00:02, 66.88 it/sec, feas=True, obj=1.96e+3]
INFO - 16:13:38: 2%|▏ | 4/200 [00:00<00:02, 72.05 it/sec, feas=True, obj=1.75e+3]
INFO - 16:13:38: 2%|▎ | 5/200 [00:00<00:02, 74.54 it/sec, feas=True, obj=1.57e+3]
INFO - 16:13:38: 3%|▎ | 6/200 [00:00<00:02, 76.13 it/sec, feas=True, obj=1.2e+3]
INFO - 16:13:38: 4%|▎ | 7/200 [00:00<00:02, 76.73 it/sec, feas=True, obj=963]
INFO - 16:13:39: 4%|▍ | 8/200 [00:00<00:02, 78.08 it/sec, feas=True, obj=624]
INFO - 16:13:39: 4%|▍ | 9/200 [00:00<00:02, 78.71 it/sec, feas=True, obj=497]
INFO - 16:13:39: 5%|▌ | 10/200 [00:00<00:02, 79.29 it/sec, feas=True, obj=395]
INFO - 16:13:39: 6%|▌ | 11/200 [00:00<00:02, 80.18 it/sec, feas=True, obj=306]
INFO - 16:13:39: 6%|▌ | 12/200 [00:00<00:02, 81.09 it/sec, feas=True, obj=251]
INFO - 16:13:39: 6%|▋ | 13/200 [00:00<00:02, 81.90 it/sec, feas=True, obj=225]
INFO - 16:13:39: 7%|▋ | 14/200 [00:00<00:02, 82.65 it/sec, feas=True, obj=209]
INFO - 16:13:39: 8%|▊ | 15/200 [00:00<00:02, 83.20 it/sec, feas=True, obj=201]
INFO - 16:13:39: 8%|▊ | 16/200 [00:00<00:02, 83.84 it/sec, feas=True, obj=195]
INFO - 16:13:39: 8%|▊ | 17/200 [00:00<00:02, 84.11 it/sec, feas=True, obj=190]
INFO - 16:13:39: 9%|▉ | 18/200 [00:00<00:02, 84.65 it/sec, feas=True, obj=186]
INFO - 16:13:39: 10%|▉ | 19/200 [00:00<00:02, 85.11 it/sec, feas=True, obj=182]
INFO - 16:13:39: 10%|█ | 20/200 [00:00<00:02, 85.42 it/sec, feas=True, obj=178]
INFO - 16:13:39: 10%|█ | 21/200 [00:00<00:02, 85.72 it/sec, feas=True, obj=174]
INFO - 16:13:39: 11%|█ | 22/200 [00:00<00:02, 86.13 it/sec, feas=True, obj=169]
INFO - 16:13:39: 12%|█▏ | 23/200 [00:00<00:02, 86.24 it/sec, feas=True, obj=164]
INFO - 16:13:39: 12%|█▏ | 24/200 [00:00<00:02, 86.78 it/sec, feas=True, obj=161]
INFO - 16:13:39: 12%|█▎ | 25/200 [00:00<00:02, 86.89 it/sec, feas=True, obj=159]
INFO - 16:13:39: 13%|█▎ | 26/200 [00:00<00:01, 87.17 it/sec, feas=True, obj=157]
INFO - 16:13:39: 14%|█▎ | 27/200 [00:00<00:01, 87.52 it/sec, feas=True, obj=156]
INFO - 16:13:39: 14%|█▍ | 28/200 [00:00<00:01, 87.81 it/sec, feas=True, obj=155]
INFO - 16:13:39: 14%|█▍ | 29/200 [00:00<00:01, 88.08 it/sec, feas=True, obj=154]
INFO - 16:13:39: 15%|█▌ | 30/200 [00:00<00:01, 88.23 it/sec, feas=True, obj=154]
INFO - 16:13:39: 16%|█▌ | 31/200 [00:00<00:01, 88.38 it/sec, feas=True, obj=153]
INFO - 16:13:39: 16%|█▌ | 32/200 [00:00<00:01, 88.60 it/sec, feas=True, obj=153]
INFO - 16:13:39: 16%|█▋ | 33/200 [00:00<00:01, 88.94 it/sec, feas=True, obj=152]
INFO - 16:13:39: 17%|█▋ | 34/200 [00:00<00:01, 89.14 it/sec, feas=True, obj=152]
INFO - 16:13:39: 18%|█▊ | 35/200 [00:00<00:01, 89.26 it/sec, feas=True, obj=152]
INFO - 16:13:39: 18%|█▊ | 36/200 [00:00<00:01, 89.35 it/sec, feas=True, obj=152]
INFO - 16:13:39: 18%|█▊ | 37/200 [00:00<00:01, 89.42 it/sec, feas=True, obj=152]
INFO - 16:13:39: 19%|█▉ | 38/200 [00:00<00:01, 89.51 it/sec, feas=True, obj=152]
INFO - 16:13:39: 20%|█▉ | 39/200 [00:00<00:01, 89.64 it/sec, feas=True, obj=152]
INFO - 16:13:39: 20%|██ | 40/200 [00:00<00:01, 89.72 it/sec, feas=True, obj=152]
INFO - 16:13:39: 20%|██ | 41/200 [00:00<00:01, 89.91 it/sec, feas=True, obj=152]
INFO - 16:13:39: 21%|██ | 42/200 [00:00<00:01, 90.06 it/sec, feas=True, obj=152]
INFO - 16:13:39: 22%|██▏ | 43/200 [00:00<00:01, 90.22 it/sec, feas=True, obj=152]
INFO - 16:13:39: 22%|██▏ | 44/200 [00:00<00:01, 90.37 it/sec, feas=True, obj=152]
INFO - 16:13:39: 22%|██▎ | 45/200 [00:00<00:01, 90.67 it/sec, feas=True, obj=152]
INFO - 16:13:39: 23%|██▎ | 46/200 [00:00<00:01, 90.88 it/sec, feas=True, obj=152]
INFO - 16:13:39: 24%|██▎ | 47/200 [00:00<00:01, 91.21 it/sec, feas=True, obj=152]
INFO - 16:13:39: 24%|██▍ | 48/200 [00:00<00:01, 91.54 it/sec, feas=True, obj=152]
INFO - 16:13:39: 24%|██▍ | 49/200 [00:00<00:01, 91.89 it/sec, feas=True, obj=152]
INFO - 16:13:39: 25%|██▌ | 50/200 [00:00<00:01, 92.15 it/sec, feas=True, obj=152]
INFO - 16:13:39: 26%|██▌ | 51/200 [00:00<00:01, 92.30 it/sec, feas=True, obj=152]
INFO - 16:13:39: 26%|██▌ | 52/200 [00:00<00:01, 92.38 it/sec, feas=True, obj=152]
INFO - 16:13:39: 26%|██▋ | 53/200 [00:00<00:01, 92.60 it/sec, feas=True, obj=152]
INFO - 16:13:39: 27%|██▋ | 54/200 [00:00<00:01, 92.79 it/sec, feas=True, obj=152]
INFO - 16:13:39: 28%|██▊ | 55/200 [00:00<00:01, 92.96 it/sec, feas=True, obj=152]
INFO - 16:13:39: 28%|██▊ | 56/200 [00:00<00:01, 93.17 it/sec, feas=True, obj=152]
INFO - 16:13:39: 28%|██▊ | 57/200 [00:00<00:01, 93.33 it/sec, feas=True, obj=152]
INFO - 16:13:39: 29%|██▉ | 58/200 [00:00<00:01, 93.48 it/sec, feas=True, obj=152]
INFO - 16:13:39: 30%|██▉ | 59/200 [00:00<00:01, 93.62 it/sec, feas=True, obj=152]
INFO - 16:13:39: 30%|███ | 60/200 [00:00<00:01, 93.77 it/sec, feas=True, obj=152]
INFO - 16:13:39: 30%|███ | 61/200 [00:00<00:01, 93.91 it/sec, feas=True, obj=152]
INFO - 16:13:39: 31%|███ | 62/200 [00:00<00:01, 94.07 it/sec, feas=True, obj=152]
INFO - 16:13:39: 32%|███▏ | 63/200 [00:00<00:01, 94.20 it/sec, feas=True, obj=152]
INFO - 16:13:39: 32%|███▏ | 64/200 [00:00<00:01, 94.30 it/sec, feas=True, obj=152]
INFO - 16:13:39: 32%|███▎ | 65/200 [00:00<00:01, 94.35 it/sec, feas=True, obj=152]
INFO - 16:13:39: 33%|███▎ | 66/200 [00:00<00:01, 94.43 it/sec, feas=True, obj=152]
INFO - 16:13:39: 34%|███▎ | 67/200 [00:00<00:01, 94.47 it/sec, feas=True, obj=152]
INFO - 16:13:39: 34%|███▍ | 68/200 [00:00<00:01, 94.52 it/sec, feas=True, obj=152]
INFO - 16:13:39: 34%|███▍ | 69/200 [00:00<00:01, 94.55 it/sec, feas=True, obj=152]
INFO - 16:13:39: 35%|███▌ | 70/200 [00:00<00:01, 94.58 it/sec, feas=True, obj=152]
INFO - 16:13:39: 36%|███▌ | 71/200 [00:00<00:01, 94.63 it/sec, feas=True, obj=152]
INFO - 16:13:39: 36%|███▌ | 72/200 [00:00<00:01, 94.68 it/sec, feas=True, obj=152]
INFO - 16:13:39: 36%|███▋ | 73/200 [00:00<00:01, 94.73 it/sec, feas=True, obj=152]
INFO - 16:13:39: 37%|███▋ | 74/200 [00:00<00:01, 94.76 it/sec, feas=True, obj=152]
INFO - 16:13:39: 38%|███▊ | 75/200 [00:00<00:01, 94.88 it/sec, feas=True, obj=152]
INFO - 16:13:39: 38%|███▊ | 76/200 [00:00<00:01, 94.93 it/sec, feas=True, obj=152]
INFO - 16:13:39: 38%|███▊ | 77/200 [00:00<00:01, 94.96 it/sec, feas=True, obj=152]
INFO - 16:13:39: 39%|███▉ | 78/200 [00:00<00:01, 95.00 it/sec, feas=True, obj=152]
INFO - 16:13:39: 40%|███▉ | 79/200 [00:00<00:01, 95.07 it/sec, feas=True, obj=152]
INFO - 16:13:39: 40%|████ | 80/200 [00:00<00:01, 95.15 it/sec, feas=True, obj=152]
INFO - 16:13:39: 40%|████ | 81/200 [00:00<00:01, 95.30 it/sec, feas=True, obj=152]
INFO - 16:13:39: 41%|████ | 82/200 [00:00<00:01, 95.46 it/sec, feas=True, obj=152]
INFO - 16:13:39: 42%|████▏ | 83/200 [00:00<00:01, 95.58 it/sec, feas=True, obj=152]
INFO - 16:13:39: 42%|████▏ | 84/200 [00:00<00:01, 95.68 it/sec, feas=True, obj=152]
INFO - 16:13:39: 42%|████▎ | 85/200 [00:00<00:01, 95.78 it/sec, feas=True, obj=152]
INFO - 16:13:39: 43%|████▎ | 86/200 [00:00<00:01, 95.85 it/sec, feas=True, obj=152]
INFO - 16:13:39: 44%|████▎ | 87/200 [00:00<00:01, 95.96 it/sec, feas=True, obj=152]
INFO - 16:13:39: 44%|████▍ | 88/200 [00:00<00:01, 96.07 it/sec, feas=True, obj=152]
INFO - 16:13:39: 44%|████▍ | 89/200 [00:00<00:01, 96.23 it/sec, feas=True, obj=152]
INFO - 16:13:39: 45%|████▌ | 90/200 [00:00<00:01, 96.38 it/sec, feas=True, obj=152]
INFO - 16:13:39: 46%|████▌ | 91/200 [00:00<00:01, 96.50 it/sec, feas=True, obj=152]
INFO - 16:13:39: 46%|████▌ | 92/200 [00:00<00:01, 96.62 it/sec, feas=True, obj=152]
INFO - 16:13:39: 46%|████▋ | 93/200 [00:00<00:01, 96.75 it/sec, feas=True, obj=152]
INFO - 16:13:39: 47%|████▋ | 94/200 [00:00<00:01, 96.90 it/sec, feas=True, obj=152]
INFO - 16:13:39: 48%|████▊ | 95/200 [00:00<00:01, 97.04 it/sec, feas=True, obj=152]
INFO - 16:13:39: 48%|████▊ | 96/200 [00:00<00:01, 97.18 it/sec, feas=True, obj=152]
INFO - 16:13:39: 48%|████▊ | 97/200 [00:00<00:01, 97.30 it/sec, feas=True, obj=152]
INFO - 16:13:39: 49%|████▉ | 98/200 [00:01<00:01, 97.43 it/sec, feas=True, obj=152]
INFO - 16:13:39: 50%|████▉ | 99/200 [00:01<00:01, 97.56 it/sec, feas=True, obj=152]
INFO - 16:13:39: 50%|█████ | 100/200 [00:01<00:01, 97.69 it/sec, feas=True, obj=152]
INFO - 16:13:39: 50%|█████ | 101/200 [00:01<00:01, 97.79 it/sec, feas=True, obj=152]
INFO - 16:13:39: 51%|█████ | 102/200 [00:01<00:01, 97.90 it/sec, feas=True, obj=152]
INFO - 16:13:39: 52%|█████▏ | 103/200 [00:01<00:00, 97.99 it/sec, feas=True, obj=152]
INFO - 16:13:39: 52%|█████▏ | 104/200 [00:01<00:00, 98.09 it/sec, feas=True, obj=152]
INFO - 16:13:39: 52%|█████▎ | 105/200 [00:01<00:00, 98.17 it/sec, feas=True, obj=152]
INFO - 16:13:39: 53%|█████▎ | 106/200 [00:01<00:00, 98.23 it/sec, feas=True, obj=152]
INFO - 16:13:39: 54%|█████▎ | 107/200 [00:01<00:00, 98.30 it/sec, feas=True, obj=152]
INFO - 16:13:40: 54%|█████▍ | 108/200 [00:01<00:00, 98.37 it/sec, feas=True, obj=152]
INFO - 16:13:40: 55%|█████▍ | 109/200 [00:01<00:00, 98.42 it/sec, feas=True, obj=152]
INFO - 16:13:40: 55%|█████▌ | 110/200 [00:01<00:00, 98.38 it/sec, feas=True, obj=152]
INFO - 16:13:40: 56%|█████▌ | 111/200 [00:01<00:00, 98.42 it/sec, feas=True, obj=152]
INFO - 16:13:40: 56%|█████▌ | 112/200 [00:01<00:00, 98.46 it/sec, feas=True, obj=152]
INFO - 16:13:40: 56%|█████▋ | 113/200 [00:01<00:00, 98.50 it/sec, feas=True, obj=152]
INFO - 16:13:40: 57%|█████▋ | 114/200 [00:01<00:00, 98.57 it/sec, feas=True, obj=152]
INFO - 16:13:40: 57%|█████▊ | 115/200 [00:01<00:00, 98.65 it/sec, feas=True, obj=152]
INFO - 16:13:40: 58%|█████▊ | 116/200 [00:01<00:00, 98.69 it/sec, feas=True, obj=152]
INFO - 16:13:40: 58%|█████▊ | 117/200 [00:01<00:00, 98.74 it/sec, feas=True, obj=152]
INFO - 16:13:40: 59%|█████▉ | 118/200 [00:01<00:00, 98.78 it/sec, feas=True, obj=152]
INFO - 16:13:40: 60%|█████▉ | 119/200 [00:01<00:00, 98.81 it/sec, feas=True, obj=152]
INFO - 16:13:40: 60%|██████ | 120/200 [00:01<00:00, 98.83 it/sec, feas=True, obj=152]
INFO - 16:13:40: 60%|██████ | 121/200 [00:01<00:00, 98.88 it/sec, feas=True, obj=152]
INFO - 16:13:40: 61%|██████ | 122/200 [00:01<00:00, 98.96 it/sec, feas=True, obj=152]
INFO - 16:13:40: 62%|██████▏ | 123/200 [00:01<00:00, 99.03 it/sec, feas=True, obj=152]
INFO - 16:13:40: 62%|██████▏ | 124/200 [00:01<00:00, 99.10 it/sec, feas=True, obj=152]
INFO - 16:13:40: 62%|██████▎ | 125/200 [00:01<00:00, 99.18 it/sec, feas=True, obj=152]
INFO - 16:13:40: 63%|██████▎ | 126/200 [00:01<00:00, 99.25 it/sec, feas=True, obj=152]
INFO - 16:13:40: 64%|██████▎ | 127/200 [00:01<00:00, 99.33 it/sec, feas=True, obj=152]
INFO - 16:13:40: 64%|██████▍ | 128/200 [00:01<00:00, 99.40 it/sec, feas=True, obj=152]
INFO - 16:13:40: 64%|██████▍ | 129/200 [00:01<00:00, 99.44 it/sec, feas=True, obj=152]
INFO - 16:13:40: 65%|██████▌ | 130/200 [00:01<00:00, 99.52 it/sec, feas=True, obj=152]
INFO - 16:13:40: 66%|██████▌ | 131/200 [00:01<00:00, 99.58 it/sec, feas=True, obj=152]
INFO - 16:13:40: 66%|██████▌ | 132/200 [00:01<00:00, 99.59 it/sec, feas=True, obj=152]
INFO - 16:13:40: 66%|██████▋ | 133/200 [00:01<00:00, 99.65 it/sec, feas=True, obj=152]
INFO - 16:13:40: 67%|██████▋ | 134/200 [00:01<00:00, 99.72 it/sec, feas=True, obj=152]
INFO - 16:13:40: 68%|██████▊ | 135/200 [00:01<00:00, 99.81 it/sec, feas=True, obj=152]
INFO - 16:13:40: 68%|██████▊ | 136/200 [00:01<00:00, 99.89 it/sec, feas=True, obj=152]
INFO - 16:13:40: 68%|██████▊ | 137/200 [00:01<00:00, 99.97 it/sec, feas=True, obj=152]
INFO - 16:13:40: 69%|██████▉ | 138/200 [00:01<00:00, 100.04 it/sec, feas=True, obj=152]
INFO - 16:13:40: 70%|██████▉ | 139/200 [00:01<00:00, 100.09 it/sec, feas=True, obj=152]
INFO - 16:13:40: 70%|███████ | 140/200 [00:01<00:00, 100.14 it/sec, feas=True, obj=152]
INFO - 16:13:40: Optimization result:
INFO - 16:13:40: Optimizer info:
INFO - 16:13:40: Status: None
INFO - 16:13:40: Message: Successive iterates of the objective function are closer than ftol_rel or ftol_abs. GEMSEO stopped the driver.
INFO - 16:13:40: Solution:
INFO - 16:13:40: The solution is feasible.
INFO - 16:13:40: Objective: 151.6296141795223
INFO - 16:13:40: Standardized constraints:
INFO - 16:13:40: [volume fraction-0.3] = 5.139993075609084e-08
INFO - 16:13:40: *** End MDOScenario execution ***
Results#
Post-process the optimization history:

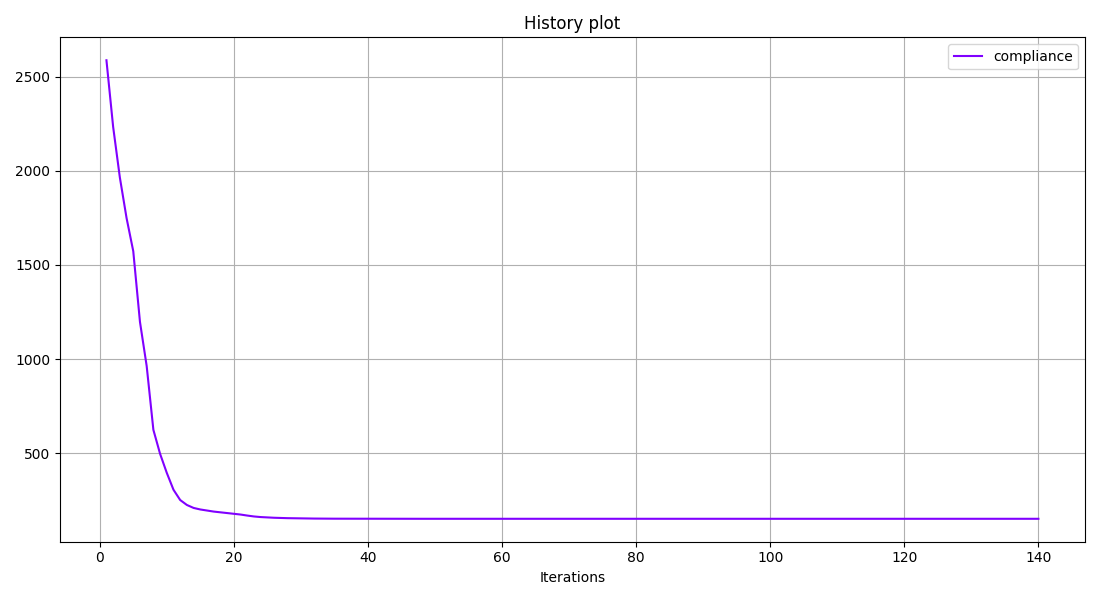

scenario.post_process(
post_name="BasicHistory", variable_names=["compliance"], show=True, save=False
)
<gemseo.post.basic_history.BasicHistory object at 0x7b1d50f9a5d0>
Plot the solution
scenario.post_process(post_name="TopologyView", n_x=n_x, n_y=n_y, show=True, save=False)
<gemseo.post.topology_view.TopologyView object at 0x7b1d50ab84d0>
Total running time of the script: (0 minutes 2.091 seconds)
