Solve a 2D short cantilever topology optimization problem#

from __future__ import annotations

from gemseo import create_scenario
from gemseo.problems.topology_optimization.topopt_initialize import (
    initialize_design_space_and_discipline_to,
)

Setup the topology optimization problem#

Define the target volume fraction:

volume_fraction = 0.3

Define the problem type:

problem_name = "Short_Cantilever"

Define the number of elements in the x- and y- directions:

n_x = 50
n_y = 25

Define the full material Young's modulus and Poisson's ratio:

e0 = 1
nu = 0.3

Define the penalty of the SIMP approach:

penalty = 3

Define the minimum member size in the solution:

min_member_size = 1.5

Instantiate the DesignSpace and the disciplines:

design_space, disciplines = initialize_design_space_and_discipline_to(
    problem=problem_name,
    n_x=n_x,
    n_y=n_y,
    e0=e0,
    nu=nu,
    penalty=penalty,
    min_member_size=min_member_size,
    vf0=volume_fraction,
)

Solve the topology optimization problem#

Generate an MDOScenario:

scenario = create_scenario(
    disciplines,
    "compliance",
    design_space,
    formulation_name="DisciplinaryOpt",
)

Add the volume fraction constraint to the scenario:

scenario.add_constraint(
    "volume fraction", constraint_type="ineq", value=volume_fraction
)

Generate the XDSM:

scenario.xdsmize(save_html=False)


Execute the scenario:

scenario.execute(algo_name="NLOPT_MMA", max_iter=200)

INFO - 16:13:46: *** Start MDOScenario execution ***
INFO - 16:13:46: MDOScenario
INFO - 16:13:46:    Disciplines: DensityFilter FiniteElementAnalysis MaterialModelInterpolation VolumeFraction
INFO - 16:13:46:    MDO formulation: DisciplinaryOpt
INFO - 16:13:46: Optimization problem:
INFO - 16:13:46:    minimize compliance(x)
INFO - 16:13:46:    with respect to x
INFO - 16:13:46:    under the inequality constraints
INFO - 16:13:46:       volume fraction(x) <= 0.3
INFO - 16:13:46: Solving optimization problem with algorithm NLOPT_MMA:
INFO - 16:13:46:      1%|          | 2/200 [00:00<00:05, 37.95 it/sec, feas=True, obj=1.46e+3]
INFO - 16:13:46:      2%|▏         | 3/200 [00:00<00:04, 41.09 it/sec, feas=True, obj=1.45e+3]
INFO - 16:13:46:      2%|▏         | 4/200 [00:00<00:04, 43.15 it/sec, feas=True, obj=1.45e+3]
INFO - 16:13:46:      2%|▎         | 5/200 [00:00<00:04, 43.68 it/sec, feas=True, obj=1.45e+3]
INFO - 16:13:46:      3%|▎         | 6/200 [00:00<00:04, 44.11 it/sec, feas=True, obj=1.43e+3]
INFO - 16:13:46:      4%|▎         | 7/200 [00:00<00:04, 44.65 it/sec, feas=True, obj=1.4e+3]
INFO - 16:13:46:      4%|▍         | 8/200 [00:00<00:04, 44.75 it/sec, feas=True, obj=1.36e+3]
INFO - 16:13:46:      4%|▍         | 9/200 [00:00<00:04, 44.75 it/sec, feas=True, obj=1.2e+3]
INFO - 16:13:46:      5%|▌         | 10/200 [00:00<00:04, 45.05 it/sec, feas=True, obj=1.01e+3]
INFO - 16:13:46:      6%|▌         | 11/200 [00:00<00:04, 45.31 it/sec, feas=True, obj=756]
INFO - 16:13:46:      6%|▌         | 12/200 [00:00<00:04, 45.49 it/sec, feas=True, obj=573]
INFO - 16:13:46:      6%|▋         | 13/200 [00:00<00:04, 45.73 it/sec, feas=True, obj=509]
INFO - 16:13:46:      7%|▋         | 14/200 [00:00<00:04, 45.95 it/sec, feas=True, obj=448]
INFO - 16:13:46:      8%|▊         | 15/200 [00:00<00:04, 46.17 it/sec, feas=True, obj=399]
INFO - 16:13:46:      8%|▊         | 16/200 [00:00<00:03, 46.38 it/sec, feas=True, obj=360]
INFO - 16:13:46:      8%|▊         | 17/200 [00:00<00:03, 46.57 it/sec, feas=True, obj=329]
INFO - 16:13:46:      9%|▉         | 18/200 [00:00<00:03, 46.71 it/sec, feas=True, obj=304]
INFO - 16:13:46:     10%|▉         | 19/200 [00:00<00:03, 47.04 it/sec, feas=True, obj=278]
INFO - 16:13:46:     10%|█         | 20/200 [00:00<00:03, 47.22 it/sec, feas=True, obj=251]
INFO - 16:13:46:     10%|█         | 21/200 [00:00<00:03, 47.43 it/sec, feas=True, obj=231]
INFO - 16:13:46:     11%|█         | 22/200 [00:00<00:03, 47.61 it/sec, feas=True, obj=213]
INFO - 16:13:46:     12%|█▏        | 23/200 [00:00<00:03, 47.71 it/sec, feas=True, obj=193]
INFO - 16:13:46:     12%|█▏        | 24/200 [00:00<00:03, 47.84 it/sec, feas=True, obj=175]
INFO - 16:13:46:     12%|█▎        | 25/200 [00:00<00:03, 47.99 it/sec, feas=True, obj=161]
INFO - 16:13:46:     13%|█▎        | 26/200 [00:00<00:03, 48.17 it/sec, feas=True, obj=153]
INFO - 16:13:46:     14%|█▎        | 27/200 [00:00<00:03, 48.36 it/sec, feas=True, obj=148]
INFO - 16:13:46:     14%|█▍        | 28/200 [00:00<00:03, 48.51 it/sec, feas=True, obj=145]
INFO - 16:13:46:     14%|█▍        | 29/200 [00:00<00:03, 48.70 it/sec, feas=True, obj=143]
INFO - 16:13:46:     15%|█▌        | 30/200 [00:00<00:03, 48.88 it/sec, feas=True, obj=142]
INFO - 16:13:46:     16%|█▌        | 31/200 [00:00<00:03, 49.04 it/sec, feas=True, obj=141]
INFO - 16:13:47:     16%|█▌        | 32/200 [00:00<00:03, 49.18 it/sec, feas=True, obj=140]
INFO - 16:13:47:     16%|█▋        | 33/200 [00:00<00:03, 49.29 it/sec, feas=True, obj=140]
INFO - 16:13:47:     17%|█▋        | 34/200 [00:00<00:03, 49.44 it/sec, feas=True, obj=140]
INFO - 16:13:47:     18%|█▊        | 35/200 [00:00<00:03, 49.63 it/sec, feas=True, obj=139]
INFO - 16:13:47:     18%|█▊        | 36/200 [00:00<00:03, 49.79 it/sec, feas=True, obj=139]
INFO - 16:13:47:     18%|█▊        | 37/200 [00:00<00:03, 49.92 it/sec, feas=True, obj=139]
INFO - 16:13:47:     19%|█▉        | 38/200 [00:00<00:03, 50.08 it/sec, feas=True, obj=139]
INFO - 16:13:47:     20%|█▉        | 39/200 [00:00<00:03, 50.25 it/sec, feas=True, obj=139]
INFO - 16:13:47:     20%|██        | 40/200 [00:00<00:03, 50.40 it/sec, feas=True, obj=139]
INFO - 16:13:47:     20%|██        | 41/200 [00:00<00:03, 50.55 it/sec, feas=True, obj=139]
INFO - 16:13:47:     21%|██        | 42/200 [00:00<00:03, 50.65 it/sec, feas=True, obj=138]
INFO - 16:13:47:     22%|██▏       | 43/200 [00:00<00:03, 50.77 it/sec, feas=True, obj=138]
INFO - 16:13:47:     22%|██▏       | 44/200 [00:00<00:03, 50.89 it/sec, feas=True, obj=138]
INFO - 16:13:47:     22%|██▎       | 45/200 [00:00<00:03, 51.03 it/sec, feas=True, obj=138]
INFO - 16:13:47:     23%|██▎       | 46/200 [00:00<00:03, 51.17 it/sec, feas=True, obj=138]
INFO - 16:13:47:     24%|██▎       | 47/200 [00:00<00:02, 51.26 it/sec, feas=True, obj=138]
INFO - 16:13:47:     24%|██▍       | 48/200 [00:00<00:02, 51.36 it/sec, feas=True, obj=138]
INFO - 16:13:47:     24%|██▍       | 49/200 [00:00<00:02, 51.48 it/sec, feas=True, obj=138]
INFO - 16:13:47:     25%|██▌       | 50/200 [00:00<00:02, 51.57 it/sec, feas=True, obj=138]
INFO - 16:13:47:     26%|██▌       | 51/200 [00:00<00:02, 51.66 it/sec, feas=True, obj=138]
INFO - 16:13:47:     26%|██▌       | 52/200 [00:01<00:02, 51.72 it/sec, feas=True, obj=138]
INFO - 16:13:47:     26%|██▋       | 53/200 [00:01<00:02, 51.80 it/sec, feas=True, obj=138]
INFO - 16:13:47:     27%|██▋       | 54/200 [00:01<00:02, 51.84 it/sec, feas=True, obj=137]
INFO - 16:13:47:     28%|██▊       | 55/200 [00:01<00:02, 51.92 it/sec, feas=True, obj=137]
INFO - 16:13:47:     28%|██▊       | 56/200 [00:01<00:02, 52.01 it/sec, feas=True, obj=137]
INFO - 16:13:47:     28%|██▊       | 57/200 [00:01<00:02, 52.09 it/sec, feas=True, obj=137]
INFO - 16:13:47:     29%|██▉       | 58/200 [00:01<00:02, 52.17 it/sec, feas=True, obj=137]
INFO - 16:13:47:     30%|██▉       | 59/200 [00:01<00:02, 52.24 it/sec, feas=True, obj=137]
INFO - 16:13:47:     30%|███       | 60/200 [00:01<00:02, 52.34 it/sec, feas=True, obj=137]
INFO - 16:13:47:     30%|███       | 61/200 [00:01<00:02, 52.41 it/sec, feas=True, obj=137]
INFO - 16:13:47:     31%|███       | 62/200 [00:01<00:02, 52.49 it/sec, feas=True, obj=137]
INFO - 16:13:47:     32%|███▏      | 63/200 [00:01<00:02, 52.58 it/sec, feas=True, obj=137]
INFO - 16:13:47:     32%|███▏      | 64/200 [00:01<00:02, 52.66 it/sec, feas=True, obj=137]
INFO - 16:13:47:     32%|███▎      | 65/200 [00:01<00:02, 52.74 it/sec, feas=True, obj=137]
INFO - 16:13:47:     33%|███▎      | 66/200 [00:01<00:02, 52.79 it/sec, feas=True, obj=137]
INFO - 16:13:47:     34%|███▎      | 67/200 [00:01<00:02, 52.90 it/sec, feas=True, obj=137]
INFO - 16:13:47:     34%|███▍      | 68/200 [00:01<00:02, 52.95 it/sec, feas=True, obj=137]
INFO - 16:13:47:     34%|███▍      | 69/200 [00:01<00:02, 53.01 it/sec, feas=True, obj=137]
INFO - 16:13:47:     35%|███▌      | 70/200 [00:01<00:02, 53.04 it/sec, feas=True, obj=137]
INFO - 16:13:47:     36%|███▌      | 71/200 [00:01<00:02, 53.07 it/sec, feas=True, obj=137]
INFO - 16:13:47:     36%|███▌      | 72/200 [00:01<00:02, 53.11 it/sec, feas=True, obj=137]
INFO - 16:13:47:     36%|███▋      | 73/200 [00:01<00:02, 53.13 it/sec, feas=True, obj=137]
INFO - 16:13:47:     37%|███▋      | 74/200 [00:01<00:02, 53.12 it/sec, feas=True, obj=137]
INFO - 16:13:47:     38%|███▊      | 75/200 [00:01<00:02, 53.16 it/sec, feas=True, obj=137]
INFO - 16:13:47:     38%|███▊      | 76/200 [00:01<00:02, 53.22 it/sec, feas=True, obj=137]
INFO - 16:13:47:     38%|███▊      | 77/200 [00:01<00:02, 53.26 it/sec, feas=True, obj=137]
INFO - 16:13:47:     39%|███▉      | 78/200 [00:01<00:02, 53.27 it/sec, feas=True, obj=137]
INFO - 16:13:47:     40%|███▉      | 79/200 [00:01<00:02, 53.29 it/sec, feas=True, obj=137]
INFO - 16:13:47:     40%|████      | 80/200 [00:01<00:02, 53.32 it/sec, feas=True, obj=137]
INFO - 16:13:47:     40%|████      | 81/200 [00:01<00:02, 53.36 it/sec, feas=True, obj=137]
INFO - 16:13:47:     41%|████      | 82/200 [00:01<00:02, 53.40 it/sec, feas=True, obj=137]
INFO - 16:13:47:     42%|████▏     | 83/200 [00:01<00:02, 53.44 it/sec, feas=True, obj=137]
INFO - 16:13:47:     42%|████▏     | 84/200 [00:01<00:02, 53.48 it/sec, feas=True, obj=137]
INFO - 16:13:47:     42%|████▎     | 85/200 [00:01<00:02, 53.51 it/sec, feas=True, obj=137]
INFO - 16:13:47:     43%|████▎     | 86/200 [00:01<00:02, 53.53 it/sec, feas=True, obj=137]
INFO - 16:13:47:     44%|████▎     | 87/200 [00:01<00:02, 53.54 it/sec, feas=True, obj=137]
INFO - 16:13:48:     44%|████▍     | 88/200 [00:01<00:02, 53.57 it/sec, feas=True, obj=137]
INFO - 16:13:48:     44%|████▍     | 89/200 [00:01<00:02, 53.59 it/sec, feas=True, obj=137]
INFO - 16:13:48:     45%|████▌     | 90/200 [00:01<00:02, 53.60 it/sec, feas=True, obj=137]
INFO - 16:13:48:     46%|████▌     | 91/200 [00:01<00:02, 53.63 it/sec, feas=True, obj=137]
INFO - 16:13:48:     46%|████▌     | 92/200 [00:01<00:02, 53.68 it/sec, feas=True, obj=137]
INFO - 16:13:48:     46%|████▋     | 93/200 [00:01<00:01, 53.73 it/sec, feas=True, obj=137]
INFO - 16:13:48:     47%|████▋     | 94/200 [00:01<00:01, 53.74 it/sec, feas=True, obj=137]
INFO - 16:13:48:     48%|████▊     | 95/200 [00:01<00:01, 53.78 it/sec, feas=True, obj=137]
INFO - 16:13:48:     48%|████▊     | 96/200 [00:01<00:01, 53.78 it/sec, feas=True, obj=137]
INFO - 16:13:48:     48%|████▊     | 97/200 [00:01<00:01, 53.83 it/sec, feas=True, obj=137]
INFO - 16:13:48:     49%|████▉     | 98/200 [00:01<00:01, 53.86 it/sec, feas=True, obj=137]
INFO - 16:13:48:     50%|████▉     | 99/200 [00:01<00:01, 53.87 it/sec, feas=True, obj=137]
INFO - 16:13:48:     50%|█████     | 100/200 [00:01<00:01, 53.87 it/sec, feas=True, obj=137]
INFO - 16:13:48:     50%|█████     | 101/200 [00:01<00:01, 53.87 it/sec, feas=True, obj=137]
INFO - 16:13:48:     51%|█████     | 102/200 [00:01<00:01, 53.90 it/sec, feas=True, obj=137]
INFO - 16:13:48:     52%|█████▏    | 103/200 [00:01<00:01, 53.94 it/sec, feas=True, obj=137]
INFO - 16:13:48:     52%|█████▏    | 104/200 [00:01<00:01, 53.98 it/sec, feas=True, obj=137]
INFO - 16:13:48:     52%|█████▎    | 105/200 [00:01<00:01, 54.00 it/sec, feas=True, obj=137]
INFO - 16:13:48:     53%|█████▎    | 106/200 [00:01<00:01, 54.02 it/sec, feas=True, obj=137]
INFO - 16:13:48:     54%|█████▎    | 107/200 [00:01<00:01, 54.06 it/sec, feas=True, obj=137]
INFO - 16:13:48:     54%|█████▍    | 108/200 [00:01<00:01, 54.07 it/sec, feas=True, obj=137]
INFO - 16:13:48:     55%|█████▍    | 109/200 [00:02<00:01, 54.11 it/sec, feas=True, obj=137]
INFO - 16:13:48:     55%|█████▌    | 110/200 [00:02<00:01, 54.14 it/sec, feas=True, obj=137]
INFO - 16:13:48:     56%|█████▌    | 111/200 [00:02<00:01, 54.16 it/sec, feas=True, obj=137]
INFO - 16:13:48:     56%|█████▌    | 112/200 [00:02<00:01, 54.19 it/sec, feas=True, obj=137]
INFO - 16:13:48:     56%|█████▋    | 113/200 [00:02<00:01, 54.22 it/sec, feas=True, obj=137]
INFO - 16:13:48:     57%|█████▋    | 114/200 [00:02<00:01, 54.25 it/sec, feas=True, obj=137]
INFO - 16:13:48:     57%|█████▊    | 115/200 [00:02<00:01, 54.26 it/sec, feas=True, obj=137]
INFO - 16:13:48:     58%|█████▊    | 116/200 [00:02<00:01, 54.28 it/sec, feas=True, obj=137]
INFO - 16:13:48:     58%|█████▊    | 117/200 [00:02<00:01, 54.28 it/sec, feas=True, obj=137]
INFO - 16:13:48:     59%|█████▉    | 118/200 [00:02<00:01, 54.32 it/sec, feas=True, obj=137]
INFO - 16:13:48:     60%|█████▉    | 119/200 [00:02<00:01, 54.36 it/sec, feas=True, obj=137]
INFO - 16:13:48:     60%|██████    | 120/200 [00:02<00:01, 54.39 it/sec, feas=True, obj=137]
INFO - 16:13:48:     60%|██████    | 121/200 [00:02<00:01, 54.43 it/sec, feas=True, obj=137]
INFO - 16:13:48:     61%|██████    | 122/200 [00:02<00:01, 54.47 it/sec, feas=True, obj=137]
INFO - 16:13:48:     62%|██████▏   | 123/200 [00:02<00:01, 54.52 it/sec, feas=True, obj=137]
INFO - 16:13:48:     62%|██████▏   | 124/200 [00:02<00:01, 54.54 it/sec, feas=True, obj=137]
INFO - 16:13:48:     62%|██████▎   | 125/200 [00:02<00:01, 54.55 it/sec, feas=True, obj=137]
INFO - 16:13:48:     63%|██████▎   | 126/200 [00:02<00:01, 54.56 it/sec, feas=True, obj=137]
INFO - 16:13:48:     64%|██████▎   | 127/200 [00:02<00:01, 54.58 it/sec, feas=True, obj=137]
INFO - 16:13:48:     64%|██████▍   | 128/200 [00:02<00:01, 54.58 it/sec, feas=True, obj=137]
INFO - 16:13:48:     64%|██████▍   | 129/200 [00:02<00:01, 54.57 it/sec, feas=True, obj=137]
INFO - 16:13:48:     65%|██████▌   | 130/200 [00:02<00:01, 54.56 it/sec, feas=True, obj=137]
INFO - 16:13:48:     66%|██████▌   | 131/200 [00:02<00:01, 54.56 it/sec, feas=True, obj=137]
INFO - 16:13:48:     66%|██████▌   | 132/200 [00:02<00:01, 54.60 it/sec, feas=True, obj=137]
INFO - 16:13:48:     66%|██████▋   | 133/200 [00:02<00:01, 54.60 it/sec, feas=True, obj=137]
INFO - 16:13:48:     67%|██████▋   | 134/200 [00:02<00:01, 54.59 it/sec, feas=True, obj=137]
INFO - 16:13:48:     68%|██████▊   | 135/200 [00:02<00:01, 54.59 it/sec, feas=True, obj=137]
INFO - 16:13:48:     68%|██████▊   | 136/200 [00:02<00:01, 54.60 it/sec, feas=True, obj=137]
INFO - 16:13:48:     68%|██████▊   | 137/200 [00:02<00:01, 54.59 it/sec, feas=True, obj=137]
INFO - 16:13:48:     69%|██████▉   | 138/200 [00:02<00:01, 54.59 it/sec, feas=True, obj=137]
INFO - 16:13:48:     70%|██████▉   | 139/200 [00:02<00:01, 54.60 it/sec, feas=True, obj=137]
INFO - 16:13:48:     70%|███████   | 140/200 [00:02<00:01, 54.59 it/sec, feas=True, obj=137]
INFO - 16:13:48:     70%|███████   | 141/200 [00:02<00:01, 54.58 it/sec, feas=True, obj=137]
INFO - 16:13:48:     71%|███████   | 142/200 [00:02<00:01, 54.59 it/sec, feas=True, obj=137]
INFO - 16:13:48:     72%|███████▏  | 143/200 [00:02<00:01, 54.60 it/sec, feas=True, obj=137]
INFO - 16:13:48:     72%|███████▏  | 144/200 [00:02<00:01, 54.62 it/sec, feas=True, obj=137]
INFO - 16:13:49:     72%|███████▎  | 145/200 [00:02<00:01, 54.63 it/sec, feas=True, obj=137]
INFO - 16:13:49:     73%|███████▎  | 146/200 [00:02<00:00, 54.64 it/sec, feas=True, obj=137]
INFO - 16:13:49:     74%|███████▎  | 147/200 [00:02<00:00, 54.66 it/sec, feas=True, obj=137]
INFO - 16:13:49:     74%|███████▍  | 148/200 [00:02<00:00, 54.68 it/sec, feas=True, obj=137]
INFO - 16:13:49:     74%|███████▍  | 149/200 [00:02<00:00, 54.69 it/sec, feas=True, obj=137]
INFO - 16:13:49:     75%|███████▌  | 150/200 [00:02<00:00, 54.69 it/sec, feas=True, obj=137]
INFO - 16:13:49:     76%|███████▌  | 151/200 [00:02<00:00, 54.69 it/sec, feas=True, obj=137]
INFO - 16:13:49:     76%|███████▌  | 152/200 [00:02<00:00, 54.70 it/sec, feas=True, obj=137]
INFO - 16:13:49:     76%|███████▋  | 153/200 [00:02<00:00, 54.70 it/sec, feas=True, obj=137]
INFO - 16:13:49:     77%|███████▋  | 154/200 [00:02<00:00, 54.72 it/sec, feas=True, obj=137]
INFO - 16:13:49:     78%|███████▊  | 155/200 [00:02<00:00, 54.73 it/sec, feas=True, obj=137]
INFO - 16:13:49:     78%|███████▊  | 156/200 [00:02<00:00, 54.73 it/sec, feas=True, obj=137]
INFO - 16:13:49:     78%|███████▊  | 157/200 [00:02<00:00, 54.73 it/sec, feas=True, obj=137]
INFO - 16:13:49:     79%|███████▉  | 158/200 [00:02<00:00, 54.72 it/sec, feas=True, obj=137]
INFO - 16:13:49:     80%|███████▉  | 159/200 [00:02<00:00, 54.76 it/sec, feas=True, obj=137]
INFO - 16:13:49:     80%|████████  | 160/200 [00:02<00:00, 54.78 it/sec, feas=True, obj=137]
INFO - 16:13:49:     80%|████████  | 161/200 [00:02<00:00, 54.81 it/sec, feas=True, obj=137]
INFO - 16:13:49:     81%|████████  | 162/200 [00:02<00:00, 54.85 it/sec, feas=True, obj=137]
INFO - 16:13:49:     82%|████████▏ | 163/200 [00:02<00:00, 54.87 it/sec, feas=True, obj=137]
INFO - 16:13:49:     82%|████████▏ | 164/200 [00:02<00:00, 54.86 it/sec, feas=True, obj=137]
INFO - 16:13:49:     82%|████████▎ | 165/200 [00:03<00:00, 54.87 it/sec, feas=True, obj=137]
INFO - 16:13:49:     83%|████████▎ | 166/200 [00:03<00:00, 54.88 it/sec, feas=True, obj=137]
INFO - 16:13:49:     84%|████████▎ | 167/200 [00:03<00:00, 54.89 it/sec, feas=True, obj=137]
INFO - 16:13:49:     84%|████████▍ | 168/200 [00:03<00:00, 54.90 it/sec, feas=True, obj=137]
INFO - 16:13:49:     84%|████████▍ | 169/200 [00:03<00:00, 54.91 it/sec, feas=True, obj=137]
INFO - 16:13:49:     85%|████████▌ | 170/200 [00:03<00:00, 54.93 it/sec, feas=True, obj=137]
INFO - 16:13:49:     86%|████████▌ | 171/200 [00:03<00:00, 54.97 it/sec, feas=True, obj=137]
INFO - 16:13:49:     86%|████████▌ | 172/200 [00:03<00:00, 54.97 it/sec, feas=True, obj=137]
INFO - 16:13:49:     86%|████████▋ | 173/200 [00:03<00:00, 55.00 it/sec, feas=True, obj=137]
INFO - 16:13:49:     87%|████████▋ | 174/200 [00:03<00:00, 55.00 it/sec, feas=True, obj=137]
INFO - 16:13:49:     88%|████████▊ | 175/200 [00:03<00:00, 55.03 it/sec, feas=True, obj=137]
INFO - 16:13:49:     88%|████████▊ | 176/200 [00:03<00:00, 55.03 it/sec, feas=True, obj=137]
INFO - 16:13:49:     88%|████████▊ | 177/200 [00:03<00:00, 55.05 it/sec, feas=True, obj=137]
INFO - 16:13:49:     89%|████████▉ | 178/200 [00:03<00:00, 55.05 it/sec, feas=True, obj=137]
INFO - 16:13:49:     90%|████████▉ | 179/200 [00:03<00:00, 55.06 it/sec, feas=True, obj=137]
INFO - 16:13:49:     90%|█████████ | 180/200 [00:03<00:00, 55.09 it/sec, feas=True, obj=137]
INFO - 16:13:49:     90%|█████████ | 181/200 [00:03<00:00, 55.09 it/sec, feas=True, obj=137]
INFO - 16:13:49:     91%|█████████ | 182/200 [00:03<00:00, 55.12 it/sec, feas=True, obj=137]
INFO - 16:13:49:     92%|█████████▏| 183/200 [00:03<00:00, 55.14 it/sec, feas=True, obj=137]
INFO - 16:13:49:     92%|█████████▏| 184/200 [00:03<00:00, 55.16 it/sec, feas=True, obj=137]
INFO - 16:13:49:     92%|█████████▎| 185/200 [00:03<00:00, 55.19 it/sec, feas=True, obj=137]
INFO - 16:13:49:     93%|█████████▎| 186/200 [00:03<00:00, 55.20 it/sec, feas=True, obj=137]
INFO - 16:13:49:     94%|█████████▎| 187/200 [00:03<00:00, 55.22 it/sec, feas=True, obj=137]
INFO - 16:13:49:     94%|█████████▍| 188/200 [00:03<00:00, 55.25 it/sec, feas=True, obj=137]
INFO - 16:13:49:     94%|█████████▍| 189/200 [00:03<00:00, 55.28 it/sec, feas=True, obj=137]
INFO - 16:13:49:     95%|█████████▌| 190/200 [00:03<00:00, 55.31 it/sec, feas=True, obj=137]
INFO - 16:13:49:     96%|█████████▌| 191/200 [00:03<00:00, 55.34 it/sec, feas=True, obj=137]
INFO - 16:13:49:     96%|█████████▌| 192/200 [00:03<00:00, 55.35 it/sec, feas=True, obj=137]
INFO - 16:13:49:     96%|█████████▋| 193/200 [00:03<00:00, 55.36 it/sec, feas=True, obj=137]
INFO - 16:13:49:     97%|█████████▋| 194/200 [00:03<00:00, 55.39 it/sec, feas=True, obj=137]
INFO - 16:13:49:     98%|█████████▊| 195/200 [00:03<00:00, 55.39 it/sec, feas=True, obj=137]
INFO - 16:13:49:     98%|█████████▊| 196/200 [00:03<00:00, 55.41 it/sec, feas=True, obj=137]
INFO - 16:13:49:     98%|█████████▊| 197/200 [00:03<00:00, 55.44 it/sec, feas=True, obj=137]
INFO - 16:13:49:     99%|█████████▉| 198/200 [00:03<00:00, 55.46 it/sec, feas=True, obj=137]
INFO - 16:13:49:    100%|█████████▉| 199/200 [00:03<00:00, 55.47 it/sec, feas=True, obj=137]
INFO - 16:13:49:    100%|██████████| 200/200 [00:03<00:00, 55.50 it/sec, feas=True, obj=137]
INFO - 16:13:49: Optimization result:
INFO - 16:13:49:    Optimizer info:
INFO - 16:13:49:       Status: None
INFO - 16:13:49:       Message: Maximum number of iterations reached. GEMSEO stopped the driver.
INFO - 16:13:49:    Solution:
INFO - 16:13:49:       The solution is feasible.
INFO - 16:13:49:       Objective: 136.5606526095802
INFO - 16:13:49:       Standardized constraints:
INFO - 16:13:49:          [volume fraction-0.3] = 1.0310935563140333e-06
INFO - 16:13:49: *** End MDOScenario execution ***

Results#

Post-process the optimization history:

scenario.post_process(
    post_name="BasicHistory", variable_names=["compliance"], show=True, save=False
)

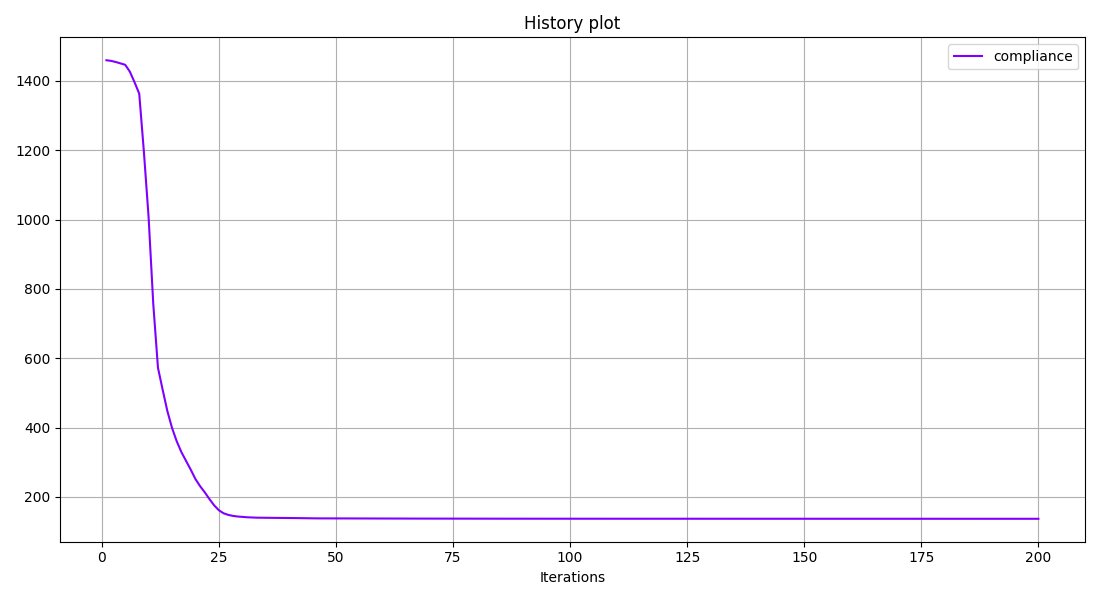

History plot
<gemseo.post.basic_history.BasicHistory object at 0x7b1d43d4b740>

Plot the solution

scenario.post_process(post_name="TopologyView", n_x=n_x, n_y=n_y, show=True, save=False)
plot topology optimization short cantilever
<gemseo.post.topology_view.TopologyView object at 0x7b1d50a05ca0>

Total running time of the script: (0 minutes 4.778 seconds)

Gallery generated by Sphinx-Gallery
