GEMSEO in 10 minutes


This is a short introduction to GEMSEO, geared mainly for new users. In this example, we will set up a simple Multi-disciplinary Design Optimization (MDO) problem based on a simple analytic problem.


First, we will import all the classes and functions needed for the tutorials.

from __future__ import annotations

from math import exp

from numpy import array
from numpy import ones

from gemseo import configure_logger
from gemseo import create_design_space
from gemseo import create_discipline
from gemseo import create_scenario
from gemseo import generate_n2_plot

These imports are needed to compute mathematical expressions and to instantiate NumPy arrays. NumPy arrays are used to store numerical data in GEMSEO at a low level. If you are not comfortable using NumPy, please have a look at the Numpy Quickstart tutorial.

Here, we configure the GEMSEO logger in order to get information of the process as it is executed.

<RootLogger root (INFO)>

A simple MDO test case: the Sellar Problem

We will consider in this example the Sellar’s problem:

\[\begin{split}\begin{aligned} \text{minimize the objective function }&\text{obj}=x_{\text{local}}^2 + x_{\text{shared},2} +y_1^2+e^{-y_2} \\ \text{with respect to the design variables }&x_{\text{shared}},\,x_{\text{local}} \\ \text{subject to the general constraints } & c_1 \leq 0\\ & c_2 \leq 0\\ \text{subject to the bound constraints } & -10 \leq x_{\text{shared},1} \leq 10\\ & 0 \leq x_{\text{shared},2} \leq 10\\ & 0 \leq x_{\text{local}} \leq 10. \end{aligned}\end{split}\]

where the coupling variables are

\[\text{Discipline 1: } y_1 = \sqrt{x_{\text{shared},1}^2 + x_{\text{shared},2} + x_{local} - 0.2\,y_2},\]


\[\text{Discipline 2: }y_2 = |y_1| + x_{\text{shared},1} + x_{\text{shared},2}.\]

and where the general constraints are

\[ \begin{align}\begin{aligned}c_1 = 3.16 - y_1^2\\c_2 = y_2 - 24.\end{aligned}\end{align} \]

Definition of the disciplines using Python functions

The Sellar’s problem is composed of two disciplines and an objective function. As they are expressed analytically, it is possible to write them as simple Python functions which take as parameters the design variables and the coupling variables. The returned values may be the outputs of a discipline, the values of the constraints or the value of the objective function. Their definitions read:

def f_sellar_system(x_local=1.0, x_shared_2=3.0, y_1=1.0, y_2=1.0):
    """Objective function."""
    obj = x_local**2 + x_shared_2 + y_1**2 + exp(-y_2)
    c_1 = 3.16 - y_1**2
    c_2 = y_2 - 24.0
    return obj, c_1, c_2

def f_sellar_1(x_local=1.0, y_2=1.0, x_shared_1=1.0, x_shared_2=3.0):
    """Function for discipline 1."""
    y_1 = (x_shared_1**2 + x_shared_2 + x_local - 0.2 * y_2) ** 0.5
    return y_1

def f_sellar_2(y_1=1.0, x_shared_1=1.0, x_shared_2=3.0):
    """Function for discipline 2."""
    y_2 = abs(y_1) + x_shared_1 + x_shared_2
    return y_2

These Python functions can be easily converted into GEMSEO MDODiscipline objects by using the AutoPyDiscipline discipline. It enables the automatic wrapping of a Python function into a GEMSEO MDODiscipline by only passing a reference to the function to be wrapped. GEMSEO handles the wrapping and the grammar creation under the hood. The AutoPyDiscipline discipline can be instantiated using the create_discipline() function from the GEMSEO API:

disc_sellar_system = create_discipline("AutoPyDiscipline", py_func=f_sellar_system)

disc_sellar_1 = create_discipline("AutoPyDiscipline", py_func=f_sellar_1)

disc_sellar_2 = create_discipline("AutoPyDiscipline", py_func=f_sellar_2)
WARNING - 13:54:49: Discipline f_sellar_system: py_func has inconsistent type hints: either both the signature arguments and the return values shall have type hints or none. The grammars will not use the type hints at all.
WARNING - 13:54:49: Discipline f_sellar_1: py_func has inconsistent type hints: either both the signature arguments and the return values shall have type hints or none. The grammars will not use the type hints at all.
WARNING - 13:54:49: Discipline f_sellar_2: py_func has inconsistent type hints: either both the signature arguments and the return values shall have type hints or none. The grammars will not use the type hints at all.

Note that it is possible to define the Sellar disciplines by subclassing the MDODiscipline class and implementing the constuctor and the _run method by hand. Although it would take more time, it may also provide more flexibility and more options. This method is illustrated in the Sellar from scratch tutorial.

We then create a list of disciplines, which will be used later to create an MDOScenario:

disciplines = [disc_sellar_system, disc_sellar_1, disc_sellar_2]

We can quickly access the most relevant information of any discipline (name, inputs, and outputs) with their string representations:

  • Inputs: x_local, x_shared_1, x_shared_2, y_2
  • Outputs: y_1

Moreover, we can get the default input values of a discipline with the attribute MDODiscipline.default_inputs:

{'x_shared_1': array([1.]), 'x_shared_2': array([3.]), 'x_local': array([1.]), 'y_2': array([1.])}

You may also be interested in plotting the couplings of your disciplines. A quick way of getting this information is the high-level function generate_n2_plot(). A much more detailed explanation of coupling visualization is available here.

generate_n2_plot(disciplines, save=False, show=True)
plot gemseo in 10 minutes


For the sake of clarity, these disciplines are overly simple. Yet, GEMSEO enables the definition of much more complex disciplines, such as wrapping complex COTS. Check out the other tutorials and our publications list for more information.

Definition of the design space

In order to define MDOScenario, a design space has to be defined by creating a DesignSpace object. The design space definition reads:

design_space = create_design_space()
design_space.add_variable("x_local", l_b=0.0, u_b=10.0, value=ones(1))
design_space.add_variable("x_shared_1", l_b=-10, u_b=10.0, value=array([4.0]))
design_space.add_variable("x_shared_2", l_b=0.0, u_b=10.0, value=array([3.0]))
design_space.add_variable("y_1", l_b=-100.0, u_b=100.0, value=ones(1))
design_space.add_variable("y_2", l_b=-100.0, u_b=100.0, value=ones(1))
Design space:
Name Lower bound Value Upper bound Type
x_local 0 1 10 float
x_shared_1 -10 4 10 float
x_shared_2 0 3 10 float
y_1 -100 1 100 float
y_2 -100 1 100 float

Definition of the MDO scenario

Once the disciplines and the design space have been defined, we can create our MDO scenario by using the high-level function create_scenario(). In this simple example, we are using a Multiple Disciplinary Feasible (MDF) strategy. The Multiple Disciplinary Analyses (MDA) are carried out using the Gauss-Seidel method. The scenario definition reads:

scenario = create_scenario(

It can be noted that neither a workflow nor a dataflow has been defined. By design, there is no need to explicitly define the workflow and the dataflow in GEMSEO:

  • the workflow is determined from the MDO formulation used.

  • the dataflow is determined from the variable names used in the disciplines. Then, it is of uttermost importance to be consistent while choosing and using the variable names in the disciplines.


As the workflow and the dataflow are implicitly determined by GEMSEO, set-up errors may easily occur. Although it is not performed in this example, it is strongly advised to

  • check the interfaces between the several disciplines using an N2 diagram,

  • check the MDO process using an XDSM representation

Setting the constraints

Most of the MDO problems are under constraints. In our problem, we have two inequality constraints, and their declaration reads:

scenario.add_constraint("c_1", constraint_type="ineq")
scenario.add_constraint("c_2", constraint_type="ineq")

Execution of the scenario

The scenario is now complete and ready to be executed. When running the optimization process, the user can choose the optimization algorithm and the maximum number of iterations to perform. The execution of the scenario reads:

scenario.execute({"max_iter": 10, "algo": "SLSQP"})
    INFO - 13:54:49:
    INFO - 13:54:49: *** Start MDOScenario execution ***
    INFO - 13:54:49: MDOScenario
    INFO - 13:54:49:    Disciplines: f_sellar_1 f_sellar_2 f_sellar_system
    INFO - 13:54:49:    MDO formulation: MDF
    INFO - 13:54:49: Optimization problem:
    INFO - 13:54:49:    minimize obj(x_local, x_shared_1, x_shared_2)
    INFO - 13:54:49:    with respect to x_local, x_shared_1, x_shared_2
    INFO - 13:54:49:    subject to constraints:
    INFO - 13:54:49:       c_1(x_local, x_shared_1, x_shared_2) <= 0.0
    INFO - 13:54:49:       c_2(x_local, x_shared_1, x_shared_2) <= 0.0
    INFO - 13:54:49:    over the design space:
    INFO - 13:54:49:       +------------+-------------+-------+-------------+-------+
    INFO - 13:54:49:       | Name       | Lower bound | Value | Upper bound | Type  |
    INFO - 13:54:49:       +------------+-------------+-------+-------------+-------+
    INFO - 13:54:49:       | x_local    |      0      |   1   |      10     | float |
    INFO - 13:54:49:       | x_shared_1 |     -10     |   4   |      10     | float |
    INFO - 13:54:49:       | x_shared_2 |      0      |   3   |      10     | float |
    INFO - 13:54:49:       +------------+-------------+-------+-------------+-------+
    INFO - 13:54:49: Solving optimization problem with algorithm SLSQP:
    INFO - 13:54:49:     10%|█         | 1/10 [00:00<00:00, 38.64 it/sec, obj=21.8]
    INFO - 13:54:50:     20%|██        | 2/10 [00:00<00:00, 26.52 it/sec, obj=5.39]
    INFO - 13:54:50:     30%|███       | 3/10 [00:00<00:00, 24.67 it/sec, obj=3.41]
    INFO - 13:54:50:     40%|████      | 4/10 [00:00<00:00, 23.59 it/sec, obj=3.19]
    INFO - 13:54:50:     50%|█████     | 5/10 [00:00<00:00, 23.25 it/sec, obj=3.18]
    INFO - 13:54:50:     60%|██████    | 6/10 [00:00<00:00, 23.04 it/sec, obj=3.18]
    INFO - 13:54:50: Optimization result:
    INFO - 13:54:50:    Optimizer info:
    INFO - 13:54:50:       Status: 8
    INFO - 13:54:50:       Message: Positive directional derivative for linesearch
    INFO - 13:54:50:       Number of calls to the objective function by the optimizer: 7
    INFO - 13:54:50:    Solution:
    INFO - 13:54:50:       The solution is feasible.
    INFO - 13:54:50:       Objective: 3.183393951747747
    INFO - 13:54:50:       Standardized constraints:
    INFO - 13:54:50:          c_1 = 4.196643033083092e-12
    INFO - 13:54:50:          c_2 = -20.244722237800833
    INFO - 13:54:50:       Design space:
    INFO - 13:54:50:          +------------+-------------+-----------------------+-------------+-------+
    INFO - 13:54:50:          | Name       | Lower bound |         Value         | Upper bound | Type  |
    INFO - 13:54:50:          +------------+-------------+-----------------------+-------------+-------+
    INFO - 13:54:50:          | x_local    |      0      |           0           |      10     | float |
    INFO - 13:54:50:          | x_shared_1 |     -10     |   1.977638878736485   |      10     | float |
    INFO - 13:54:50:          | x_shared_2 |      0      | 7.449086152527647e-13 |      10     | float |
    INFO - 13:54:50:          +------------+-------------+-----------------------+-------------+-------+
    INFO - 13:54:50: *** End MDOScenario execution (time: 0:00:00.314688) ***

{'max_iter': 10, 'algo': 'SLSQP'}

The scenario converged after 7 iterations. Useful information can be found in the standard output, as seen above.


GEMSEO provides the user with a lot of optimization algorithms and options. An exhaustive list of the algorithms available in GEMSEO can be found in the Optimization algorithms section.

Post-processing the results

Post-processings such as plots exhibiting the evolutions of the objective function, the design variables or the constraints can be extremely useful. The convergence of the objective function, design variables and of the inequality constraints can be observed in the following plots. Many other post-processings are available in GEMSEO and are described in Post-processing.

scenario.post_process("OptHistoryView", save=False, show=True)
  • Evolution of the optimization variables

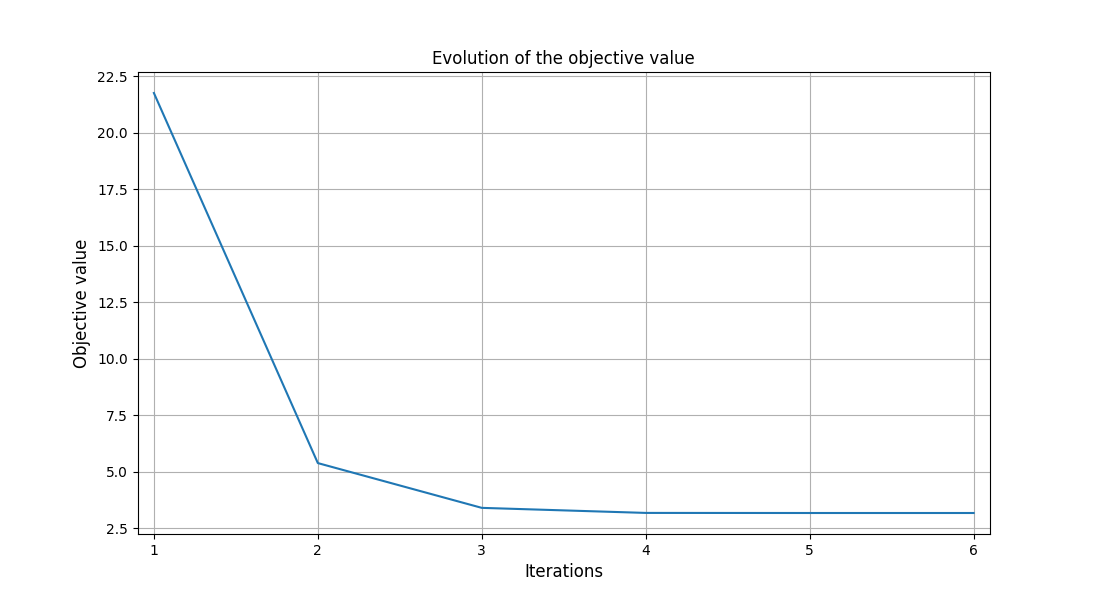

  • Evolution of the objective value

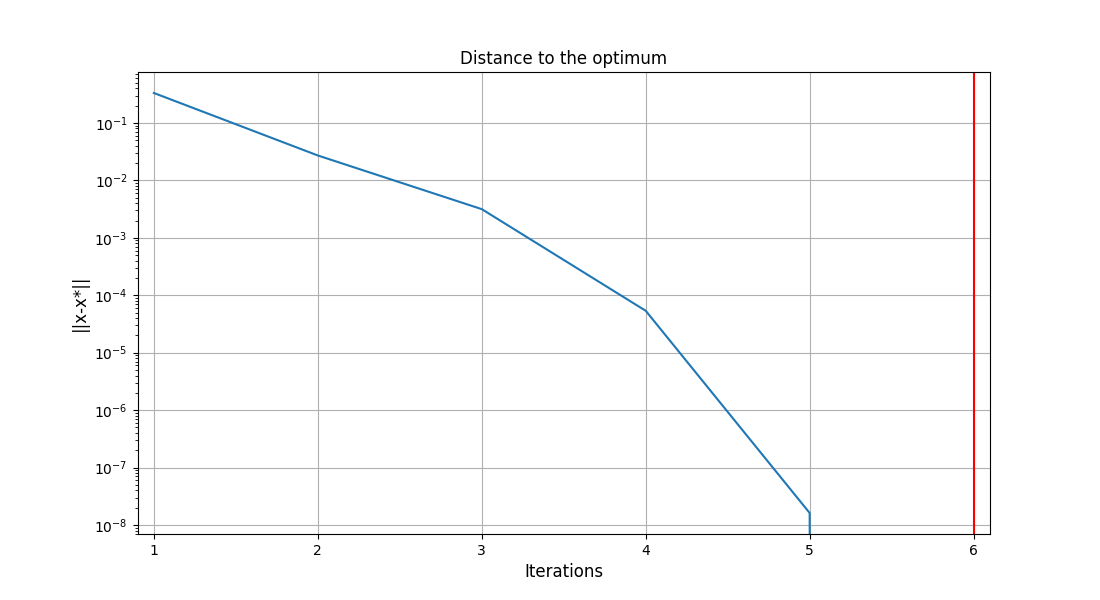

  • Distance to the optimum

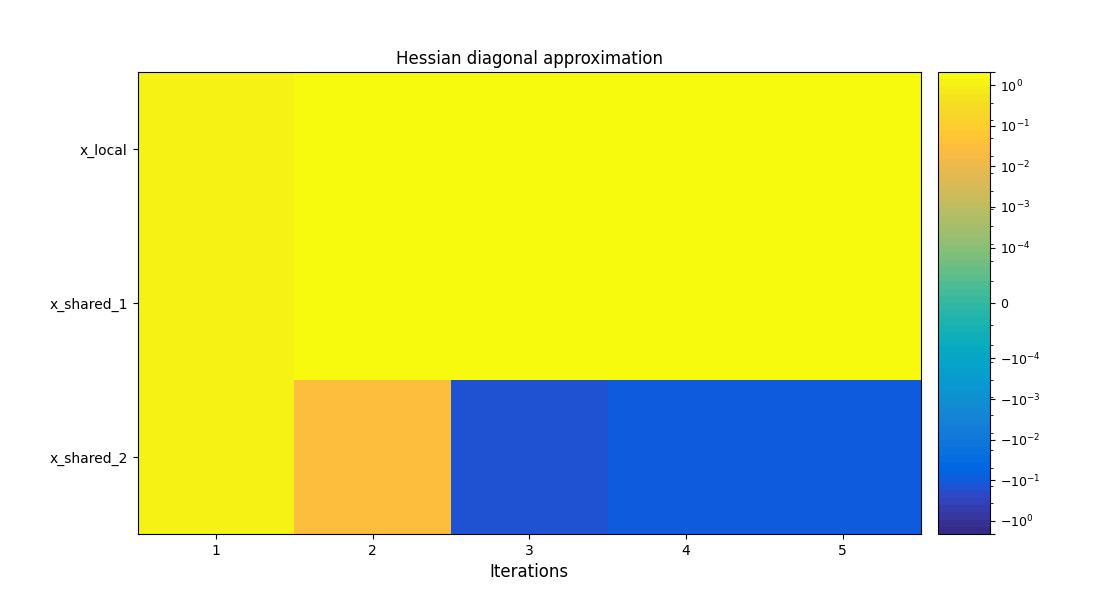

  • Hessian diagonal approximation

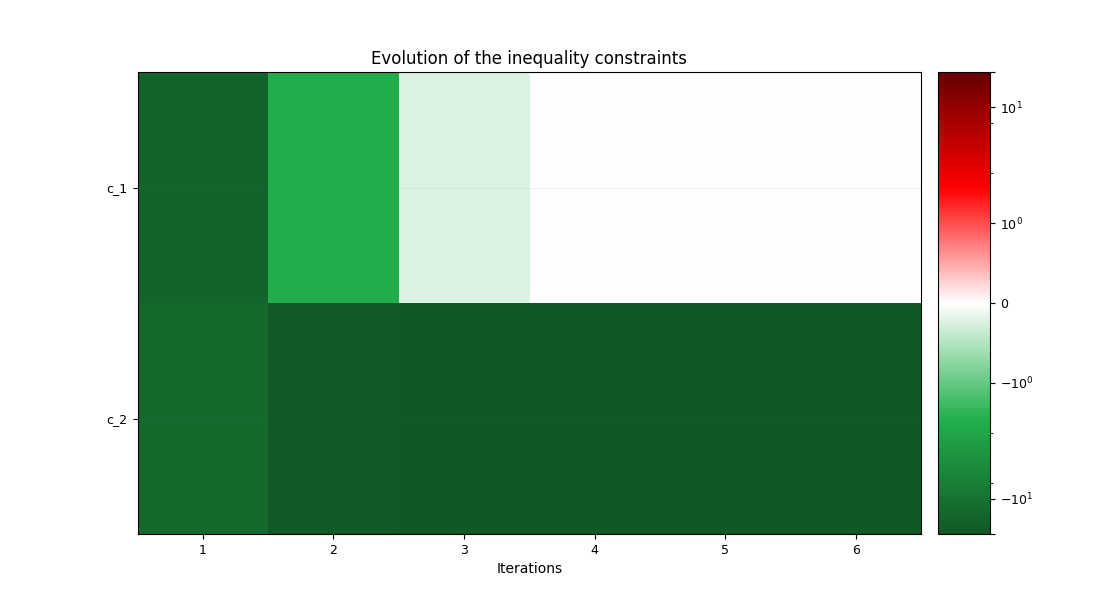

  • Evolution of the inequality constraints
< object at 0x7f28dbc06d00>


Such post-processings can be exported in PDF format, by setting save to True and potentially additional settings (see the Scenario.post_process() options).

Exporting the problem data.

After the execution of the scenario, you may want to export your data to use it elsewhere. The Scenario.to_dataset() will allow you to export your results to a Dataset, the basic GEMSEO class to store data.

dataset = scenario.to_dataset("a_name_for_my_dataset")

What’s next?

You have completed a short introduction to GEMSEO. You can now look at the tutorials which exhibit more complex use-cases. You can also have a look at the documentation to discover the several features and options of GEMSEO.

Total running time of the script: (0 minutes 1.748 seconds)
