Solve a 2D L-shape topology optimization problem#
from __future__ import annotations
from gemseo import configure_logger
from gemseo import create_scenario
from gemseo.problems.topology_optimization.topopt_initialize import (
initialize_design_space_and_discipline_to,
)
configure_logger()
<RootLogger root (INFO)>
Setup the topology optimization problem#
Define the target volume fraction:
volume_fraction = 0.3
Define the problem type:
problem_name = "L-Shape"
Define the number of elements in the x- and y- directions:
n_x = 25
n_y = 25
Define the full material Young's modulus and Poisson's ratio:
e0 = 1
nu = 0.3
Define the penalty of the SIMP approach:
penalty = 3
Define the minimum member size in the solution:
min_member_size = 1.5
Instantiate the DesignSpace and the disciplines:
design_space, disciplines = initialize_design_space_and_discipline_to(
problem=problem_name,
n_x=n_x,
n_y=n_y,
e0=e0,
nu=nu,
penalty=penalty,
min_member_size=min_member_size,
vf0=volume_fraction,
)
Solve the topology optimization problem#
Generate an MDOScenario:
scenario = create_scenario(
disciplines,
"compliance",
design_space,
formulation_name="DisciplinaryOpt",
)
Add the volume fraction constraint to the scenario:
scenario.add_constraint(
"volume fraction", constraint_type="ineq", value=volume_fraction
)
Generate the XDSM
scenario.xdsmize(save_html=False)
Execute the scenario
scenario.execute(algo_name="NLOPT_MMA", max_iter=200)
INFO - 20:37:44: *** Start MDOScenario execution ***
INFO - 20:37:44: MDOScenario
INFO - 20:37:44: Disciplines: DensityFilter FiniteElementAnalysis MaterialModelInterpolation VolumeFraction
INFO - 20:37:44: MDO formulation: DisciplinaryOpt
INFO - 20:37:44: Optimization problem:
INFO - 20:37:44: minimize compliance(x)
INFO - 20:37:44: with respect to x
INFO - 20:37:44: under the inequality constraints
INFO - 20:37:44: volume fraction(x) <= 0.3
INFO - 20:37:44: Solving optimization problem with algorithm NLOPT_MMA:
INFO - 20:37:44: 1%| | 2/200 [00:00<00:03, 60.50 it/sec, obj=2.23e+3]
INFO - 20:37:44: 2%|▏ | 3/200 [00:00<00:02, 70.04 it/sec, obj=1.96e+3]
INFO - 20:37:44: 2%|▏ | 4/200 [00:00<00:02, 76.73 it/sec, obj=1.75e+3]
INFO - 20:37:44: 2%|▎ | 5/200 [00:00<00:02, 80.52 it/sec, obj=1.57e+3]
INFO - 20:37:44: 3%|▎ | 6/200 [00:00<00:02, 83.10 it/sec, obj=1.2e+3]
INFO - 20:37:44: 4%|▎ | 7/200 [00:00<00:02, 84.93 it/sec, obj=963]
INFO - 20:37:44: 4%|▍ | 8/200 [00:00<00:02, 86.47 it/sec, obj=624]
INFO - 20:37:44: 4%|▍ | 9/200 [00:00<00:02, 87.55 it/sec, obj=497]
INFO - 20:37:44: 5%|▌ | 10/200 [00:00<00:02, 88.57 it/sec, obj=395]
INFO - 20:37:44: 6%|▌ | 11/200 [00:00<00:02, 89.07 it/sec, obj=306]
INFO - 20:37:44: 6%|▌ | 12/200 [00:00<00:02, 90.08 it/sec, obj=251]
INFO - 20:37:44: 6%|▋ | 13/200 [00:00<00:02, 90.92 it/sec, obj=225]
INFO - 20:37:44: 7%|▋ | 14/200 [00:00<00:02, 91.83 it/sec, obj=209]
INFO - 20:37:44: 8%|▊ | 15/200 [00:00<00:01, 92.74 it/sec, obj=201]
INFO - 20:37:44: 8%|▊ | 16/200 [00:00<00:01, 93.52 it/sec, obj=195]
INFO - 20:37:44: 8%|▊ | 17/200 [00:00<00:01, 94.14 it/sec, obj=190]
INFO - 20:37:44: 9%|▉ | 18/200 [00:00<00:01, 94.84 it/sec, obj=186]
INFO - 20:37:44: 10%|▉ | 19/200 [00:00<00:01, 95.43 it/sec, obj=182]
INFO - 20:37:44: 10%|█ | 20/200 [00:00<00:01, 96.06 it/sec, obj=178]
INFO - 20:37:44: 10%|█ | 21/200 [00:00<00:01, 96.55 it/sec, obj=174]
INFO - 20:37:44: 11%|█ | 22/200 [00:00<00:01, 97.13 it/sec, obj=169]
INFO - 20:37:44: 12%|█▏ | 23/200 [00:00<00:01, 97.47 it/sec, obj=164]
INFO - 20:37:44: 12%|█▏ | 24/200 [00:00<00:01, 97.88 it/sec, obj=161]
INFO - 20:37:44: 12%|█▎ | 25/200 [00:00<00:01, 98.13 it/sec, obj=159]
INFO - 20:37:44: 13%|█▎ | 26/200 [00:00<00:01, 98.49 it/sec, obj=157]
INFO - 20:37:44: 14%|█▎ | 27/200 [00:00<00:01, 98.89 it/sec, obj=156]
INFO - 20:37:44: 14%|█▍ | 28/200 [00:00<00:01, 99.08 it/sec, obj=155]
INFO - 20:37:44: 14%|█▍ | 29/200 [00:00<00:01, 99.21 it/sec, obj=154]
INFO - 20:37:44: 15%|█▌ | 30/200 [00:00<00:01, 99.44 it/sec, obj=154]
INFO - 20:37:44: 16%|█▌ | 31/200 [00:00<00:01, 99.61 it/sec, obj=153]
INFO - 20:37:44: 16%|█▌ | 32/200 [00:00<00:01, 99.71 it/sec, obj=153]
INFO - 20:37:44: 16%|█▋ | 33/200 [00:00<00:01, 99.96 it/sec, obj=152]
INFO - 20:37:44: 17%|█▋ | 34/200 [00:00<00:01, 100.32 it/sec, obj=152]
INFO - 20:37:44: 18%|█▊ | 35/200 [00:00<00:01, 100.54 it/sec, obj=152]
INFO - 20:37:44: 18%|█▊ | 36/200 [00:00<00:01, 100.83 it/sec, obj=152]
INFO - 20:37:44: 18%|█▊ | 37/200 [00:00<00:01, 101.12 it/sec, obj=152]
INFO - 20:37:44: 19%|█▉ | 38/200 [00:00<00:01, 101.32 it/sec, obj=152]
INFO - 20:37:44: 20%|█▉ | 39/200 [00:00<00:01, 101.50 it/sec, obj=152]
INFO - 20:37:44: 20%|██ | 40/200 [00:00<00:01, 101.67 it/sec, obj=152]
INFO - 20:37:44: 20%|██ | 41/200 [00:00<00:01, 101.87 it/sec, obj=152]
INFO - 20:37:44: 21%|██ | 42/200 [00:00<00:01, 102.13 it/sec, obj=152]
INFO - 20:37:44: 22%|██▏ | 43/200 [00:00<00:01, 102.36 it/sec, obj=152]
INFO - 20:37:44: 22%|██▏ | 44/200 [00:00<00:01, 102.58 it/sec, obj=152]
INFO - 20:37:44: 22%|██▎ | 45/200 [00:00<00:01, 102.84 it/sec, obj=152]
INFO - 20:37:44: 23%|██▎ | 46/200 [00:00<00:01, 102.98 it/sec, obj=152]
INFO - 20:37:44: 24%|██▎ | 47/200 [00:00<00:01, 103.25 it/sec, obj=152]
INFO - 20:37:44: 24%|██▍ | 48/200 [00:00<00:01, 103.58 it/sec, obj=152]
INFO - 20:37:44: 24%|██▍ | 49/200 [00:00<00:01, 103.91 it/sec, obj=152]
INFO - 20:37:44: 25%|██▌ | 50/200 [00:00<00:01, 104.10 it/sec, obj=152]
INFO - 20:37:44: 26%|██▌ | 51/200 [00:00<00:01, 104.24 it/sec, obj=152]
INFO - 20:37:44: 26%|██▌ | 52/200 [00:00<00:01, 104.40 it/sec, obj=152]
INFO - 20:37:44: 26%|██▋ | 53/200 [00:00<00:01, 104.48 it/sec, obj=152]
INFO - 20:37:44: 27%|██▋ | 54/200 [00:00<00:01, 104.56 it/sec, obj=152]
INFO - 20:37:44: 28%|██▊ | 55/200 [00:00<00:01, 104.64 it/sec, obj=152]
INFO - 20:37:44: 28%|██▊ | 56/200 [00:00<00:01, 104.80 it/sec, obj=152]
INFO - 20:37:44: 28%|██▊ | 57/200 [00:00<00:01, 104.92 it/sec, obj=152]
INFO - 20:37:44: 29%|██▉ | 58/200 [00:00<00:01, 104.99 it/sec, obj=152]
INFO - 20:37:44: 30%|██▉ | 59/200 [00:00<00:01, 105.07 it/sec, obj=152]
INFO - 20:37:44: 30%|███ | 60/200 [00:00<00:01, 105.21 it/sec, obj=152]
INFO - 20:37:44: 30%|███ | 61/200 [00:00<00:01, 105.33 it/sec, obj=152]
INFO - 20:37:44: 31%|███ | 62/200 [00:00<00:01, 105.47 it/sec, obj=152]
INFO - 20:37:44: 32%|███▏ | 63/200 [00:00<00:01, 105.57 it/sec, obj=152]
INFO - 20:37:44: 32%|███▏ | 64/200 [00:00<00:01, 105.74 it/sec, obj=152]
INFO - 20:37:44: 32%|███▎ | 65/200 [00:00<00:01, 105.81 it/sec, obj=152]
INFO - 20:37:44: 33%|███▎ | 66/200 [00:00<00:01, 105.92 it/sec, obj=152]
INFO - 20:37:44: 34%|███▎ | 67/200 [00:00<00:01, 106.05 it/sec, obj=152]
INFO - 20:37:44: 34%|███▍ | 68/200 [00:00<00:01, 106.18 it/sec, obj=152]
INFO - 20:37:44: 34%|███▍ | 69/200 [00:00<00:01, 106.32 it/sec, obj=152]
INFO - 20:37:44: 35%|███▌ | 70/200 [00:00<00:01, 106.48 it/sec, obj=152]
INFO - 20:37:44: 36%|███▌ | 71/200 [00:00<00:01, 106.73 it/sec, obj=152]
INFO - 20:37:44: 36%|███▌ | 72/200 [00:00<00:01, 106.88 it/sec, obj=152]
INFO - 20:37:44: 36%|███▋ | 73/200 [00:00<00:01, 107.01 it/sec, obj=152]
INFO - 20:37:44: 37%|███▋ | 74/200 [00:00<00:01, 107.08 it/sec, obj=152]
INFO - 20:37:44: 38%|███▊ | 75/200 [00:00<00:01, 107.27 it/sec, obj=152]
INFO - 20:37:44: 38%|███▊ | 76/200 [00:00<00:01, 107.39 it/sec, obj=152]
INFO - 20:37:44: 38%|███▊ | 77/200 [00:00<00:01, 107.58 it/sec, obj=152]
INFO - 20:37:44: 39%|███▉ | 78/200 [00:00<00:01, 107.67 it/sec, obj=152]
INFO - 20:37:44: 40%|███▉ | 79/200 [00:00<00:01, 107.86 it/sec, obj=152]
INFO - 20:37:44: 40%|████ | 80/200 [00:00<00:01, 107.99 it/sec, obj=152]
INFO - 20:37:44: 40%|████ | 81/200 [00:00<00:01, 108.21 it/sec, obj=152]
INFO - 20:37:44: 41%|████ | 82/200 [00:00<00:01, 108.40 it/sec, obj=152]
INFO - 20:37:44: 42%|████▏ | 83/200 [00:00<00:01, 108.53 it/sec, obj=152]
INFO - 20:37:44: 42%|████▏ | 84/200 [00:00<00:01, 108.63 it/sec, obj=152]
INFO - 20:37:44: 42%|████▎ | 85/200 [00:00<00:01, 108.79 it/sec, obj=152]
INFO - 20:37:44: 43%|████▎ | 86/200 [00:00<00:01, 108.84 it/sec, obj=152]
INFO - 20:37:44: 44%|████▎ | 87/200 [00:00<00:01, 108.96 it/sec, obj=152]
INFO - 20:37:44: 44%|████▍ | 88/200 [00:00<00:01, 109.08 it/sec, obj=152]
INFO - 20:37:44: 44%|████▍ | 89/200 [00:00<00:01, 109.20 it/sec, obj=152]
INFO - 20:37:44: 45%|████▌ | 90/200 [00:00<00:01, 109.34 it/sec, obj=152]
INFO - 20:37:44: 46%|████▌ | 91/200 [00:00<00:00, 109.45 it/sec, obj=152]
INFO - 20:37:44: 46%|████▌ | 92/200 [00:00<00:00, 109.61 it/sec, obj=152]
INFO - 20:37:44: 46%|████▋ | 93/200 [00:00<00:00, 109.75 it/sec, obj=152]
INFO - 20:37:44: 47%|████▋ | 94/200 [00:00<00:00, 109.83 it/sec, obj=152]
INFO - 20:37:44: 48%|████▊ | 95/200 [00:00<00:00, 109.93 it/sec, obj=152]
INFO - 20:37:44: 48%|████▊ | 96/200 [00:00<00:00, 109.99 it/sec, obj=152]
INFO - 20:37:45: 48%|████▊ | 97/200 [00:00<00:00, 110.11 it/sec, obj=152]
INFO - 20:37:45: 49%|████▉ | 98/200 [00:00<00:00, 110.25 it/sec, obj=152]
INFO - 20:37:45: 50%|████▉ | 99/200 [00:00<00:00, 110.40 it/sec, obj=152]
INFO - 20:37:45: 50%|█████ | 100/200 [00:00<00:00, 110.53 it/sec, obj=152]
INFO - 20:37:45: 50%|█████ | 101/200 [00:00<00:00, 110.58 it/sec, obj=152]
INFO - 20:37:45: 51%|█████ | 102/200 [00:00<00:00, 110.71 it/sec, obj=152]
INFO - 20:37:45: 52%|█████▏ | 103/200 [00:00<00:00, 110.82 it/sec, obj=152]
INFO - 20:37:45: 52%|█████▏ | 104/200 [00:00<00:00, 110.93 it/sec, obj=152]
INFO - 20:37:45: 52%|█████▎ | 105/200 [00:00<00:00, 110.96 it/sec, obj=152]
INFO - 20:37:45: 53%|█████▎ | 106/200 [00:00<00:00, 111.04 it/sec, obj=152]
INFO - 20:37:45: 54%|█████▎ | 107/200 [00:00<00:00, 111.13 it/sec, obj=152]
INFO - 20:37:45: 54%|█████▍ | 108/200 [00:00<00:00, 111.17 it/sec, obj=152]
INFO - 20:37:45: 55%|█████▍ | 109/200 [00:00<00:00, 111.27 it/sec, obj=152]
INFO - 20:37:45: 55%|█████▌ | 110/200 [00:00<00:00, 111.38 it/sec, obj=152]
INFO - 20:37:45: 56%|█████▌ | 111/200 [00:00<00:00, 111.46 it/sec, obj=152]
INFO - 20:37:45: 56%|█████▌ | 112/200 [00:01<00:00, 111.57 it/sec, obj=152]
INFO - 20:37:45: 56%|█████▋ | 113/200 [00:01<00:00, 111.57 it/sec, obj=152]
INFO - 20:37:45: 57%|█████▋ | 114/200 [00:01<00:00, 111.67 it/sec, obj=152]
INFO - 20:37:45: 57%|█████▊ | 115/200 [00:01<00:00, 111.74 it/sec, obj=152]
INFO - 20:37:45: 58%|█████▊ | 116/200 [00:01<00:00, 111.82 it/sec, obj=152]
INFO - 20:37:45: 58%|█████▊ | 117/200 [00:01<00:00, 111.91 it/sec, obj=152]
INFO - 20:37:45: 59%|█████▉ | 118/200 [00:01<00:00, 112.01 it/sec, obj=152]
INFO - 20:37:45: 60%|█████▉ | 119/200 [00:01<00:00, 112.09 it/sec, obj=152]
INFO - 20:37:45: 60%|██████ | 120/200 [00:01<00:00, 112.19 it/sec, obj=152]
INFO - 20:37:45: 60%|██████ | 121/200 [00:01<00:00, 112.28 it/sec, obj=152]
INFO - 20:37:45: 61%|██████ | 122/200 [00:01<00:00, 112.38 it/sec, obj=152]
INFO - 20:37:45: 62%|██████▏ | 123/200 [00:01<00:00, 112.43 it/sec, obj=152]
INFO - 20:37:45: 62%|██████▏ | 124/200 [00:01<00:00, 112.49 it/sec, obj=152]
INFO - 20:37:45: 62%|██████▎ | 125/200 [00:01<00:00, 112.52 it/sec, obj=152]
INFO - 20:37:45: 63%|██████▎ | 126/200 [00:01<00:00, 112.61 it/sec, obj=152]
INFO - 20:37:45: 64%|██████▎ | 127/200 [00:01<00:00, 112.67 it/sec, obj=152]
INFO - 20:37:45: 64%|██████▍ | 128/200 [00:01<00:00, 112.75 it/sec, obj=152]
INFO - 20:37:45: 64%|██████▍ | 129/200 [00:01<00:00, 112.82 it/sec, obj=152]
INFO - 20:37:45: 65%|██████▌ | 130/200 [00:01<00:00, 112.92 it/sec, obj=152]
INFO - 20:37:45: 66%|██████▌ | 131/200 [00:01<00:00, 113.01 it/sec, obj=152]
INFO - 20:37:45: 66%|██████▌ | 132/200 [00:01<00:00, 113.08 it/sec, obj=152]
INFO - 20:37:45: 66%|██████▋ | 133/200 [00:01<00:00, 113.14 it/sec, obj=152]
INFO - 20:37:45: 67%|██████▋ | 134/200 [00:01<00:00, 113.20 it/sec, obj=152]
INFO - 20:37:45: 68%|██████▊ | 135/200 [00:01<00:00, 113.28 it/sec, obj=152]
INFO - 20:37:45: 68%|██████▊ | 136/200 [00:01<00:00, 113.35 it/sec, obj=152]
INFO - 20:37:45: 68%|██████▊ | 137/200 [00:01<00:00, 113.42 it/sec, obj=152]
INFO - 20:37:45: 69%|██████▉ | 138/200 [00:01<00:00, 113.49 it/sec, obj=152]
INFO - 20:37:45: 70%|██████▉ | 139/200 [00:01<00:00, 113.55 it/sec, obj=152]
INFO - 20:37:45: 70%|███████ | 140/200 [00:01<00:00, 113.62 it/sec, obj=152]
INFO - 20:37:45: 70%|███████ | 141/200 [00:01<00:00, 113.69 it/sec, obj=152]
INFO - 20:37:45: 71%|███████ | 142/200 [00:01<00:00, 113.78 it/sec, obj=152]
INFO - 20:37:45: 72%|███████▏ | 143/200 [00:01<00:00, 113.83 it/sec, obj=152]
INFO - 20:37:45: 72%|███████▏ | 144/200 [00:01<00:00, 113.91 it/sec, obj=152]
INFO - 20:37:45: 72%|███████▎ | 145/200 [00:01<00:00, 113.98 it/sec, obj=152]
INFO - 20:37:45: 73%|███████▎ | 146/200 [00:01<00:00, 114.03 it/sec, obj=152]
INFO - 20:37:45: 74%|███████▎ | 147/200 [00:01<00:00, 114.07 it/sec, obj=152]
INFO - 20:37:45: 74%|███████▍ | 148/200 [00:01<00:00, 114.12 it/sec, obj=152]
INFO - 20:37:45: 74%|███████▍ | 149/200 [00:01<00:00, 114.17 it/sec, obj=152]
INFO - 20:37:45: 75%|███████▌ | 150/200 [00:01<00:00, 114.23 it/sec, obj=152]
INFO - 20:37:45: 76%|███████▌ | 151/200 [00:01<00:00, 114.28 it/sec, obj=152]
INFO - 20:37:45: 76%|███████▌ | 152/200 [00:01<00:00, 114.34 it/sec, obj=152]
INFO - 20:37:45: 76%|███████▋ | 153/200 [00:01<00:00, 114.40 it/sec, obj=152]
INFO - 20:37:45: 77%|███████▋ | 154/200 [00:01<00:00, 114.46 it/sec, obj=152]
INFO - 20:37:45: 78%|███████▊ | 155/200 [00:01<00:00, 114.50 it/sec, obj=152]
INFO - 20:37:45: 78%|███████▊ | 156/200 [00:01<00:00, 114.56 it/sec, obj=152]
INFO - 20:37:45: 78%|███████▊ | 157/200 [00:01<00:00, 114.61 it/sec, obj=152]
INFO - 20:37:45: 79%|███████▉ | 158/200 [00:01<00:00, 114.64 it/sec, obj=152]
INFO - 20:37:45: 80%|███████▉ | 159/200 [00:01<00:00, 114.67 it/sec, obj=152]
INFO - 20:37:45: 80%|████████ | 160/200 [00:01<00:00, 114.68 it/sec, obj=152]
INFO - 20:37:45: 80%|████████ | 161/200 [00:01<00:00, 114.69 it/sec, obj=152]
INFO - 20:37:45: 81%|████████ | 162/200 [00:01<00:00, 114.70 it/sec, obj=152]
INFO - 20:37:45: 82%|████████▏ | 163/200 [00:01<00:00, 114.75 it/sec, obj=152]
INFO - 20:37:45: 82%|████████▏ | 164/200 [00:01<00:00, 114.79 it/sec, obj=152]
INFO - 20:37:45: 82%|████████▎ | 165/200 [00:01<00:00, 114.84 it/sec, obj=152]
INFO - 20:37:45: 83%|████████▎ | 166/200 [00:01<00:00, 114.88 it/sec, obj=152]
INFO - 20:37:45: 84%|████████▎ | 167/200 [00:01<00:00, 114.94 it/sec, obj=152]
INFO - 20:37:45: 84%|████████▍ | 168/200 [00:01<00:00, 114.98 it/sec, obj=152]
INFO - 20:37:45: 84%|████████▍ | 169/200 [00:01<00:00, 115.02 it/sec, obj=152]
INFO - 20:37:45: 85%|████████▌ | 170/200 [00:01<00:00, 115.05 it/sec, obj=152]
INFO - 20:37:45: 86%|████████▌ | 171/200 [00:01<00:00, 115.08 it/sec, obj=152]
INFO - 20:37:45: 86%|████████▌ | 172/200 [00:01<00:00, 115.13 it/sec, obj=152]
INFO - 20:37:45: 86%|████████▋ | 173/200 [00:01<00:00, 115.17 it/sec, obj=152]
INFO - 20:37:45: 87%|████████▋ | 174/200 [00:01<00:00, 115.22 it/sec, obj=152]
INFO - 20:37:45: 88%|████████▊ | 175/200 [00:01<00:00, 115.26 it/sec, obj=152]
INFO - 20:37:45: 88%|████████▊ | 176/200 [00:01<00:00, 115.29 it/sec, obj=152]
INFO - 20:37:45: 88%|████████▊ | 177/200 [00:01<00:00, 115.32 it/sec, obj=152]
INFO - 20:37:45: 89%|████████▉ | 178/200 [00:01<00:00, 115.34 it/sec, obj=152]
INFO - 20:37:45: 90%|████████▉ | 179/200 [00:01<00:00, 115.36 it/sec, obj=152]
INFO - 20:37:45: 90%|█████████ | 180/200 [00:01<00:00, 115.37 it/sec, obj=152]
INFO - 20:37:45: 90%|█████████ | 181/200 [00:01<00:00, 115.38 it/sec, obj=152]
INFO - 20:37:45: 91%|█████████ | 182/200 [00:01<00:00, 115.39 it/sec, obj=152]
INFO - 20:37:45: 92%|█████████▏| 183/200 [00:01<00:00, 115.40 it/sec, obj=152]
INFO - 20:37:45: 92%|█████████▏| 184/200 [00:01<00:00, 115.42 it/sec, obj=152]
INFO - 20:37:45: 92%|█████████▎| 185/200 [00:01<00:00, 115.44 it/sec, obj=152]
INFO - 20:37:45: 93%|█████████▎| 186/200 [00:01<00:00, 115.44 it/sec, obj=152]
INFO - 20:37:45: 94%|█████████▎| 187/200 [00:01<00:00, 115.47 it/sec, obj=152]
INFO - 20:37:45: 94%|█████████▍| 188/200 [00:01<00:00, 115.50 it/sec, obj=152]
INFO - 20:37:45: 94%|█████████▍| 189/200 [00:01<00:00, 115.54 it/sec, obj=152]
INFO - 20:37:45: 95%|█████████▌| 190/200 [00:01<00:00, 115.56 it/sec, obj=152]
INFO - 20:37:45: 96%|█████████▌| 191/200 [00:01<00:00, 115.60 it/sec, obj=152]
INFO - 20:37:45: 96%|█████████▌| 192/200 [00:01<00:00, 115.64 it/sec, obj=152]
INFO - 20:37:45: 96%|█████████▋| 193/200 [00:01<00:00, 115.68 it/sec, obj=152]
INFO - 20:37:45: 97%|█████████▋| 194/200 [00:01<00:00, 115.73 it/sec, obj=152]
INFO - 20:37:45: 98%|█████████▊| 195/200 [00:01<00:00, 115.77 it/sec, obj=152]
INFO - 20:37:45: 98%|█████████▊| 196/200 [00:01<00:00, 115.81 it/sec, obj=152]
INFO - 20:37:45: 98%|█████████▊| 197/200 [00:01<00:00, 115.86 it/sec, obj=152]
INFO - 20:37:45: 99%|█████████▉| 198/200 [00:01<00:00, 115.87 it/sec, obj=152]
INFO - 20:37:45: 100%|█████████▉| 199/200 [00:01<00:00, 115.88 it/sec, obj=152]
INFO - 20:37:45: 100%|██████████| 200/200 [00:01<00:00, 116.26 it/sec, obj=152]
INFO - 20:37:45: Optimization result:
INFO - 20:37:45: Optimizer info:
INFO - 20:37:45: Status: None
INFO - 20:37:45: Message: Maximum number of iterations reached. GEMSEO stopped the driver.
INFO - 20:37:45: Number of calls to the objective function by the optimizer: 0
INFO - 20:37:45: Solution:
INFO - 20:37:45: The solution is feasible.
INFO - 20:37:45: Objective: 151.62875231866138
INFO - 20:37:45: Standardized constraints:
INFO - 20:37:45: [volume fraction-0.3] = 1.0732983707351096e-06
INFO - 20:37:45: *** End MDOScenario execution ***
Results#
Post-process the optimization history:

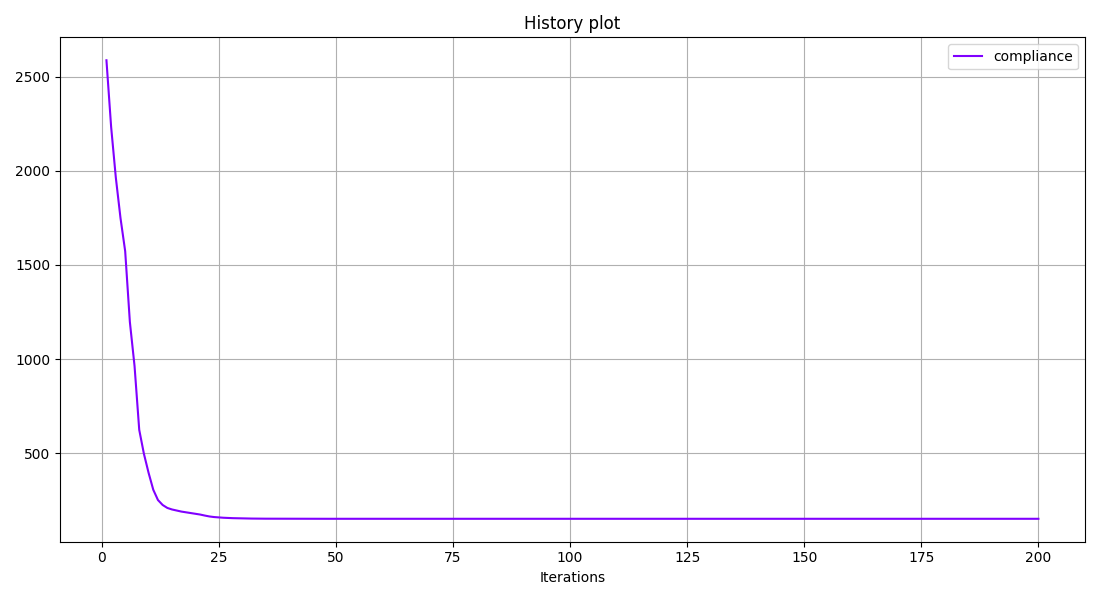

scenario.post_process(
post_name="BasicHistory", variable_names=["compliance"], show=True, save=False
)
<gemseo.post.basic_history.BasicHistory object at 0x78592fb3c350>
Plot the solution
scenario.post_process(post_name="TopologyView", n_x=n_x, n_y=n_y, show=True, save=False)
<gemseo.post.topology_view.TopologyView object at 0x78590a56b350>
Total running time of the script: (0 minutes 2.147 seconds)
