Solve a 2D MBB topology optimization problem#
from __future__ import annotations
from gemseo import configure_logger
from gemseo import create_scenario
from gemseo.problems.topology_optimization.topopt_initialize import (
initialize_design_space_and_discipline_to,
)
configure_logger()
<RootLogger root (INFO)>
Setup the topology optimization problem#
Define the target volume fraction:
volume_fraction = 0.3
Define the problem type:
problem_name = "MBB"
Define the number of elements in x- and y- directions:
n_x = 50
n_y = 25
Define the full material Young's modulus and the Poisson's ratio:
e0 = 1
nu = 0.3
Define the penalty of the SIMP approach:
penalty = 3
Define the minimum member size in the solution:
min_member_size = 1.5
Instantiate the DesignSpace and the disciplines:
design_space, disciplines = initialize_design_space_and_discipline_to(
problem=problem_name,
n_x=n_x,
n_y=n_y,
e0=e0,
nu=nu,
penalty=penalty,
min_member_size=min_member_size,
vf0=volume_fraction,
)
Solve the topology optimization problem#
Generate an MDOScenario
scenario = create_scenario(
disciplines,
"compliance",
design_space,
formulation_name="DisciplinaryOpt",
)
Add the volume fraction constraint to the scenario:
scenario.add_constraint(
"volume fraction", constraint_type="ineq", value=volume_fraction
)
Generate the XDSM
scenario.xdsmize(save_html=False)
Execute the scenario
scenario.execute(algo_name="NLOPT_MMA", max_iter=200)
INFO - 20:37:46: *** Start MDOScenario execution ***
INFO - 20:37:46: MDOScenario
INFO - 20:37:46: Disciplines: DensityFilter FiniteElementAnalysis MaterialModelInterpolation VolumeFraction
INFO - 20:37:46: MDO formulation: DisciplinaryOpt
INFO - 20:37:46: Optimization problem:
INFO - 20:37:46: minimize compliance(x)
INFO - 20:37:46: with respect to x
INFO - 20:37:46: under the inequality constraints
INFO - 20:37:46: volume fraction(x) <= 0.3
INFO - 20:37:46: Solving optimization problem with algorithm NLOPT_MMA:
INFO - 20:37:46: 1%| | 2/200 [00:00<00:06, 31.84 it/sec, obj=1.79e+3]
INFO - 20:37:46: 2%|▏ | 3/200 [00:00<00:05, 35.90 it/sec, obj=1.78e+3]
INFO - 20:37:46: 2%|▏ | 4/200 [00:00<00:05, 38.65 it/sec, obj=1.77e+3]
INFO - 20:37:46: 2%|▎ | 5/200 [00:00<00:04, 40.14 it/sec, obj=1.75e+3]
INFO - 20:37:46: 3%|▎ | 6/200 [00:00<00:04, 41.10 it/sec, obj=1.71e+3]
INFO - 20:37:46: 4%|▎ | 7/200 [00:00<00:04, 42.08 it/sec, obj=1.65e+3]
INFO - 20:37:46: 4%|▍ | 8/200 [00:00<00:04, 42.68 it/sec, obj=1.41e+3]
INFO - 20:37:46: 4%|▍ | 9/200 [00:00<00:04, 43.52 it/sec, obj=1.19e+3]
INFO - 20:37:46: 5%|▌ | 10/200 [00:00<00:04, 44.03 it/sec, obj=903]
INFO - 20:37:46: 6%|▌ | 11/200 [00:00<00:04, 44.47 it/sec, obj=724]
INFO - 20:37:46: 6%|▌ | 12/200 [00:00<00:04, 44.98 it/sec, obj=612]
INFO - 20:37:46: 6%|▋ | 13/200 [00:00<00:04, 45.43 it/sec, obj=534]
INFO - 20:37:46: 7%|▋ | 14/200 [00:00<00:04, 45.83 it/sec, obj=474]
INFO - 20:37:46: 8%|▊ | 15/200 [00:00<00:04, 46.20 it/sec, obj=444]
INFO - 20:37:46: 8%|▊ | 16/200 [00:00<00:03, 46.64 it/sec, obj=419]
INFO - 20:37:46: 8%|▊ | 17/200 [00:00<00:03, 47.07 it/sec, obj=405]
INFO - 20:37:46: 9%|▉ | 18/200 [00:00<00:03, 47.49 it/sec, obj=387]
INFO - 20:37:46: 10%|▉ | 19/200 [00:00<00:03, 47.66 it/sec, obj=364]
INFO - 20:37:47: 10%|█ | 20/200 [00:00<00:03, 47.91 it/sec, obj=338]
INFO - 20:37:47: 10%|█ | 21/200 [00:00<00:03, 48.05 it/sec, obj=306]
INFO - 20:37:47: 11%|█ | 22/200 [00:00<00:03, 48.22 it/sec, obj=272]
INFO - 20:37:47: 12%|█▏ | 23/200 [00:00<00:03, 48.53 it/sec, obj=253]
INFO - 20:37:47: 12%|█▏ | 24/200 [00:00<00:03, 48.63 it/sec, obj=244]
INFO - 20:37:47: 12%|█▎ | 25/200 [00:00<00:03, 48.85 it/sec, obj=234]
INFO - 20:37:47: 13%|█▎ | 26/200 [00:00<00:03, 48.93 it/sec, obj=224]
INFO - 20:37:47: 14%|█▎ | 27/200 [00:00<00:03, 49.05 it/sec, obj=213]
INFO - 20:37:47: 14%|█▍ | 28/200 [00:00<00:03, 49.36 it/sec, obj=207]
INFO - 20:37:47: 14%|█▍ | 29/200 [00:00<00:03, 49.57 it/sec, obj=202]
INFO - 20:37:47: 15%|█▌ | 30/200 [00:00<00:03, 49.78 it/sec, obj=197]
INFO - 20:37:47: 16%|█▌ | 31/200 [00:00<00:03, 50.00 it/sec, obj=193]
INFO - 20:37:47: 16%|█▌ | 32/200 [00:00<00:03, 50.20 it/sec, obj=190]
INFO - 20:37:47: 16%|█▋ | 33/200 [00:00<00:03, 50.44 it/sec, obj=188]
INFO - 20:37:47: 17%|█▋ | 34/200 [00:00<00:03, 50.61 it/sec, obj=186]
INFO - 20:37:47: 18%|█▊ | 35/200 [00:00<00:03, 50.76 it/sec, obj=185]
INFO - 20:37:47: 18%|█▊ | 36/200 [00:00<00:03, 50.98 it/sec, obj=184]
INFO - 20:37:47: 18%|█▊ | 37/200 [00:00<00:03, 51.13 it/sec, obj=183]
INFO - 20:37:47: 19%|█▉ | 38/200 [00:00<00:03, 51.30 it/sec, obj=182]
INFO - 20:37:47: 20%|█▉ | 39/200 [00:00<00:03, 51.47 it/sec, obj=181]
INFO - 20:37:47: 20%|██ | 40/200 [00:00<00:03, 51.60 it/sec, obj=179]
INFO - 20:37:47: 20%|██ | 41/200 [00:00<00:03, 51.72 it/sec, obj=177]
INFO - 20:37:47: 21%|██ | 42/200 [00:00<00:03, 51.79 it/sec, obj=175]
INFO - 20:37:47: 22%|██▏ | 43/200 [00:00<00:03, 51.94 it/sec, obj=174]
INFO - 20:37:47: 22%|██▏ | 44/200 [00:00<00:02, 52.07 it/sec, obj=173]
INFO - 20:37:47: 22%|██▎ | 45/200 [00:00<00:02, 52.21 it/sec, obj=172]
INFO - 20:37:47: 23%|██▎ | 46/200 [00:00<00:02, 52.39 it/sec, obj=172]
INFO - 20:37:47: 24%|██▎ | 47/200 [00:00<00:02, 52.50 it/sec, obj=172]
INFO - 20:37:47: 24%|██▍ | 48/200 [00:00<00:02, 52.62 it/sec, obj=172]
INFO - 20:37:47: 24%|██▍ | 49/200 [00:00<00:02, 52.73 it/sec, obj=172]
INFO - 20:37:47: 25%|██▌ | 50/200 [00:00<00:02, 52.85 it/sec, obj=172]
INFO - 20:37:47: 26%|██▌ | 51/200 [00:00<00:02, 52.92 it/sec, obj=172]
INFO - 20:37:47: 26%|██▌ | 52/200 [00:00<00:02, 53.01 it/sec, obj=172]
INFO - 20:37:47: 26%|██▋ | 53/200 [00:00<00:02, 53.12 it/sec, obj=172]
INFO - 20:37:47: 27%|██▋ | 54/200 [00:01<00:02, 53.22 it/sec, obj=172]
INFO - 20:37:47: 28%|██▊ | 55/200 [00:01<00:02, 53.33 it/sec, obj=172]
INFO - 20:37:47: 28%|██▊ | 56/200 [00:01<00:02, 53.44 it/sec, obj=172]
INFO - 20:37:47: 28%|██▊ | 57/200 [00:01<00:02, 53.54 it/sec, obj=172]
INFO - 20:37:47: 29%|██▉ | 58/200 [00:01<00:02, 53.61 it/sec, obj=171]
INFO - 20:37:47: 30%|██▉ | 59/200 [00:01<00:02, 53.69 it/sec, obj=171]
INFO - 20:37:47: 30%|███ | 60/200 [00:01<00:02, 53.84 it/sec, obj=171]
INFO - 20:37:47: 30%|███ | 61/200 [00:01<00:02, 53.93 it/sec, obj=171]
INFO - 20:37:47: 31%|███ | 62/200 [00:01<00:02, 54.01 it/sec, obj=171]
INFO - 20:37:47: 32%|███▏ | 63/200 [00:01<00:02, 54.08 it/sec, obj=171]
INFO - 20:37:47: 32%|███▏ | 64/200 [00:01<00:02, 54.15 it/sec, obj=171]
INFO - 20:37:47: 32%|███▎ | 65/200 [00:01<00:02, 54.20 it/sec, obj=171]
INFO - 20:37:47: 33%|███▎ | 66/200 [00:01<00:02, 54.27 it/sec, obj=171]
INFO - 20:37:47: 34%|███▎ | 67/200 [00:01<00:02, 54.36 it/sec, obj=171]
INFO - 20:37:47: 34%|███▍ | 68/200 [00:01<00:02, 54.42 it/sec, obj=171]
INFO - 20:37:47: 34%|███▍ | 69/200 [00:01<00:02, 54.48 it/sec, obj=171]
INFO - 20:37:47: 35%|███▌ | 70/200 [00:01<00:02, 54.55 it/sec, obj=171]
INFO - 20:37:47: 36%|███▌ | 71/200 [00:01<00:02, 54.62 it/sec, obj=171]
INFO - 20:37:47: 36%|███▌ | 72/200 [00:01<00:02, 54.69 it/sec, obj=171]
INFO - 20:37:47: 36%|███▋ | 73/200 [00:01<00:02, 54.76 it/sec, obj=171]
INFO - 20:37:47: 37%|███▋ | 74/200 [00:01<00:02, 54.83 it/sec, obj=171]
INFO - 20:37:47: 38%|███▊ | 75/200 [00:01<00:02, 54.89 it/sec, obj=171]
INFO - 20:37:47: 38%|███▊ | 76/200 [00:01<00:02, 54.96 it/sec, obj=171]
INFO - 20:37:47: 38%|███▊ | 77/200 [00:01<00:02, 55.03 it/sec, obj=171]
INFO - 20:37:48: 39%|███▉ | 78/200 [00:01<00:02, 55.08 it/sec, obj=171]
INFO - 20:37:48: 40%|███▉ | 79/200 [00:01<00:02, 55.19 it/sec, obj=171]
INFO - 20:37:48: 40%|████ | 80/200 [00:01<00:02, 55.26 it/sec, obj=171]
INFO - 20:37:48: 40%|████ | 81/200 [00:01<00:02, 55.33 it/sec, obj=171]
INFO - 20:37:48: 41%|████ | 82/200 [00:01<00:02, 55.39 it/sec, obj=171]
INFO - 20:37:48: 42%|████▏ | 83/200 [00:01<00:02, 55.43 it/sec, obj=171]
INFO - 20:37:48: 42%|████▏ | 84/200 [00:01<00:02, 55.48 it/sec, obj=171]
INFO - 20:37:48: 42%|████▎ | 85/200 [00:01<00:02, 55.53 it/sec, obj=171]
INFO - 20:37:48: 43%|████▎ | 86/200 [00:01<00:02, 55.58 it/sec, obj=171]
INFO - 20:37:48: 44%|████▎ | 87/200 [00:01<00:02, 55.62 it/sec, obj=171]
INFO - 20:37:48: 44%|████▍ | 88/200 [00:01<00:02, 55.68 it/sec, obj=171]
INFO - 20:37:48: 44%|████▍ | 89/200 [00:01<00:01, 55.73 it/sec, obj=171]
INFO - 20:37:48: 45%|████▌ | 90/200 [00:01<00:01, 55.78 it/sec, obj=171]
INFO - 20:37:48: 46%|████▌ | 91/200 [00:01<00:01, 55.83 it/sec, obj=171]
INFO - 20:37:48: 46%|████▌ | 92/200 [00:01<00:01, 55.88 it/sec, obj=171]
INFO - 20:37:48: 46%|████▋ | 93/200 [00:01<00:01, 55.94 it/sec, obj=171]
INFO - 20:37:48: 47%|████▋ | 94/200 [00:01<00:01, 55.99 it/sec, obj=171]
INFO - 20:37:48: 48%|████▊ | 95/200 [00:01<00:01, 56.04 it/sec, obj=171]
INFO - 20:37:48: 48%|████▊ | 96/200 [00:01<00:01, 56.08 it/sec, obj=171]
INFO - 20:37:48: 48%|████▊ | 97/200 [00:01<00:01, 56.12 it/sec, obj=171]
INFO - 20:37:48: 49%|████▉ | 98/200 [00:01<00:01, 56.16 it/sec, obj=171]
INFO - 20:37:48: 50%|████▉ | 99/200 [00:01<00:01, 56.18 it/sec, obj=171]
INFO - 20:37:48: 50%|█████ | 100/200 [00:01<00:01, 56.22 it/sec, obj=171]
INFO - 20:37:48: 50%|█████ | 101/200 [00:01<00:01, 56.25 it/sec, obj=171]
INFO - 20:37:48: 51%|█████ | 102/200 [00:01<00:01, 56.29 it/sec, obj=171]
INFO - 20:37:48: 52%|█████▏ | 103/200 [00:01<00:01, 56.32 it/sec, obj=171]
INFO - 20:37:48: 52%|█████▏ | 104/200 [00:01<00:01, 56.36 it/sec, obj=171]
INFO - 20:37:48: 52%|█████▎ | 105/200 [00:01<00:01, 56.40 it/sec, obj=171]
INFO - 20:37:48: 53%|█████▎ | 106/200 [00:01<00:01, 56.45 it/sec, obj=171]
INFO - 20:37:48: 54%|█████▎ | 107/200 [00:01<00:01, 56.49 it/sec, obj=171]
INFO - 20:37:48: 54%|█████▍ | 108/200 [00:01<00:01, 56.51 it/sec, obj=171]
INFO - 20:37:48: 55%|█████▍ | 109/200 [00:01<00:01, 56.53 it/sec, obj=171]
INFO - 20:37:48: 55%|█████▌ | 110/200 [00:01<00:01, 56.56 it/sec, obj=171]
INFO - 20:37:48: 56%|█████▌ | 111/200 [00:01<00:01, 56.59 it/sec, obj=171]
INFO - 20:37:48: 56%|█████▌ | 112/200 [00:01<00:01, 56.62 it/sec, obj=171]
INFO - 20:37:48: 56%|█████▋ | 113/200 [00:01<00:01, 56.63 it/sec, obj=171]
INFO - 20:37:48: 57%|█████▋ | 114/200 [00:02<00:01, 56.63 it/sec, obj=171]
INFO - 20:37:48: 57%|█████▊ | 115/200 [00:02<00:01, 56.68 it/sec, obj=173]
INFO - 20:37:48: 58%|█████▊ | 116/200 [00:02<00:01, 56.71 it/sec, obj=173]
INFO - 20:37:48: 58%|█████▊ | 117/200 [00:02<00:01, 56.74 it/sec, obj=172]
INFO - 20:37:48: 59%|█████▉ | 118/200 [00:02<00:01, 56.77 it/sec, obj=172]
INFO - 20:37:48: 60%|█████▉ | 119/200 [00:02<00:01, 56.78 it/sec, obj=171]
INFO - 20:37:48: 60%|██████ | 120/200 [00:02<00:01, 56.81 it/sec, obj=171]
INFO - 20:37:48: 60%|██████ | 121/200 [00:02<00:01, 56.83 it/sec, obj=171]
INFO - 20:37:48: 61%|██████ | 122/200 [00:02<00:01, 56.85 it/sec, obj=171]
INFO - 20:37:48: 62%|██████▏ | 123/200 [00:02<00:01, 56.88 it/sec, obj=171]
INFO - 20:37:48: 62%|██████▏ | 124/200 [00:02<00:01, 56.91 it/sec, obj=170]
INFO - 20:37:48: 62%|██████▎ | 125/200 [00:02<00:01, 56.92 it/sec, obj=170]
INFO - 20:37:48: 63%|██████▎ | 126/200 [00:02<00:01, 56.93 it/sec, obj=170]
INFO - 20:37:48: 64%|██████▎ | 127/200 [00:02<00:01, 56.94 it/sec, obj=170]
INFO - 20:37:48: 64%|██████▍ | 128/200 [00:02<00:01, 56.96 it/sec, obj=170]
INFO - 20:37:48: 64%|██████▍ | 129/200 [00:02<00:01, 56.98 it/sec, obj=170]
INFO - 20:37:48: 65%|██████▌ | 130/200 [00:02<00:01, 57.01 it/sec, obj=170]
INFO - 20:37:48: 66%|██████▌ | 131/200 [00:02<00:01, 57.04 it/sec, obj=170]
INFO - 20:37:48: 66%|██████▌ | 132/200 [00:02<00:01, 57.07 it/sec, obj=170]
INFO - 20:37:48: 66%|██████▋ | 133/200 [00:02<00:01, 57.08 it/sec, obj=170]
INFO - 20:37:48: 67%|██████▋ | 134/200 [00:02<00:01, 57.09 it/sec, obj=170]
INFO - 20:37:48: 68%|██████▊ | 135/200 [00:02<00:01, 57.12 it/sec, obj=170]
INFO - 20:37:48: 68%|██████▊ | 136/200 [00:02<00:01, 57.15 it/sec, obj=170]
INFO - 20:37:48: 68%|██████▊ | 137/200 [00:02<00:01, 57.17 it/sec, obj=170]
INFO - 20:37:49: 69%|██████▉ | 138/200 [00:02<00:01, 57.17 it/sec, obj=170]
INFO - 20:37:49: 70%|██████▉ | 139/200 [00:02<00:01, 57.18 it/sec, obj=170]
INFO - 20:37:49: 70%|███████ | 140/200 [00:02<00:01, 57.19 it/sec, obj=170]
INFO - 20:37:49: 70%|███████ | 141/200 [00:02<00:01, 57.23 it/sec, obj=170]
INFO - 20:37:49: 71%|███████ | 142/200 [00:02<00:01, 57.24 it/sec, obj=170]
INFO - 20:37:49: 72%|███████▏ | 143/200 [00:02<00:00, 57.25 it/sec, obj=170]
INFO - 20:37:49: 72%|███████▏ | 144/200 [00:02<00:00, 57.27 it/sec, obj=170]
INFO - 20:37:49: 72%|███████▎ | 145/200 [00:02<00:00, 57.29 it/sec, obj=170]
INFO - 20:37:49: 73%|███████▎ | 146/200 [00:02<00:00, 57.31 it/sec, obj=170]
INFO - 20:37:49: 74%|███████▎ | 147/200 [00:02<00:00, 57.32 it/sec, obj=170]
INFO - 20:37:49: 74%|███████▍ | 148/200 [00:02<00:00, 57.35 it/sec, obj=170]
INFO - 20:37:49: 74%|███████▍ | 149/200 [00:02<00:00, 57.39 it/sec, obj=170]
INFO - 20:37:49: 75%|███████▌ | 150/200 [00:02<00:00, 57.41 it/sec, obj=170]
INFO - 20:37:49: 76%|███████▌ | 151/200 [00:02<00:00, 57.43 it/sec, obj=170]
INFO - 20:37:49: 76%|███████▌ | 152/200 [00:02<00:00, 57.45 it/sec, obj=170]
INFO - 20:37:49: 76%|███████▋ | 153/200 [00:02<00:00, 57.47 it/sec, obj=170]
INFO - 20:37:49: 77%|███████▋ | 154/200 [00:02<00:00, 57.49 it/sec, obj=170]
INFO - 20:37:49: 78%|███████▊ | 155/200 [00:02<00:00, 57.51 it/sec, obj=170]
INFO - 20:37:49: 78%|███████▊ | 156/200 [00:02<00:00, 57.55 it/sec, obj=170]
INFO - 20:37:49: 78%|███████▊ | 157/200 [00:02<00:00, 57.59 it/sec, obj=170]
INFO - 20:37:49: 79%|███████▉ | 158/200 [00:02<00:00, 57.62 it/sec, obj=170]
INFO - 20:37:49: 80%|███████▉ | 159/200 [00:02<00:00, 57.66 it/sec, obj=170]
INFO - 20:37:49: 80%|████████ | 160/200 [00:02<00:00, 57.69 it/sec, obj=170]
INFO - 20:37:49: 80%|████████ | 161/200 [00:02<00:00, 57.72 it/sec, obj=170]
INFO - 20:37:49: 81%|████████ | 162/200 [00:02<00:00, 57.73 it/sec, obj=170]
INFO - 20:37:49: 82%|████████▏ | 163/200 [00:02<00:00, 57.74 it/sec, obj=170]
INFO - 20:37:49: 82%|████████▏ | 164/200 [00:02<00:00, 57.75 it/sec, obj=170]
INFO - 20:37:49: 82%|████████▎ | 165/200 [00:02<00:00, 57.76 it/sec, obj=170]
INFO - 20:37:49: 83%|████████▎ | 166/200 [00:02<00:00, 57.79 it/sec, obj=170]
INFO - 20:37:49: 84%|████████▎ | 167/200 [00:02<00:00, 57.81 it/sec, obj=170]
INFO - 20:37:49: 84%|████████▍ | 168/200 [00:02<00:00, 57.82 it/sec, obj=170]
INFO - 20:37:49: 84%|████████▍ | 169/200 [00:02<00:00, 57.85 it/sec, obj=170]
INFO - 20:37:49: 85%|████████▌ | 170/200 [00:02<00:00, 57.88 it/sec, obj=170]
INFO - 20:37:49: 86%|████████▌ | 171/200 [00:02<00:00, 57.89 it/sec, obj=170]
INFO - 20:37:49: 86%|████████▌ | 172/200 [00:02<00:00, 57.91 it/sec, obj=170]
INFO - 20:37:49: 86%|████████▋ | 173/200 [00:02<00:00, 57.93 it/sec, obj=170]
INFO - 20:37:49: 87%|████████▋ | 174/200 [00:03<00:00, 57.93 it/sec, obj=170]
INFO - 20:37:49: 88%|████████▊ | 175/200 [00:03<00:00, 57.94 it/sec, obj=170]
INFO - 20:37:49: 88%|████████▊ | 176/200 [00:03<00:00, 57.95 it/sec, obj=170]
INFO - 20:37:49: 88%|████████▊ | 177/200 [00:03<00:00, 57.96 it/sec, obj=170]
INFO - 20:37:49: 89%|████████▉ | 178/200 [00:03<00:00, 57.98 it/sec, obj=170]
INFO - 20:37:49: 90%|████████▉ | 179/200 [00:03<00:00, 58.02 it/sec, obj=170]
INFO - 20:37:49: 90%|█████████ | 180/200 [00:03<00:00, 58.03 it/sec, obj=170]
INFO - 20:37:49: 90%|█████████ | 181/200 [00:03<00:00, 58.05 it/sec, obj=170]
INFO - 20:37:49: 91%|█████████ | 182/200 [00:03<00:00, 58.05 it/sec, obj=170]
INFO - 20:37:49: 92%|█████████▏| 183/200 [00:03<00:00, 58.06 it/sec, obj=170]
INFO - 20:37:49: 92%|█████████▏| 184/200 [00:03<00:00, 58.08 it/sec, obj=170]
INFO - 20:37:49: 92%|█████████▎| 185/200 [00:03<00:00, 58.11 it/sec, obj=170]
INFO - 20:37:49: 93%|█████████▎| 186/200 [00:03<00:00, 58.13 it/sec, obj=170]
INFO - 20:37:49: 94%|█████████▎| 187/200 [00:03<00:00, 58.14 it/sec, obj=170]
INFO - 20:37:49: 94%|█████████▍| 188/200 [00:03<00:00, 58.15 it/sec, obj=170]
INFO - 20:37:49: 94%|█████████▍| 189/200 [00:03<00:00, 58.17 it/sec, obj=170]
INFO - 20:37:49: 95%|█████████▌| 190/200 [00:03<00:00, 58.19 it/sec, obj=170]
INFO - 20:37:49: 96%|█████████▌| 191/200 [00:03<00:00, 58.20 it/sec, obj=170]
INFO - 20:37:49: 96%|█████████▌| 192/200 [00:03<00:00, 58.21 it/sec, obj=170]
INFO - 20:37:49: 96%|█████████▋| 193/200 [00:03<00:00, 58.22 it/sec, obj=170]
INFO - 20:37:49: 97%|█████████▋| 194/200 [00:03<00:00, 58.22 it/sec, obj=170]
INFO - 20:37:49: 98%|█████████▊| 195/200 [00:03<00:00, 58.25 it/sec, obj=170]
INFO - 20:37:49: 98%|█████████▊| 196/200 [00:03<00:00, 58.26 it/sec, obj=170]
INFO - 20:37:49: 98%|█████████▊| 197/200 [00:03<00:00, 58.30 it/sec, obj=170]
INFO - 20:37:49: 99%|█████████▉| 198/200 [00:03<00:00, 58.33 it/sec, obj=170]
INFO - 20:37:50: 100%|█████████▉| 199/200 [00:03<00:00, 58.34 it/sec, obj=170]
INFO - 20:37:50: 100%|██████████| 200/200 [00:03<00:00, 58.58 it/sec, obj=170]
INFO - 20:37:50: Optimization result:
INFO - 20:37:50: Optimizer info:
INFO - 20:37:50: Status: None
INFO - 20:37:50: Message: Maximum number of iterations reached. GEMSEO stopped the driver.
INFO - 20:37:50: Number of calls to the objective function by the optimizer: 0
INFO - 20:37:50: Solution:
INFO - 20:37:50: The solution is feasible.
INFO - 20:37:50: Objective: 169.89100281948836
INFO - 20:37:50: Standardized constraints:
INFO - 20:37:50: [volume fraction-0.3] = 6.224782465036327e-07
INFO - 20:37:50: *** End MDOScenario execution ***
Results#
Post-process the optimization history:

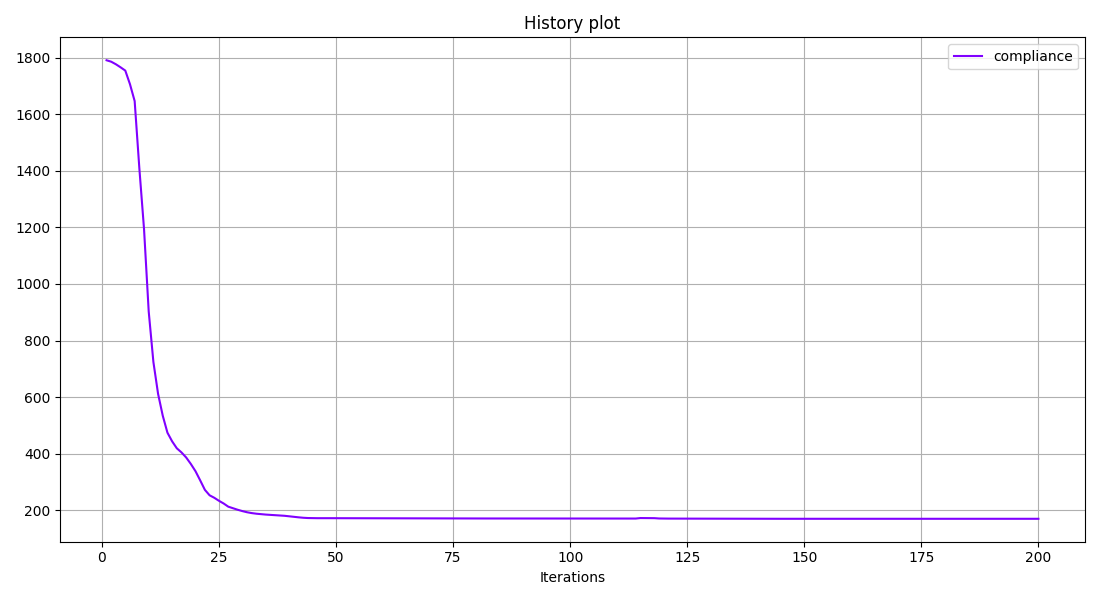

scenario.post_process(
post_name="BasicHistory", variable_names=["compliance"], show=True, save=False
)
<gemseo.post.basic_history.BasicHistory object at 0x78592cd94350>
Plot the solution
scenario.post_process(post_name="TopologyView", n_x=n_x, n_y=n_y, show=True, save=False)
<gemseo.post.topology_view.TopologyView object at 0x78590e118f80>
Total running time of the script: (0 minutes 4.411 seconds)
