Solve a 2D L-shape topology optimization problem#
from __future__ import annotations
from gemseo import create_scenario
from gemseo.problems.topology_optimization.topopt_initialize import (
initialize_design_space_and_discipline_to,
)
Setup the topology optimization problem#
Define the target volume fraction:
volume_fraction = 0.3
Define the problem type:
problem_name = "L-Shape"
Define the number of elements in the x- and y- directions:
n_x = 25
n_y = 25
Define the full material Young's modulus and Poisson's ratio:
e0 = 1
nu = 0.3
Define the penalty of the SIMP approach:
penalty = 3
Define the minimum member size in the solution:
min_member_size = 1.5
Instantiate the DesignSpace and the disciplines:
design_space, disciplines = initialize_design_space_and_discipline_to(
problem=problem_name,
n_x=n_x,
n_y=n_y,
e0=e0,
nu=nu,
penalty=penalty,
min_member_size=min_member_size,
vf0=volume_fraction,
)
Solve the topology optimization problem#
Generate an MDOScenario:
scenario = create_scenario(
disciplines,
"compliance",
design_space,
formulation_name="DisciplinaryOpt",
)
Add the volume fraction constraint to the scenario:
scenario.add_constraint(
"volume fraction", constraint_type="ineq", value=volume_fraction
)
Generate the XDSM
scenario.xdsmize(save_html=False)
Execute the scenario
scenario.execute(algo_name="NLOPT_MMA", max_iter=200)
INFO - 16:24:28: *** Start MDOScenario execution ***
INFO - 16:24:28: MDOScenario
INFO - 16:24:28: Disciplines: DensityFilter FiniteElementAnalysis MaterialModelInterpolation VolumeFraction
INFO - 16:24:28: MDO formulation: DisciplinaryOpt
INFO - 16:24:28: Optimization problem:
INFO - 16:24:28: minimize compliance(x)
INFO - 16:24:28: with respect to x
INFO - 16:24:28: under the inequality constraints
INFO - 16:24:28: volume fraction(x) <= 0.3
INFO - 16:24:28: Solving optimization problem with algorithm NLOPT_MMA:
INFO - 16:24:28: 1%| | 2/200 [00:00<00:02, 82.23 it/sec, feas=True, obj=2.23e+3]
INFO - 16:24:28: 2%|▏ | 3/200 [00:00<00:02, 90.21 it/sec, feas=True, obj=1.96e+3]
INFO - 16:24:28: 2%|▏ | 4/200 [00:00<00:02, 95.05 it/sec, feas=True, obj=1.75e+3]
INFO - 16:24:28: 2%|▎ | 5/200 [00:00<00:02, 97.12 it/sec, feas=True, obj=1.57e+3]
INFO - 16:24:28: 3%|▎ | 6/200 [00:00<00:01, 98.07 it/sec, feas=True, obj=1.2e+3]
INFO - 16:24:28: 4%|▎ | 7/200 [00:00<00:01, 98.34 it/sec, feas=True, obj=963]
INFO - 16:24:28: 4%|▍ | 8/200 [00:00<00:01, 98.82 it/sec, feas=True, obj=624]
INFO - 16:24:28: 4%|▍ | 9/200 [00:00<00:01, 99.18 it/sec, feas=True, obj=497]
INFO - 16:24:28: 5%|▌ | 10/200 [00:00<00:01, 99.71 it/sec, feas=True, obj=395]
INFO - 16:24:28: 6%|▌ | 11/200 [00:00<00:01, 99.59 it/sec, feas=True, obj=306]
INFO - 16:24:28: 6%|▌ | 12/200 [00:00<00:01, 100.22 it/sec, feas=True, obj=251]
INFO - 16:24:28: 6%|▋ | 13/200 [00:00<00:01, 100.78 it/sec, feas=True, obj=225]
INFO - 16:24:28: 7%|▋ | 14/200 [00:00<00:01, 101.31 it/sec, feas=True, obj=209]
INFO - 16:24:28: 8%|▊ | 15/200 [00:00<00:01, 101.95 it/sec, feas=True, obj=201]
INFO - 16:24:28: 8%|▊ | 16/200 [00:00<00:01, 102.49 it/sec, feas=True, obj=195]
INFO - 16:24:28: 8%|▊ | 17/200 [00:00<00:01, 102.94 it/sec, feas=True, obj=190]
INFO - 16:24:28: 9%|▉ | 18/200 [00:00<00:01, 103.63 it/sec, feas=True, obj=186]
INFO - 16:24:28: 10%|▉ | 19/200 [00:00<00:01, 104.24 it/sec, feas=True, obj=182]
INFO - 16:24:28: 10%|█ | 20/200 [00:00<00:01, 104.84 it/sec, feas=True, obj=178]
INFO - 16:24:28: 10%|█ | 21/200 [00:00<00:01, 105.18 it/sec, feas=True, obj=174]
INFO - 16:24:28: 11%|█ | 22/200 [00:00<00:01, 105.62 it/sec, feas=True, obj=169]
INFO - 16:24:28: 12%|█▏ | 23/200 [00:00<00:01, 106.03 it/sec, feas=True, obj=164]
INFO - 16:24:28: 12%|█▏ | 24/200 [00:00<00:01, 106.55 it/sec, feas=True, obj=161]
INFO - 16:24:28: 12%|█▎ | 25/200 [00:00<00:01, 106.92 it/sec, feas=True, obj=159]
INFO - 16:24:28: 13%|█▎ | 26/200 [00:00<00:01, 107.38 it/sec, feas=True, obj=157]
INFO - 16:24:28: 14%|█▎ | 27/200 [00:00<00:01, 107.88 it/sec, feas=True, obj=156]
INFO - 16:24:28: 14%|█▍ | 28/200 [00:00<00:01, 108.25 it/sec, feas=True, obj=155]
INFO - 16:24:28: 14%|█▍ | 29/200 [00:00<00:01, 108.43 it/sec, feas=True, obj=154]
INFO - 16:24:28: 15%|█▌ | 30/200 [00:00<00:01, 108.80 it/sec, feas=True, obj=154]
INFO - 16:24:28: 16%|█▌ | 31/200 [00:00<00:01, 109.09 it/sec, feas=True, obj=153]
INFO - 16:24:28: 16%|█▌ | 32/200 [00:00<00:01, 109.33 it/sec, feas=True, obj=153]
INFO - 16:24:28: 16%|█▋ | 33/200 [00:00<00:01, 109.77 it/sec, feas=True, obj=152]
INFO - 16:24:28: 17%|█▋ | 34/200 [00:00<00:01, 110.19 it/sec, feas=True, obj=152]
INFO - 16:24:28: 18%|█▊ | 35/200 [00:00<00:01, 110.44 it/sec, feas=True, obj=152]
INFO - 16:24:28: 18%|█▊ | 36/200 [00:00<00:01, 110.70 it/sec, feas=True, obj=152]
INFO - 16:24:28: 18%|█▊ | 37/200 [00:00<00:01, 111.01 it/sec, feas=True, obj=152]
INFO - 16:24:28: 19%|█▉ | 38/200 [00:00<00:01, 111.32 it/sec, feas=True, obj=152]
INFO - 16:24:28: 20%|█▉ | 39/200 [00:00<00:01, 111.66 it/sec, feas=True, obj=152]
INFO - 16:24:28: 20%|██ | 40/200 [00:00<00:01, 112.03 it/sec, feas=True, obj=152]
INFO - 16:24:28: 20%|██ | 41/200 [00:00<00:01, 112.36 it/sec, feas=True, obj=152]
INFO - 16:24:28: 21%|██ | 42/200 [00:00<00:01, 112.68 it/sec, feas=True, obj=152]
INFO - 16:24:28: 22%|██▏ | 43/200 [00:00<00:01, 112.95 it/sec, feas=True, obj=152]
INFO - 16:24:28: 22%|██▏ | 44/200 [00:00<00:01, 113.21 it/sec, feas=True, obj=152]
INFO - 16:24:28: 22%|██▎ | 45/200 [00:00<00:01, 113.53 it/sec, feas=True, obj=152]
INFO - 16:24:28: 23%|██▎ | 46/200 [00:00<00:01, 113.76 it/sec, feas=True, obj=152]
INFO - 16:24:28: 24%|██▎ | 47/200 [00:00<00:01, 114.15 it/sec, feas=True, obj=152]
INFO - 16:24:28: 24%|██▍ | 48/200 [00:00<00:01, 114.57 it/sec, feas=True, obj=152]
INFO - 16:24:28: 24%|██▍ | 49/200 [00:00<00:01, 114.96 it/sec, feas=True, obj=152]
INFO - 16:24:28: 25%|██▌ | 50/200 [00:00<00:01, 115.25 it/sec, feas=True, obj=152]
INFO - 16:24:28: 26%|██▌ | 51/200 [00:00<00:01, 115.49 it/sec, feas=True, obj=152]
INFO - 16:24:28: 26%|██▌ | 52/200 [00:00<00:01, 115.73 it/sec, feas=True, obj=152]
INFO - 16:24:28: 26%|██▋ | 53/200 [00:00<00:01, 115.86 it/sec, feas=True, obj=152]
INFO - 16:24:28: 27%|██▋ | 54/200 [00:00<00:01, 116.03 it/sec, feas=True, obj=152]
INFO - 16:24:28: 28%|██▊ | 55/200 [00:00<00:01, 116.18 it/sec, feas=True, obj=152]
INFO - 16:24:28: 28%|██▊ | 56/200 [00:00<00:01, 115.89 it/sec, feas=True, obj=152]
INFO - 16:24:28: 28%|██▊ | 57/200 [00:00<00:01, 116.03 it/sec, feas=True, obj=152]
INFO - 16:24:28: 29%|██▉ | 58/200 [00:00<00:01, 116.14 it/sec, feas=True, obj=152]
INFO - 16:24:28: 30%|██▉ | 59/200 [00:00<00:01, 116.20 it/sec, feas=True, obj=152]
INFO - 16:24:28: 30%|███ | 60/200 [00:00<00:01, 116.38 it/sec, feas=True, obj=152]
INFO - 16:24:28: 30%|███ | 61/200 [00:00<00:01, 116.54 it/sec, feas=True, obj=152]
INFO - 16:24:28: 31%|███ | 62/200 [00:00<00:01, 116.72 it/sec, feas=True, obj=152]
INFO - 16:24:28: 32%|███▏ | 63/200 [00:00<00:01, 116.81 it/sec, feas=True, obj=152]
INFO - 16:24:28: 32%|███▏ | 64/200 [00:00<00:01, 116.99 it/sec, feas=True, obj=152]
INFO - 16:24:28: 32%|███▎ | 65/200 [00:00<00:01, 117.11 it/sec, feas=True, obj=152]
INFO - 16:24:28: 33%|███▎ | 66/200 [00:00<00:01, 117.25 it/sec, feas=True, obj=152]
INFO - 16:24:28: 34%|███▎ | 67/200 [00:00<00:01, 117.38 it/sec, feas=True, obj=152]
INFO - 16:24:28: 34%|███▍ | 68/200 [00:00<00:01, 117.51 it/sec, feas=True, obj=152]
INFO - 16:24:28: 34%|███▍ | 69/200 [00:00<00:01, 117.65 it/sec, feas=True, obj=152]
INFO - 16:24:28: 35%|███▌ | 70/200 [00:00<00:01, 117.80 it/sec, feas=True, obj=152]
INFO - 16:24:28: 36%|███▌ | 71/200 [00:00<00:01, 118.03 it/sec, feas=True, obj=152]
INFO - 16:24:28: 36%|███▌ | 72/200 [00:00<00:01, 118.16 it/sec, feas=True, obj=152]
INFO - 16:24:28: 36%|███▋ | 73/200 [00:00<00:01, 118.27 it/sec, feas=True, obj=152]
INFO - 16:24:28: 37%|███▋ | 74/200 [00:00<00:01, 118.36 it/sec, feas=True, obj=152]
INFO - 16:24:28: 38%|███▊ | 75/200 [00:00<00:01, 118.56 it/sec, feas=True, obj=152]
INFO - 16:24:28: 38%|███▊ | 76/200 [00:00<00:01, 118.67 it/sec, feas=True, obj=152]
INFO - 16:24:28: 38%|███▊ | 77/200 [00:00<00:01, 118.55 it/sec, feas=True, obj=152]
INFO - 16:24:28: 39%|███▉ | 78/200 [00:00<00:01, 118.65 it/sec, feas=True, obj=152]
INFO - 16:24:28: 40%|███▉ | 79/200 [00:00<00:01, 118.85 it/sec, feas=True, obj=152]
INFO - 16:24:28: 40%|████ | 80/200 [00:00<00:01, 118.96 it/sec, feas=True, obj=152]
INFO - 16:24:28: 40%|████ | 81/200 [00:00<00:00, 119.14 it/sec, feas=True, obj=152]
INFO - 16:24:28: 41%|████ | 82/200 [00:00<00:00, 119.28 it/sec, feas=True, obj=152]
INFO - 16:24:28: 42%|████▏ | 83/200 [00:00<00:00, 119.33 it/sec, feas=True, obj=152]
INFO - 16:24:28: 42%|████▏ | 84/200 [00:00<00:00, 119.40 it/sec, feas=True, obj=152]
INFO - 16:24:28: 42%|████▎ | 85/200 [00:00<00:00, 119.56 it/sec, feas=True, obj=152]
INFO - 16:24:28: 43%|████▎ | 86/200 [00:00<00:00, 119.65 it/sec, feas=True, obj=152]
INFO - 16:24:28: 44%|████▎ | 87/200 [00:00<00:00, 119.81 it/sec, feas=True, obj=152]
INFO - 16:24:28: 44%|████▍ | 88/200 [00:00<00:00, 119.97 it/sec, feas=True, obj=152]
INFO - 16:24:28: 44%|████▍ | 89/200 [00:00<00:00, 120.11 it/sec, feas=True, obj=152]
INFO - 16:24:28: 45%|████▌ | 90/200 [00:00<00:00, 120.28 it/sec, feas=True, obj=152]
INFO - 16:24:28: 46%|████▌ | 91/200 [00:00<00:00, 120.39 it/sec, feas=True, obj=152]
INFO - 16:24:28: 46%|████▌ | 92/200 [00:00<00:00, 120.55 it/sec, feas=True, obj=152]
INFO - 16:24:28: 46%|████▋ | 93/200 [00:00<00:00, 120.67 it/sec, feas=True, obj=152]
INFO - 16:24:28: 47%|████▋ | 94/200 [00:00<00:00, 120.83 it/sec, feas=True, obj=152]
INFO - 16:24:28: 48%|████▊ | 95/200 [00:00<00:00, 120.97 it/sec, feas=True, obj=152]
INFO - 16:24:28: 48%|████▊ | 96/200 [00:00<00:00, 121.05 it/sec, feas=True, obj=152]
INFO - 16:24:28: 48%|████▊ | 97/200 [00:00<00:00, 121.20 it/sec, feas=True, obj=152]
INFO - 16:24:28: 49%|████▉ | 98/200 [00:00<00:00, 121.33 it/sec, feas=True, obj=152]
INFO - 16:24:28: 50%|████▉ | 99/200 [00:00<00:00, 121.47 it/sec, feas=True, obj=152]
INFO - 16:24:28: 50%|█████ | 100/200 [00:00<00:00, 121.59 it/sec, feas=True, obj=152]
INFO - 16:24:28: 50%|█████ | 101/200 [00:00<00:00, 121.66 it/sec, feas=True, obj=152]
INFO - 16:24:28: 51%|█████ | 102/200 [00:00<00:00, 121.77 it/sec, feas=True, obj=152]
INFO - 16:24:28: 52%|█████▏ | 103/200 [00:00<00:00, 121.90 it/sec, feas=True, obj=152]
INFO - 16:24:29: 52%|█████▏ | 104/200 [00:00<00:00, 122.02 it/sec, feas=True, obj=152]
INFO - 16:24:29: 52%|█████▎ | 105/200 [00:00<00:00, 122.09 it/sec, feas=True, obj=152]
INFO - 16:24:29: 53%|█████▎ | 106/200 [00:00<00:00, 122.21 it/sec, feas=True, obj=152]
INFO - 16:24:29: 54%|█████▎ | 107/200 [00:00<00:00, 122.34 it/sec, feas=True, obj=152]
INFO - 16:24:29: 54%|█████▍ | 108/200 [00:00<00:00, 122.40 it/sec, feas=True, obj=152]
INFO - 16:24:29: 55%|█████▍ | 109/200 [00:00<00:00, 122.51 it/sec, feas=True, obj=152]
INFO - 16:24:29: 55%|█████▌ | 110/200 [00:00<00:00, 122.64 it/sec, feas=True, obj=152]
INFO - 16:24:29: 56%|█████▌ | 111/200 [00:00<00:00, 122.74 it/sec, feas=True, obj=152]
INFO - 16:24:29: 56%|█████▌ | 112/200 [00:00<00:00, 122.86 it/sec, feas=True, obj=152]
INFO - 16:24:29: 56%|█████▋ | 113/200 [00:00<00:00, 122.89 it/sec, feas=True, obj=152]
INFO - 16:24:29: 57%|█████▋ | 114/200 [00:00<00:00, 123.00 it/sec, feas=True, obj=152]
INFO - 16:24:29: 57%|█████▊ | 115/200 [00:00<00:00, 123.11 it/sec, feas=True, obj=152]
INFO - 16:24:29: 58%|█████▊ | 116/200 [00:00<00:00, 123.21 it/sec, feas=True, obj=152]
INFO - 16:24:29: 58%|█████▊ | 117/200 [00:00<00:00, 123.31 it/sec, feas=True, obj=152]
INFO - 16:24:29: 59%|█████▉ | 118/200 [00:00<00:00, 123.41 it/sec, feas=True, obj=152]
INFO - 16:24:29: 60%|█████▉ | 119/200 [00:00<00:00, 123.52 it/sec, feas=True, obj=152]
INFO - 16:24:29: 60%|██████ | 120/200 [00:00<00:00, 123.62 it/sec, feas=True, obj=152]
INFO - 16:24:29: 60%|██████ | 121/200 [00:00<00:00, 123.72 it/sec, feas=True, obj=152]
INFO - 16:24:29: 61%|██████ | 122/200 [00:00<00:00, 123.82 it/sec, feas=True, obj=152]
INFO - 16:24:29: 62%|██████▏ | 123/200 [00:00<00:00, 123.91 it/sec, feas=True, obj=152]
INFO - 16:24:29: 62%|██████▏ | 124/200 [00:00<00:00, 124.01 it/sec, feas=True, obj=152]
INFO - 16:24:29: 62%|██████▎ | 125/200 [00:01<00:00, 124.05 it/sec, feas=True, obj=152]
INFO - 16:24:29: 63%|██████▎ | 126/200 [00:01<00:00, 124.15 it/sec, feas=True, obj=152]
INFO - 16:24:29: 64%|██████▎ | 127/200 [00:01<00:00, 124.25 it/sec, feas=True, obj=152]
INFO - 16:24:29: 64%|██████▍ | 128/200 [00:01<00:00, 124.34 it/sec, feas=True, obj=152]
INFO - 16:24:29: 64%|██████▍ | 129/200 [00:01<00:00, 124.41 it/sec, feas=True, obj=152]
INFO - 16:24:29: 65%|██████▌ | 130/200 [00:01<00:00, 124.46 it/sec, feas=True, obj=152]
INFO - 16:24:29: 66%|██████▌ | 131/200 [00:01<00:00, 124.53 it/sec, feas=True, obj=152]
INFO - 16:24:29: 66%|██████▌ | 132/200 [00:01<00:00, 124.60 it/sec, feas=True, obj=152]
INFO - 16:24:29: 66%|██████▋ | 133/200 [00:01<00:00, 124.67 it/sec, feas=True, obj=152]
INFO - 16:24:29: 67%|██████▋ | 134/200 [00:01<00:00, 124.73 it/sec, feas=True, obj=152]
INFO - 16:24:29: 68%|██████▊ | 135/200 [00:01<00:00, 124.81 it/sec, feas=True, obj=152]
INFO - 16:24:29: 68%|██████▊ | 136/200 [00:01<00:00, 124.86 it/sec, feas=True, obj=152]
INFO - 16:24:29: 68%|██████▊ | 137/200 [00:01<00:00, 124.93 it/sec, feas=True, obj=152]
INFO - 16:24:29: 69%|██████▉ | 138/200 [00:01<00:00, 125.00 it/sec, feas=True, obj=152]
INFO - 16:24:29: 70%|██████▉ | 139/200 [00:01<00:00, 125.07 it/sec, feas=True, obj=152]
INFO - 16:24:29: 70%|███████ | 140/200 [00:01<00:00, 125.14 it/sec, feas=True, obj=152]
INFO - 16:24:29: 70%|███████ | 141/200 [00:01<00:00, 125.21 it/sec, feas=True, obj=152]
INFO - 16:24:29: 71%|███████ | 142/200 [00:01<00:00, 125.28 it/sec, feas=True, obj=152]
INFO - 16:24:29: 72%|███████▏ | 143/200 [00:01<00:00, 125.36 it/sec, feas=True, obj=152]
INFO - 16:24:29: 72%|███████▏ | 144/200 [00:01<00:00, 125.44 it/sec, feas=True, obj=152]
INFO - 16:24:29: 72%|███████▎ | 145/200 [00:01<00:00, 125.50 it/sec, feas=True, obj=152]
INFO - 16:24:29: 73%|███████▎ | 146/200 [00:01<00:00, 125.57 it/sec, feas=True, obj=152]
INFO - 16:24:29: 74%|███████▎ | 147/200 [00:01<00:00, 125.65 it/sec, feas=True, obj=152]
INFO - 16:24:29: Optimization result:
INFO - 16:24:29: Optimizer info:
INFO - 16:24:29: Status: None
INFO - 16:24:29: Message: Successive iterates of the objective function are closer than ftol_rel or ftol_abs. GEMSEO stopped the driver.
INFO - 16:24:29: Solution:
INFO - 16:24:29: The solution is feasible.
INFO - 16:24:29: Objective: 151.62879223124227
INFO - 16:24:29: Standardized constraints:
INFO - 16:24:29: [volume fraction-0.3] = 1.0261640776554337e-06
INFO - 16:24:29: *** End MDOScenario execution ***
Results#

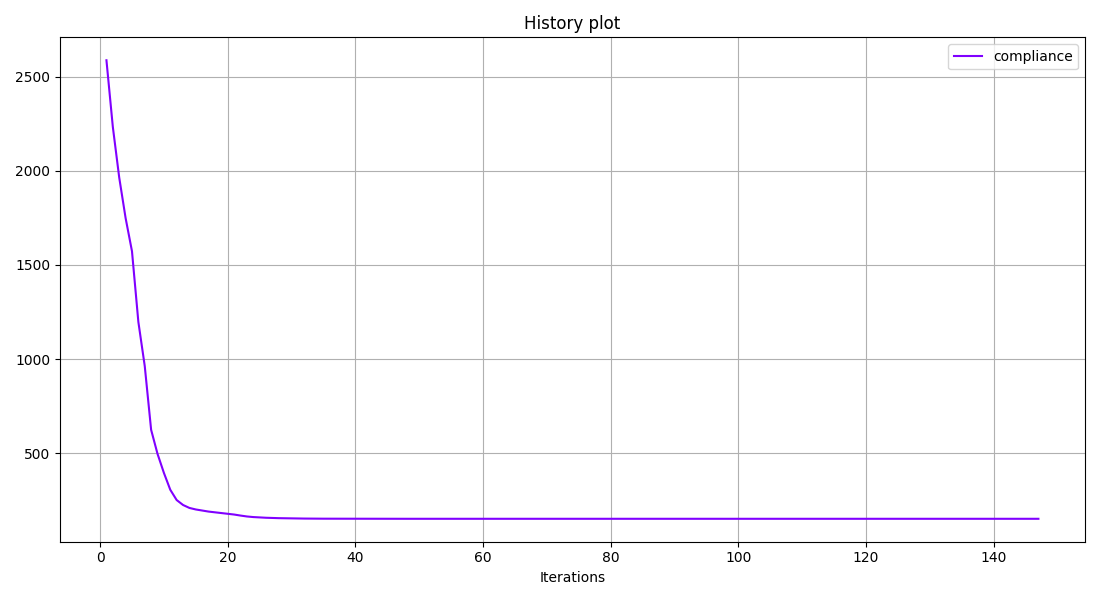

Post-process the optimization history:
scenario.post_process(
post_name="BasicHistory", variable_names=["compliance"], show=True, save=False
)
<gemseo.post.basic_history.BasicHistory object at 0x72a4d8a60ec0>
Plot the solution
scenario.post_process(post_name="TopologyView", n_x=n_x, n_y=n_y, show=True, save=False)
<gemseo.post.topology_view.TopologyView object at 0x72a4e03d1d60>
Total running time of the script: (0 minutes 1.552 seconds)
