Solve a 2D MBB topology optimization problem#
from __future__ import annotations
from gemseo import create_scenario
from gemseo.problems.topology_optimization.topopt_initialize import (
initialize_design_space_and_discipline_to,
)
Setup the topology optimization problem#
Define the target volume fraction:
volume_fraction = 0.3
Define the problem type:
problem_name = "MBB"
Define the number of elements in x- and y- directions:
n_x = 50
n_y = 25
Define the full material Young's modulus and the Poisson's ratio:
e0 = 1
nu = 0.3
Define the penalty of the SIMP approach:
penalty = 3
Define the minimum member size in the solution:
min_member_size = 1.5
Instantiate the DesignSpace and the disciplines:
design_space, disciplines = initialize_design_space_and_discipline_to(
problem=problem_name,
n_x=n_x,
n_y=n_y,
e0=e0,
nu=nu,
penalty=penalty,
min_member_size=min_member_size,
vf0=volume_fraction,
)
Solve the topology optimization problem#
Generate an MDOScenario
scenario = create_scenario(
disciplines,
"compliance",
design_space,
formulation_name="DisciplinaryOpt",
)
Add the volume fraction constraint to the scenario:
scenario.add_constraint(
"volume fraction", constraint_type="ineq", value=volume_fraction
)
Generate the XDSM
scenario.xdsmize(save_html=False)
Execute the scenario

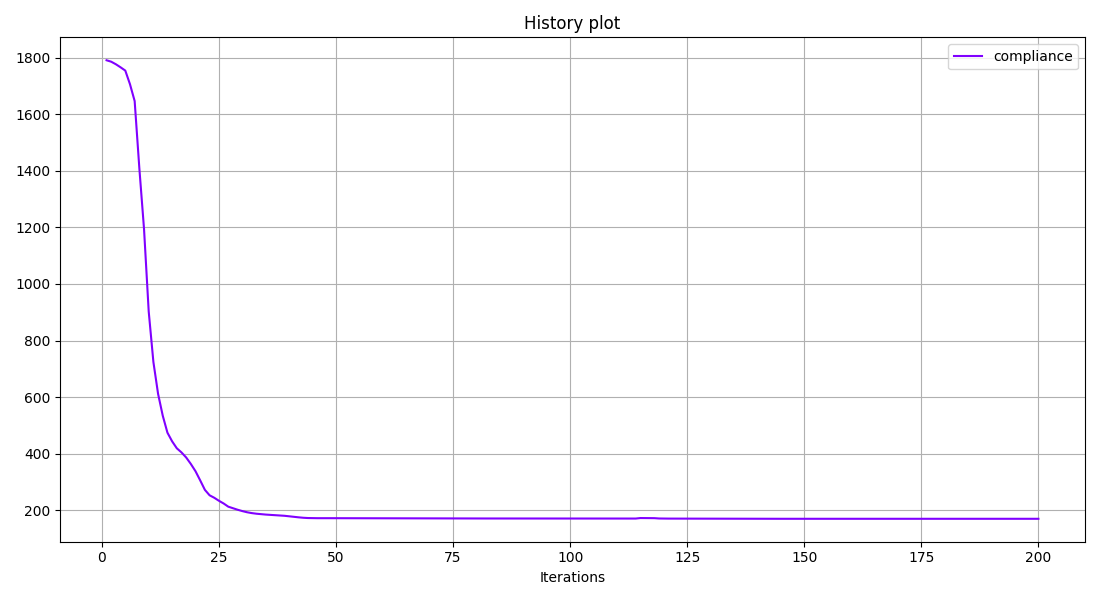

scenario.execute(algo_name="NLOPT_MMA", max_iter=200)
INFO - 16:24:29: *** Start MDOScenario execution ***
INFO - 16:24:29: MDOScenario
INFO - 16:24:29: Disciplines: DensityFilter FiniteElementAnalysis MaterialModelInterpolation VolumeFraction
INFO - 16:24:29: MDO formulation: DisciplinaryOpt
INFO - 16:24:30: Optimization problem:
INFO - 16:24:30: minimize compliance(x)
INFO - 16:24:30: with respect to x
INFO - 16:24:30: under the inequality constraints
INFO - 16:24:30: volume fraction(x) <= 0.3
INFO - 16:24:30: Solving optimization problem with algorithm NLOPT_MMA:
INFO - 16:24:30: 1%| | 2/200 [00:00<00:05, 39.56 it/sec, feas=True, obj=1.79e+3]
INFO - 16:24:30: 2%|▏ | 3/200 [00:00<00:04, 42.52 it/sec, feas=True, obj=1.78e+3]
INFO - 16:24:30: 2%|▏ | 4/200 [00:00<00:04, 44.68 it/sec, feas=True, obj=1.77e+3]
INFO - 16:24:30: 2%|▎ | 5/200 [00:00<00:04, 45.73 it/sec, feas=True, obj=1.75e+3]
INFO - 16:24:30: 3%|▎ | 6/200 [00:00<00:04, 46.22 it/sec, feas=True, obj=1.71e+3]
INFO - 16:24:30: 4%|▎ | 7/200 [00:00<00:04, 46.99 it/sec, feas=True, obj=1.65e+3]
INFO - 16:24:30: 4%|▍ | 8/200 [00:00<00:04, 47.22 it/sec, feas=True, obj=1.41e+3]
INFO - 16:24:30: 4%|▍ | 9/200 [00:00<00:03, 47.84 it/sec, feas=True, obj=1.19e+3]
INFO - 16:24:30: 5%|▌ | 10/200 [00:00<00:03, 48.14 it/sec, feas=True, obj=903]
INFO - 16:24:30: 6%|▌ | 11/200 [00:00<00:03, 48.47 it/sec, feas=True, obj=724]
INFO - 16:24:30: 6%|▌ | 12/200 [00:00<00:03, 48.86 it/sec, feas=True, obj=612]
INFO - 16:24:30: 6%|▋ | 13/200 [00:00<00:03, 49.12 it/sec, feas=True, obj=534]
INFO - 16:24:30: 7%|▋ | 14/200 [00:00<00:03, 49.31 it/sec, feas=True, obj=474]
INFO - 16:24:30: 8%|▊ | 15/200 [00:00<00:03, 49.57 it/sec, feas=True, obj=444]
INFO - 16:24:30: 8%|▊ | 16/200 [00:00<00:03, 49.86 it/sec, feas=True, obj=419]
INFO - 16:24:30: 8%|▊ | 17/200 [00:00<00:03, 50.18 it/sec, feas=True, obj=405]
INFO - 16:24:30: 9%|▉ | 18/200 [00:00<00:03, 50.50 it/sec, feas=True, obj=387]
INFO - 16:24:30: 10%|▉ | 19/200 [00:00<00:03, 50.60 it/sec, feas=True, obj=364]
INFO - 16:24:30: 10%|█ | 20/200 [00:00<00:03, 50.76 it/sec, feas=True, obj=338]
INFO - 16:24:30: 10%|█ | 21/200 [00:00<00:03, 50.86 it/sec, feas=True, obj=306]
INFO - 16:24:30: 11%|█ | 22/200 [00:00<00:03, 51.03 it/sec, feas=True, obj=272]
INFO - 16:24:30: 12%|█▏ | 23/200 [00:00<00:03, 51.32 it/sec, feas=True, obj=253]
INFO - 16:24:30: 12%|█▏ | 24/200 [00:00<00:03, 51.40 it/sec, feas=True, obj=244]
INFO - 16:24:30: 12%|█▎ | 25/200 [00:00<00:03, 51.61 it/sec, feas=True, obj=234]
INFO - 16:24:30: 13%|█▎ | 26/200 [00:00<00:03, 51.71 it/sec, feas=True, obj=224]
INFO - 16:24:30: 14%|█▎ | 27/200 [00:00<00:03, 51.89 it/sec, feas=True, obj=213]
INFO - 16:24:30: 14%|█▍ | 28/200 [00:00<00:03, 52.25 it/sec, feas=True, obj=207]
INFO - 16:24:30: 14%|█▍ | 29/200 [00:00<00:03, 52.51 it/sec, feas=True, obj=202]
INFO - 16:24:30: 15%|█▌ | 30/200 [00:00<00:03, 52.78 it/sec, feas=True, obj=197]
INFO - 16:24:30: 16%|█▌ | 31/200 [00:00<00:03, 53.04 it/sec, feas=True, obj=193]
INFO - 16:24:30: 16%|█▌ | 32/200 [00:00<00:03, 53.30 it/sec, feas=True, obj=190]
INFO - 16:24:30: 16%|█▋ | 33/200 [00:00<00:03, 53.56 it/sec, feas=True, obj=188]
INFO - 16:24:30: 17%|█▋ | 34/200 [00:00<00:03, 53.57 it/sec, feas=True, obj=186]
INFO - 16:24:30: 18%|█▊ | 35/200 [00:00<00:03, 53.76 it/sec, feas=True, obj=185]
INFO - 16:24:30: 18%|█▊ | 36/200 [00:00<00:03, 54.01 it/sec, feas=True, obj=184]
INFO - 16:24:30: 18%|█▊ | 37/200 [00:00<00:03, 54.15 it/sec, feas=True, obj=183]
INFO - 16:24:30: 19%|█▉ | 38/200 [00:00<00:02, 54.32 it/sec, feas=True, obj=182]
INFO - 16:24:30: 20%|█▉ | 39/200 [00:00<00:02, 54.53 it/sec, feas=True, obj=181]
INFO - 16:24:30: 20%|██ | 40/200 [00:00<00:02, 54.70 it/sec, feas=True, obj=179]
INFO - 16:24:30: 20%|██ | 41/200 [00:00<00:02, 54.84 it/sec, feas=True, obj=177]
INFO - 16:24:30: 21%|██ | 42/200 [00:00<00:02, 54.92 it/sec, feas=True, obj=175]
INFO - 16:24:30: 22%|██▏ | 43/200 [00:00<00:02, 55.10 it/sec, feas=True, obj=174]
INFO - 16:24:30: 22%|██▏ | 44/200 [00:00<00:02, 55.14 it/sec, feas=True, obj=173]
INFO - 16:24:30: 22%|██▎ | 45/200 [00:00<00:02, 55.32 it/sec, feas=True, obj=172]
INFO - 16:24:30: 23%|██▎ | 46/200 [00:00<00:02, 55.52 it/sec, feas=True, obj=172]
INFO - 16:24:30: 24%|██▎ | 47/200 [00:00<00:02, 55.68 it/sec, feas=True, obj=172]
INFO - 16:24:30: 24%|██▍ | 48/200 [00:00<00:02, 55.87 it/sec, feas=True, obj=172]
INFO - 16:24:30: 24%|██▍ | 49/200 [00:00<00:02, 56.05 it/sec, feas=True, obj=172]
INFO - 16:24:30: 25%|██▌ | 50/200 [00:00<00:02, 56.21 it/sec, feas=True, obj=172]
INFO - 16:24:30: 26%|██▌ | 51/200 [00:00<00:02, 56.32 it/sec, feas=True, obj=172]
INFO - 16:24:30: 26%|██▌ | 52/200 [00:00<00:02, 56.44 it/sec, feas=True, obj=172]
INFO - 16:24:30: 26%|██▋ | 53/200 [00:00<00:02, 56.57 it/sec, feas=True, obj=172]
INFO - 16:24:30: 27%|██▋ | 54/200 [00:00<00:02, 56.68 it/sec, feas=True, obj=172]
INFO - 16:24:30: 28%|██▊ | 55/200 [00:00<00:02, 56.80 it/sec, feas=True, obj=172]
INFO - 16:24:30: 28%|██▊ | 56/200 [00:00<00:02, 56.91 it/sec, feas=True, obj=172]
INFO - 16:24:31: 28%|██▊ | 57/200 [00:00<00:02, 57.04 it/sec, feas=True, obj=172]
INFO - 16:24:31: 29%|██▉ | 58/200 [00:01<00:02, 57.14 it/sec, feas=True, obj=171]
INFO - 16:24:31: 30%|██▉ | 59/200 [00:01<00:02, 57.26 it/sec, feas=True, obj=171]
INFO - 16:24:31: 30%|███ | 60/200 [00:01<00:02, 57.45 it/sec, feas=True, obj=171]
INFO - 16:24:31: 30%|███ | 61/200 [00:01<00:02, 57.59 it/sec, feas=True, obj=171]
INFO - 16:24:31: 31%|███ | 62/200 [00:01<00:02, 57.70 it/sec, feas=True, obj=171]
INFO - 16:24:31: 32%|███▏ | 63/200 [00:01<00:02, 57.81 it/sec, feas=True, obj=171]
INFO - 16:24:31: 32%|███▏ | 64/200 [00:01<00:02, 57.89 it/sec, feas=True, obj=171]
INFO - 16:24:31: 32%|███▎ | 65/200 [00:01<00:02, 57.96 it/sec, feas=True, obj=171]
INFO - 16:24:31: 33%|███▎ | 66/200 [00:01<00:02, 58.07 it/sec, feas=True, obj=171]
INFO - 16:24:31: 34%|███▎ | 67/200 [00:01<00:02, 58.18 it/sec, feas=True, obj=171]
INFO - 16:24:31: 34%|███▍ | 68/200 [00:01<00:02, 58.26 it/sec, feas=True, obj=171]
INFO - 16:24:31: 34%|███▍ | 69/200 [00:01<00:02, 58.35 it/sec, feas=True, obj=171]
INFO - 16:24:31: 35%|███▌ | 70/200 [00:01<00:02, 58.43 it/sec, feas=True, obj=171]
INFO - 16:24:31: 36%|███▌ | 71/200 [00:01<00:02, 58.46 it/sec, feas=True, obj=171]
INFO - 16:24:31: 36%|███▌ | 72/200 [00:01<00:02, 58.50 it/sec, feas=True, obj=171]
INFO - 16:24:31: 36%|███▋ | 73/200 [00:01<00:02, 58.55 it/sec, feas=True, obj=171]
INFO - 16:24:31: 37%|███▋ | 74/200 [00:01<00:02, 58.62 it/sec, feas=True, obj=171]
INFO - 16:24:31: 38%|███▊ | 75/200 [00:01<00:02, 58.66 it/sec, feas=True, obj=171]
INFO - 16:24:31: 38%|███▊ | 76/200 [00:01<00:02, 58.72 it/sec, feas=True, obj=171]
INFO - 16:24:31: 38%|███▊ | 77/200 [00:01<00:02, 58.80 it/sec, feas=True, obj=171]
INFO - 16:24:31: 39%|███▉ | 78/200 [00:01<00:02, 58.86 it/sec, feas=True, obj=171]
INFO - 16:24:31: 40%|███▉ | 79/200 [00:01<00:02, 58.99 it/sec, feas=True, obj=171]
INFO - 16:24:31: 40%|████ | 80/200 [00:01<00:02, 59.07 it/sec, feas=True, obj=171]
INFO - 16:24:31: 40%|████ | 81/200 [00:01<00:02, 59.16 it/sec, feas=True, obj=171]
INFO - 16:24:31: 41%|████ | 82/200 [00:01<00:01, 59.23 it/sec, feas=True, obj=171]
INFO - 16:24:31: 42%|████▏ | 83/200 [00:01<00:01, 59.29 it/sec, feas=True, obj=171]
INFO - 16:24:31: 42%|████▏ | 84/200 [00:01<00:01, 59.35 it/sec, feas=True, obj=171]
INFO - 16:24:31: 42%|████▎ | 85/200 [00:01<00:01, 59.39 it/sec, feas=True, obj=171]
INFO - 16:24:31: 43%|████▎ | 86/200 [00:01<00:01, 59.43 it/sec, feas=True, obj=171]
INFO - 16:24:31: 44%|████▎ | 87/200 [00:01<00:01, 59.45 it/sec, feas=True, obj=171]
INFO - 16:24:31: 44%|████▍ | 88/200 [00:01<00:01, 59.48 it/sec, feas=True, obj=171]
INFO - 16:24:31: 44%|████▍ | 89/200 [00:01<00:01, 59.53 it/sec, feas=True, obj=171]
INFO - 16:24:31: 45%|████▌ | 90/200 [00:01<00:01, 59.59 it/sec, feas=True, obj=171]
INFO - 16:24:31: 46%|████▌ | 91/200 [00:01<00:01, 59.66 it/sec, feas=True, obj=171]
INFO - 16:24:31: 46%|████▌ | 92/200 [00:01<00:01, 59.73 it/sec, feas=True, obj=171]
INFO - 16:24:31: 46%|████▋ | 93/200 [00:01<00:01, 59.80 it/sec, feas=True, obj=171]
INFO - 16:24:31: 47%|████▋ | 94/200 [00:01<00:01, 59.86 it/sec, feas=True, obj=171]
INFO - 16:24:31: 48%|████▊ | 95/200 [00:01<00:01, 59.93 it/sec, feas=True, obj=171]
INFO - 16:24:31: 48%|████▊ | 96/200 [00:01<00:01, 59.99 it/sec, feas=True, obj=171]
INFO - 16:24:31: 48%|████▊ | 97/200 [00:01<00:01, 60.03 it/sec, feas=True, obj=171]
INFO - 16:24:31: 49%|████▉ | 98/200 [00:01<00:01, 59.95 it/sec, feas=True, obj=171]
INFO - 16:24:31: 50%|████▉ | 99/200 [00:01<00:01, 59.92 it/sec, feas=True, obj=171]
INFO - 16:24:31: 50%|█████ | 100/200 [00:01<00:01, 59.93 it/sec, feas=True, obj=171]
INFO - 16:24:31: 50%|█████ | 101/200 [00:01<00:01, 59.96 it/sec, feas=True, obj=171]
INFO - 16:24:31: 51%|█████ | 102/200 [00:01<00:01, 60.01 it/sec, feas=True, obj=171]
INFO - 16:24:31: 52%|█████▏ | 103/200 [00:01<00:01, 60.05 it/sec, feas=True, obj=171]
INFO - 16:24:31: 52%|█████▏ | 104/200 [00:01<00:01, 60.09 it/sec, feas=True, obj=171]
INFO - 16:24:31: 52%|█████▎ | 105/200 [00:01<00:01, 60.13 it/sec, feas=True, obj=171]
INFO - 16:24:31: 53%|█████▎ | 106/200 [00:01<00:01, 60.18 it/sec, feas=True, obj=171]
INFO - 16:24:31: 54%|█████▎ | 107/200 [00:01<00:01, 60.23 it/sec, feas=True, obj=171]
INFO - 16:24:31: 54%|█████▍ | 108/200 [00:01<00:01, 60.20 it/sec, feas=True, obj=171]
INFO - 16:24:31: 55%|█████▍ | 109/200 [00:01<00:01, 60.24 it/sec, feas=True, obj=171]
INFO - 16:24:31: 55%|█████▌ | 110/200 [00:01<00:01, 60.29 it/sec, feas=True, obj=171]
INFO - 16:24:31: 56%|█████▌ | 111/200 [00:01<00:01, 60.33 it/sec, feas=True, obj=171]
INFO - 16:24:31: 56%|█████▌ | 112/200 [00:01<00:01, 60.37 it/sec, feas=True, obj=171]
INFO - 16:24:31: 56%|█████▋ | 113/200 [00:01<00:01, 60.40 it/sec, feas=True, obj=171]
INFO - 16:24:31: 57%|█████▋ | 114/200 [00:01<00:01, 60.43 it/sec, feas=True, obj=171]
INFO - 16:24:31: 57%|█████▊ | 115/200 [00:01<00:01, 60.51 it/sec, feas=True, obj=173]
INFO - 16:24:31: 58%|█████▊ | 116/200 [00:01<00:01, 60.55 it/sec, feas=True, obj=173]
INFO - 16:24:31: 58%|█████▊ | 117/200 [00:01<00:01, 60.60 it/sec, feas=True, obj=172]
INFO - 16:24:31: 59%|█████▉ | 118/200 [00:01<00:01, 60.65 it/sec, feas=True, obj=172]
INFO - 16:24:31: 60%|█████▉ | 119/200 [00:01<00:01, 60.66 it/sec, feas=True, obj=171]
INFO - 16:24:31: 60%|██████ | 120/200 [00:01<00:01, 60.69 it/sec, feas=True, obj=171]
INFO - 16:24:31: 60%|██████ | 121/200 [00:01<00:01, 60.72 it/sec, feas=True, obj=171]
INFO - 16:24:32: 61%|██████ | 122/200 [00:02<00:01, 60.76 it/sec, feas=True, obj=171]
INFO - 16:24:32: 62%|██████▏ | 123/200 [00:02<00:01, 60.79 it/sec, feas=True, obj=171]
INFO - 16:24:32: 62%|██████▏ | 124/200 [00:02<00:01, 60.81 it/sec, feas=True, obj=170]
INFO - 16:24:32: 62%|██████▎ | 125/200 [00:02<00:01, 60.83 it/sec, feas=True, obj=170]
INFO - 16:24:32: 63%|██████▎ | 126/200 [00:02<00:01, 60.85 it/sec, feas=True, obj=170]
INFO - 16:24:32: 64%|██████▎ | 127/200 [00:02<00:01, 60.87 it/sec, feas=True, obj=170]
INFO - 16:24:32: 64%|██████▍ | 128/200 [00:02<00:01, 60.88 it/sec, feas=True, obj=170]
INFO - 16:24:32: 64%|██████▍ | 129/200 [00:02<00:01, 60.89 it/sec, feas=True, obj=170]
INFO - 16:24:32: 65%|██████▌ | 130/200 [00:02<00:01, 60.92 it/sec, feas=True, obj=170]
INFO - 16:24:32: 66%|██████▌ | 131/200 [00:02<00:01, 60.95 it/sec, feas=True, obj=170]
INFO - 16:24:32: 66%|██████▌ | 132/200 [00:02<00:01, 60.99 it/sec, feas=True, obj=170]
INFO - 16:24:32: 66%|██████▋ | 133/200 [00:02<00:01, 61.01 it/sec, feas=True, obj=170]
INFO - 16:24:32: 67%|██████▋ | 134/200 [00:02<00:01, 61.03 it/sec, feas=True, obj=170]
INFO - 16:24:32: 68%|██████▊ | 135/200 [00:02<00:01, 61.07 it/sec, feas=True, obj=170]
INFO - 16:24:32: 68%|██████▊ | 136/200 [00:02<00:01, 61.11 it/sec, feas=True, obj=170]
INFO - 16:24:32: 68%|██████▊ | 137/200 [00:02<00:01, 61.14 it/sec, feas=True, obj=170]
INFO - 16:24:32: 69%|██████▉ | 138/200 [00:02<00:01, 61.16 it/sec, feas=True, obj=170]
INFO - 16:24:32: 70%|██████▉ | 139/200 [00:02<00:00, 61.19 it/sec, feas=True, obj=170]
INFO - 16:24:32: 70%|███████ | 140/200 [00:02<00:00, 61.21 it/sec, feas=True, obj=170]
INFO - 16:24:32: 70%|███████ | 141/200 [00:02<00:00, 61.26 it/sec, feas=True, obj=170]
INFO - 16:24:32: 71%|███████ | 142/200 [00:02<00:00, 61.29 it/sec, feas=True, obj=170]
INFO - 16:24:32: 72%|███████▏ | 143/200 [00:02<00:00, 61.31 it/sec, feas=True, obj=170]
INFO - 16:24:32: 72%|███████▏ | 144/200 [00:02<00:00, 61.35 it/sec, feas=True, obj=170]
INFO - 16:24:32: 72%|███████▎ | 145/200 [00:02<00:00, 61.38 it/sec, feas=True, obj=170]
INFO - 16:24:32: 73%|███████▎ | 146/200 [00:02<00:00, 61.41 it/sec, feas=True, obj=170]
INFO - 16:24:32: 74%|███████▎ | 147/200 [00:02<00:00, 61.42 it/sec, feas=True, obj=170]
INFO - 16:24:32: 74%|███████▍ | 148/200 [00:02<00:00, 61.45 it/sec, feas=True, obj=170]
INFO - 16:24:32: 74%|███████▍ | 149/200 [00:02<00:00, 61.50 it/sec, feas=True, obj=170]
INFO - 16:24:32: 75%|███████▌ | 150/200 [00:02<00:00, 61.53 it/sec, feas=True, obj=170]
INFO - 16:24:32: 76%|███████▌ | 151/200 [00:02<00:00, 61.54 it/sec, feas=True, obj=170]
INFO - 16:24:32: 76%|███████▌ | 152/200 [00:02<00:00, 61.56 it/sec, feas=True, obj=170]
INFO - 16:24:32: 76%|███████▋ | 153/200 [00:02<00:00, 61.58 it/sec, feas=True, obj=170]
INFO - 16:24:32: 77%|███████▋ | 154/200 [00:02<00:00, 61.60 it/sec, feas=True, obj=170]
INFO - 16:24:32: 78%|███████▊ | 155/200 [00:02<00:00, 61.63 it/sec, feas=True, obj=170]
INFO - 16:24:32: 78%|███████▊ | 156/200 [00:02<00:00, 61.67 it/sec, feas=True, obj=170]
INFO - 16:24:32: 78%|███████▊ | 157/200 [00:02<00:00, 61.71 it/sec, feas=True, obj=170]
INFO - 16:24:32: 79%|███████▉ | 158/200 [00:02<00:00, 61.75 it/sec, feas=True, obj=170]
INFO - 16:24:32: 80%|███████▉ | 159/200 [00:02<00:00, 61.78 it/sec, feas=True, obj=170]
INFO - 16:24:32: 80%|████████ | 160/200 [00:02<00:00, 61.81 it/sec, feas=True, obj=170]
INFO - 16:24:32: 80%|████████ | 161/200 [00:02<00:00, 61.85 it/sec, feas=True, obj=170]
INFO - 16:24:32: 81%|████████ | 162/200 [00:02<00:00, 61.86 it/sec, feas=True, obj=170]
INFO - 16:24:32: 82%|████████▏ | 163/200 [00:02<00:00, 61.82 it/sec, feas=True, obj=170]
INFO - 16:24:32: 82%|████████▏ | 164/200 [00:02<00:00, 61.83 it/sec, feas=True, obj=170]
INFO - 16:24:32: 82%|████████▎ | 165/200 [00:02<00:00, 61.84 it/sec, feas=True, obj=170]
INFO - 16:24:32: 83%|████████▎ | 166/200 [00:02<00:00, 61.86 it/sec, feas=True, obj=170]
INFO - 16:24:32: 84%|████████▎ | 167/200 [00:02<00:00, 61.88 it/sec, feas=True, obj=170]
INFO - 16:24:32: 84%|████████▍ | 168/200 [00:02<00:00, 61.91 it/sec, feas=True, obj=170]
INFO - 16:24:32: 84%|████████▍ | 169/200 [00:02<00:00, 61.95 it/sec, feas=True, obj=170]
INFO - 16:24:32: 85%|████████▌ | 170/200 [00:02<00:00, 61.99 it/sec, feas=True, obj=170]
INFO - 16:24:32: 86%|████████▌ | 171/200 [00:02<00:00, 62.02 it/sec, feas=True, obj=170]
INFO - 16:24:32: 86%|████████▌ | 172/200 [00:02<00:00, 62.04 it/sec, feas=True, obj=170]
INFO - 16:24:32: 86%|████████▋ | 173/200 [00:02<00:00, 62.06 it/sec, feas=True, obj=170]
INFO - 16:24:32: 87%|████████▋ | 174/200 [00:02<00:00, 62.03 it/sec, feas=True, obj=170]
INFO - 16:24:32: 88%|████████▊ | 175/200 [00:02<00:00, 62.06 it/sec, feas=True, obj=170]
INFO - 16:24:32: 88%|████████▊ | 176/200 [00:02<00:00, 62.08 it/sec, feas=True, obj=170]
INFO - 16:24:32: 88%|████████▊ | 177/200 [00:02<00:00, 62.11 it/sec, feas=True, obj=170]
INFO - 16:24:32: 89%|████████▉ | 178/200 [00:02<00:00, 62.14 it/sec, feas=True, obj=170]
INFO - 16:24:32: 90%|████████▉ | 179/200 [00:02<00:00, 62.19 it/sec, feas=True, obj=170]
INFO - 16:24:32: 90%|█████████ | 180/200 [00:02<00:00, 62.20 it/sec, feas=True, obj=170]
INFO - 16:24:32: 90%|█████████ | 181/200 [00:02<00:00, 62.23 it/sec, feas=True, obj=170]
INFO - 16:24:32: 91%|█████████ | 182/200 [00:02<00:00, 62.24 it/sec, feas=True, obj=170]
INFO - 16:24:32: 92%|█████████▏| 183/200 [00:02<00:00, 62.25 it/sec, feas=True, obj=170]
INFO - 16:24:32: 92%|█████████▏| 184/200 [00:02<00:00, 62.27 it/sec, feas=True, obj=170]
INFO - 16:24:32: 92%|█████████▎| 185/200 [00:02<00:00, 62.30 it/sec, feas=True, obj=170]
INFO - 16:24:32: 93%|█████████▎| 186/200 [00:02<00:00, 62.32 it/sec, feas=True, obj=170]
INFO - 16:24:33: 94%|█████████▎| 187/200 [00:02<00:00, 62.34 it/sec, feas=True, obj=170]
INFO - 16:24:33: 94%|█████████▍| 188/200 [00:03<00:00, 62.37 it/sec, feas=True, obj=170]
INFO - 16:24:33: 94%|█████████▍| 189/200 [00:03<00:00, 62.39 it/sec, feas=True, obj=170]
INFO - 16:24:33: 95%|█████████▌| 190/200 [00:03<00:00, 62.41 it/sec, feas=True, obj=170]
INFO - 16:24:33: 96%|█████████▌| 191/200 [00:03<00:00, 62.43 it/sec, feas=True, obj=170]
INFO - 16:24:33: 96%|█████████▌| 192/200 [00:03<00:00, 62.46 it/sec, feas=True, obj=170]
INFO - 16:24:33: 96%|█████████▋| 193/200 [00:03<00:00, 62.48 it/sec, feas=True, obj=170]
INFO - 16:24:33: 97%|█████████▋| 194/200 [00:03<00:00, 62.50 it/sec, feas=True, obj=170]
INFO - 16:24:33: 98%|█████████▊| 195/200 [00:03<00:00, 62.54 it/sec, feas=True, obj=170]
INFO - 16:24:33: 98%|█████████▊| 196/200 [00:03<00:00, 62.55 it/sec, feas=True, obj=170]
INFO - 16:24:33: 98%|█████████▊| 197/200 [00:03<00:00, 62.58 it/sec, feas=True, obj=170]
INFO - 16:24:33: 99%|█████████▉| 198/200 [00:03<00:00, 62.62 it/sec, feas=True, obj=170]
INFO - 16:24:33: 100%|█████████▉| 199/200 [00:03<00:00, 62.64 it/sec, feas=True, obj=170]
INFO - 16:24:33: 100%|██████████| 200/200 [00:03<00:00, 62.67 it/sec, feas=True, obj=170]
INFO - 16:24:33: Optimization result:
INFO - 16:24:33: Optimizer info:
INFO - 16:24:33: Status: None
INFO - 16:24:33: Message: Maximum number of iterations reached. GEMSEO stopped the driver.
INFO - 16:24:33: Solution:
INFO - 16:24:33: The solution is feasible.
INFO - 16:24:33: Objective: 169.89100281948836
INFO - 16:24:33: Standardized constraints:
INFO - 16:24:33: [volume fraction-0.3] = 6.224782465036327e-07
INFO - 16:24:33: *** End MDOScenario execution ***
Results#
Post-process the optimization history:
scenario.post_process(
post_name="BasicHistory", variable_names=["compliance"], show=True, save=False
)
<gemseo.post.basic_history.BasicHistory object at 0x72a4d8ac2360>
Plot the solution
scenario.post_process(post_name="TopologyView", n_x=n_x, n_y=n_y, show=True, save=False)
<gemseo.post.topology_view.TopologyView object at 0x72a4f3501850>
Total running time of the script: (0 minutes 4.121 seconds)
