Self-Organizing Map

In this example, we illustrate the use of the SOM plot on the Sobieski’s SSBJ problem.

from __future__ import annotations

from gemseo.api import configure_logger
from gemseo.api import create_discipline
from gemseo.api import create_scenario
from gemseo.problems.sobieski.core.problem import SobieskiProblem
from matplotlib import pyplot as plt

Import

The first step is to import some functions from the API and a method to get the design space.

configure_logger()
<RootLogger root (INFO)>

Description

The SOM post-processing performs a Self Organizing Map clustering on the optimization history. A SOM is a 2D representation of a design of experiments which requires dimensionality reduction since it may be in a very high dimension.

A SOM is built by using an unsupervised artificial neural network [KSH01]. A map of size n_x.n_y is generated, where n_x is the number of neurons in the \(x\) direction and n_y is the number of neurons in the \(y\) direction. The design space (whatever the dimension) is reduced to a 2D representation based on n_x.n_y neurons. Samples are clustered to a neuron when their design variables are close in terms of their L2 norm. A neuron is always located at the same place on a map. Each neuron is colored according to the average value for a given criterion. This helps to qualitatively analyze whether parts of the design space are good according to some criteria and not for others, and where compromises should be made. A white neuron has no sample associated with it: not enough evaluations were provided to train the SOM.

SOM’s provide a qualitative view of the objective function, the constraints, and of their relative behaviors.

Create disciplines

At this point, we instantiate the disciplines of Sobieski’s SSBJ problem: Propulsion, Aerodynamics, Structure and Mission

disciplines = create_discipline(
    [
        "SobieskiPropulsion",
        "SobieskiAerodynamics",
        "SobieskiStructure",
        "SobieskiMission",
    ]
)

Create design space

We also read the design space from the SobieskiProblem.

design_space = SobieskiProblem().design_space

Create and execute scenario

The next step is to build an MDO scenario in order to maximize the range, encoded ‘y_4’, with respect to the design parameters, while satisfying the inequality constraints ‘g_1’, ‘g_2’ and ‘g_3’. We can use the MDF formulation, the Monte Carlo DOE algorithm and 30 samples.

scenario = create_scenario(
    disciplines,
    formulation="MDF",
    objective_name="y_4",
    maximize_objective=True,
    design_space=design_space,
    scenario_type="DOE",
)
scenario.set_differentiation_method("user")
for constraint in ["g_1", "g_2", "g_3"]:
    scenario.add_constraint(constraint, "ineq")
scenario.execute({"algo": "OT_MONTE_CARLO", "n_samples": 30})
    INFO - 14:43:56:
    INFO - 14:43:56: *** Start DOEScenario execution ***
    INFO - 14:43:56: DOEScenario
    INFO - 14:43:56:    Disciplines: SobieskiAerodynamics SobieskiMission SobieskiPropulsion SobieskiStructure
    INFO - 14:43:56:    MDO formulation: MDF
    INFO - 14:43:56: Optimization problem:
    INFO - 14:43:56:    minimize -y_4(x_shared, x_1, x_2, x_3)
    INFO - 14:43:56:    with respect to x_1, x_2, x_3, x_shared
    INFO - 14:43:56:    subject to constraints:
    INFO - 14:43:56:       g_1(x_shared, x_1, x_2, x_3) <= 0.0
    INFO - 14:43:56:       g_2(x_shared, x_1, x_2, x_3) <= 0.0
    INFO - 14:43:56:       g_3(x_shared, x_1, x_2, x_3) <= 0.0
    INFO - 14:43:56:    over the design space:
    INFO - 14:43:56:    +-------------+-------------+-------+-------------+-------+
    INFO - 14:43:56:    | name        | lower_bound | value | upper_bound | type  |
    INFO - 14:43:56:    +-------------+-------------+-------+-------------+-------+
    INFO - 14:43:56:    | x_shared[0] |     0.01    |  0.05 |     0.09    | float |
    INFO - 14:43:56:    | x_shared[1] |    30000    | 45000 |    60000    | float |
    INFO - 14:43:56:    | x_shared[2] |     1.4     |  1.6  |     1.8     | float |
    INFO - 14:43:56:    | x_shared[3] |     2.5     |  5.5  |     8.5     | float |
    INFO - 14:43:56:    | x_shared[4] |      40     |   55  |      70     | float |
    INFO - 14:43:56:    | x_shared[5] |     500     |  1000 |     1500    | float |
    INFO - 14:43:56:    | x_1[0]      |     0.1     |  0.25 |     0.4     | float |
    INFO - 14:43:56:    | x_1[1]      |     0.75    |   1   |     1.25    | float |
    INFO - 14:43:56:    | x_2         |     0.75    |   1   |     1.25    | float |
    INFO - 14:43:56:    | x_3         |     0.1     |  0.5  |      1      | float |
    INFO - 14:43:56:    +-------------+-------------+-------+-------------+-------+
    INFO - 14:43:56: Solving optimization problem with algorithm OT_MONTE_CARLO:
    INFO - 14:43:56: ...   0%|          | 0/30 [00:00<?, ?it]
    INFO - 14:43:56: ...   3%|▎         | 1/30 [00:00<00:00, 277.26 it/sec, obj=-166]
    INFO - 14:43:56: ...  13%|█▎        | 4/30 [00:00<00:00, 131.34 it/sec, obj=-384]
    INFO - 14:43:56: ...  23%|██▎       | 7/30 [00:00<00:00, 86.17 it/sec, obj=-630]
    INFO - 14:43:57: ...  33%|███▎      | 10/30 [00:00<00:00, 61.61 it/sec, obj=-621]
    INFO - 14:43:57: ...  43%|████▎     | 13/30 [00:00<00:00, 45.45 it/sec, obj=-257]
    INFO - 14:43:57: ...  53%|█████▎    | 16/30 [00:00<00:00, 36.50 it/sec, obj=-344]
    INFO - 14:43:57: ...  60%|██████    | 18/30 [00:00<00:00, 32.13 it/sec, obj=-253]
    INFO - 14:43:57: ...  67%|██████▋   | 20/30 [00:01<00:00, 28.83 it/sec, obj=-1.07e+3]
    INFO - 14:43:57: ...  77%|███████▋  | 23/30 [00:01<00:00, 25.28 it/sec, obj=-586]
    INFO - 14:43:57: ...  87%|████████▋ | 26/30 [00:01<00:00, 22.77 it/sec, obj=-406]
    INFO - 14:43:58: ...  97%|█████████▋| 29/30 [00:01<00:00, 20.68 it/sec, obj=-423]
    INFO - 14:43:58: ... 100%|██████████| 30/30 [00:01<00:00, 20.02 it/sec, obj=-664]
    INFO - 14:43:58: Optimization result:
    INFO - 14:43:58:    Optimizer info:
    INFO - 14:43:58:       Status: None
    INFO - 14:43:58:       Message: None
    INFO - 14:43:58:       Number of calls to the objective function by the optimizer: 30
    INFO - 14:43:58:    Solution:
    INFO - 14:43:58:       The solution is feasible.
    INFO - 14:43:58:       Objective: -367.45739115001027
    INFO - 14:43:58:       Standardized constraints:
    INFO - 14:43:58:          g_1 = [-0.02478574 -0.00310924 -0.00855146 -0.01702654 -0.02484732 -0.04764585
    INFO - 14:43:58:  -0.19235415]
    INFO - 14:43:58:          g_2 = -0.09000000000000008
    INFO - 14:43:58:          g_3 = [-0.98722984 -0.01277016 -0.60760341 -0.0557087 ]
    INFO - 14:43:58:       Design space:
    INFO - 14:43:58:       +-------------+-------------+---------------------+-------------+-------+
    INFO - 14:43:58:       | name        | lower_bound |        value        | upper_bound | type  |
    INFO - 14:43:58:       +-------------+-------------+---------------------+-------------+-------+
    INFO - 14:43:58:       | x_shared[0] |     0.01    | 0.01230934749207792 |     0.09    | float |
    INFO - 14:43:58:       | x_shared[1] |    30000    |  43456.87364611478  |    60000    | float |
    INFO - 14:43:58:       | x_shared[2] |     1.4     |  1.731884935123487  |     1.8     | float |
    INFO - 14:43:58:       | x_shared[3] |     2.5     |  3.894765253193514  |     8.5     | float |
    INFO - 14:43:58:       | x_shared[4] |      40     |  57.92631048228255  |      70     | float |
    INFO - 14:43:58:       | x_shared[5] |     500     |  520.4048463450415  |     1500    | float |
    INFO - 14:43:58:       | x_1[0]      |     0.1     |  0.3994784918586811 |     0.4     | float |
    INFO - 14:43:58:       | x_1[1]      |     0.75    |  0.9500312867674923 |     1.25    | float |
    INFO - 14:43:58:       | x_2         |     0.75    |  1.205851870260564  |     1.25    | float |
    INFO - 14:43:58:       | x_3         |     0.1     |  0.2108042391973412 |      1      | float |
    INFO - 14:43:58:       +-------------+-------------+---------------------+-------------+-------+
    INFO - 14:43:58: *** End DOEScenario execution (time: 0:00:01.513509) ***

{'eval_jac': False, 'algo': 'OT_MONTE_CARLO', 'n_samples': 30}

Post-process scenario

Lastly, we post-process the scenario by means of the SOM plot which performs a self organizing map clustering on optimization history.

Tip

Each post-processing method requires different inputs and offers a variety of customization options. Use the API function get_post_processing_options_schema() to print a table with the options for any post-processing algorithm. Or refer to our dedicated page: Post-processing algorithms.

scenario.post_process("SOM", save=False, show=False)
# Workaround for HTML rendering, instead of ``show=True``
plt.show()

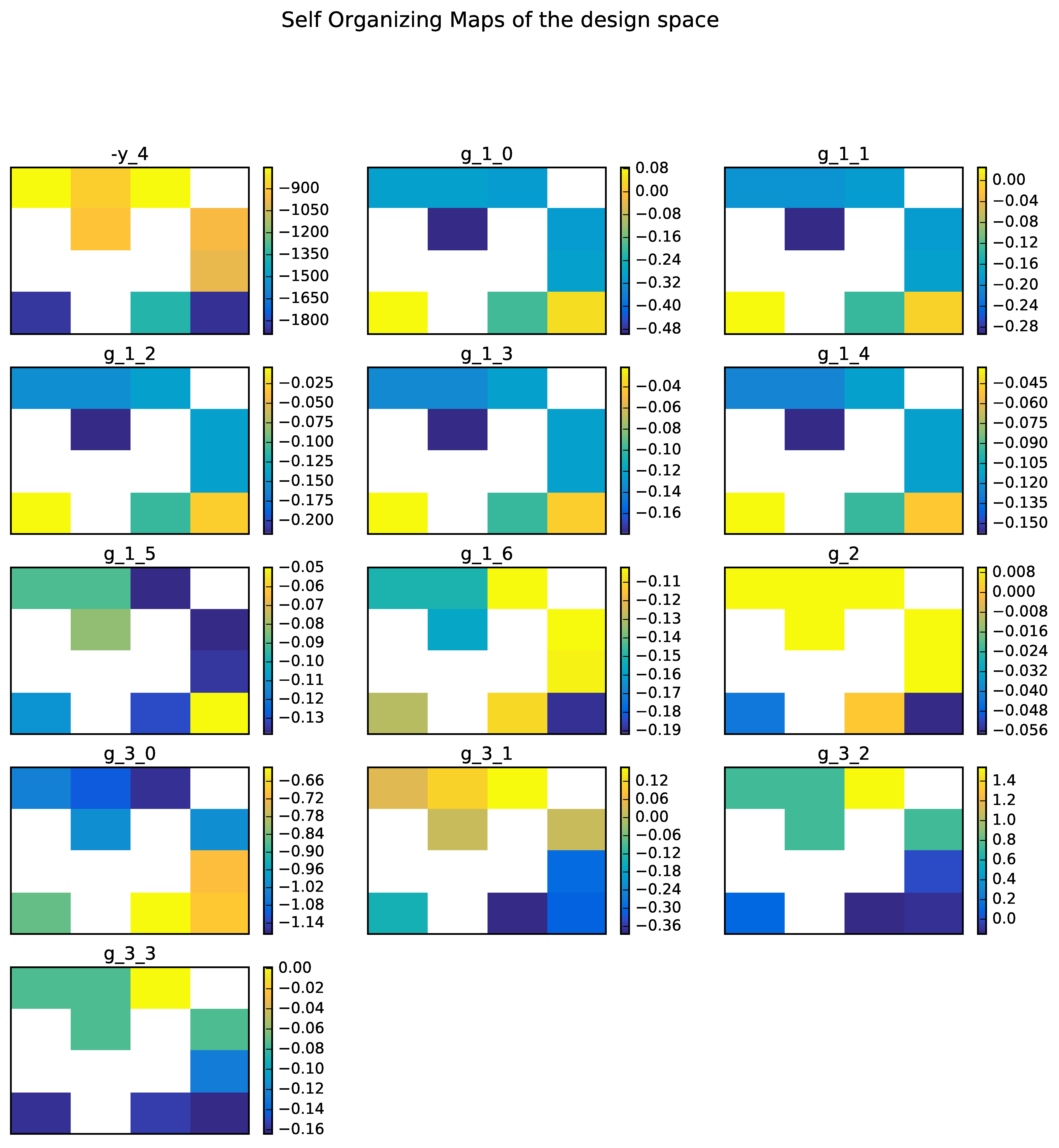

Self Organizing Maps of the design space, -y_4, g_1_0, g_1_1, g_1_2, g_1_3, g_1_4, g_1_5, g_1_6, g_2, g_3_0, g_3_1, g_3_2, g_3_3
INFO - 14:43:58: Building Self Organizing Map from optimization history:
INFO - 14:43:58:     Number of neurons in x direction = 4
INFO - 14:43:58:     Number of neurons in y direction = 4

Figure SOM example on the Sobieski problem. illustrates another SOM on the Sobieski use case. The optimization method is a (costly) derivative free algorithm (NLOPT_COBYLA), indeed all the relevant information for the optimization is obtained at the cost of numerous evaluations of the functions. For more details, please read the paper by [KJO+06] on wing MDO post-processing using SOM.

../../_images/MDOScenario_SOM_v100.png

SOM example on the Sobieski problem.

A DOE may also be a good way to produce SOM maps. Figure SOM example on the Sobieski problem with a 10 000 samples DOE. shows an example with 10000 points on the same test case. This produces more relevant SOM plots.

../../_images/som_fine.png

SOM example on the Sobieski problem with a 10 000 samples DOE.

Total running time of the script: ( 0 minutes 2.513 seconds)
